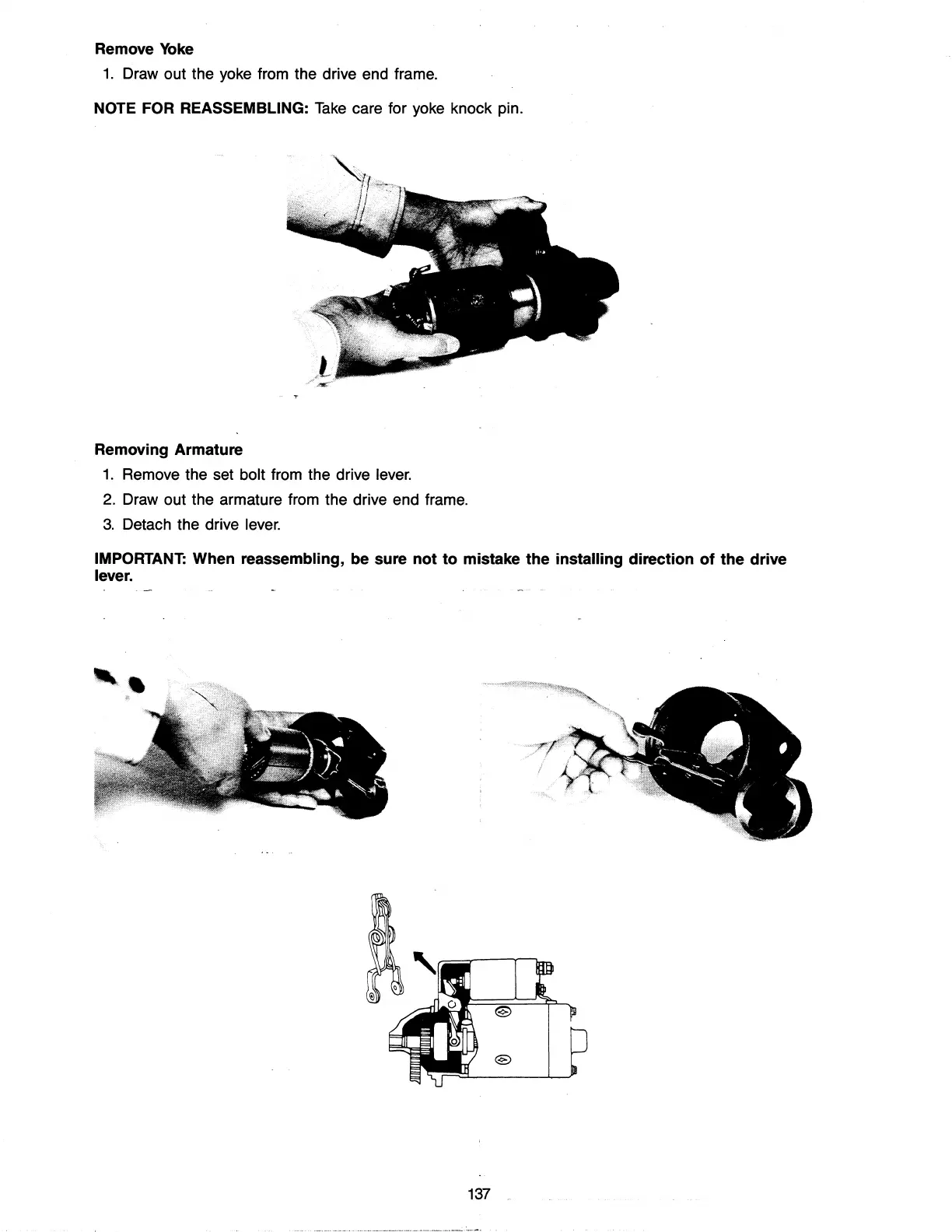

Remove Yoke
1. Draw out the yoke from the drive end frame.
NOTE FOR REASSEMBLING: Take care for yoke knock pin.
Removing Armature
1. Remove the set bolt from the drive lever.
2. Draw out the armature from the drive end frame.
3. Detach the drive lever.
IMPORTANT: When reassembling, be sure not to mistake the installing direction of the drive
lever.
137
