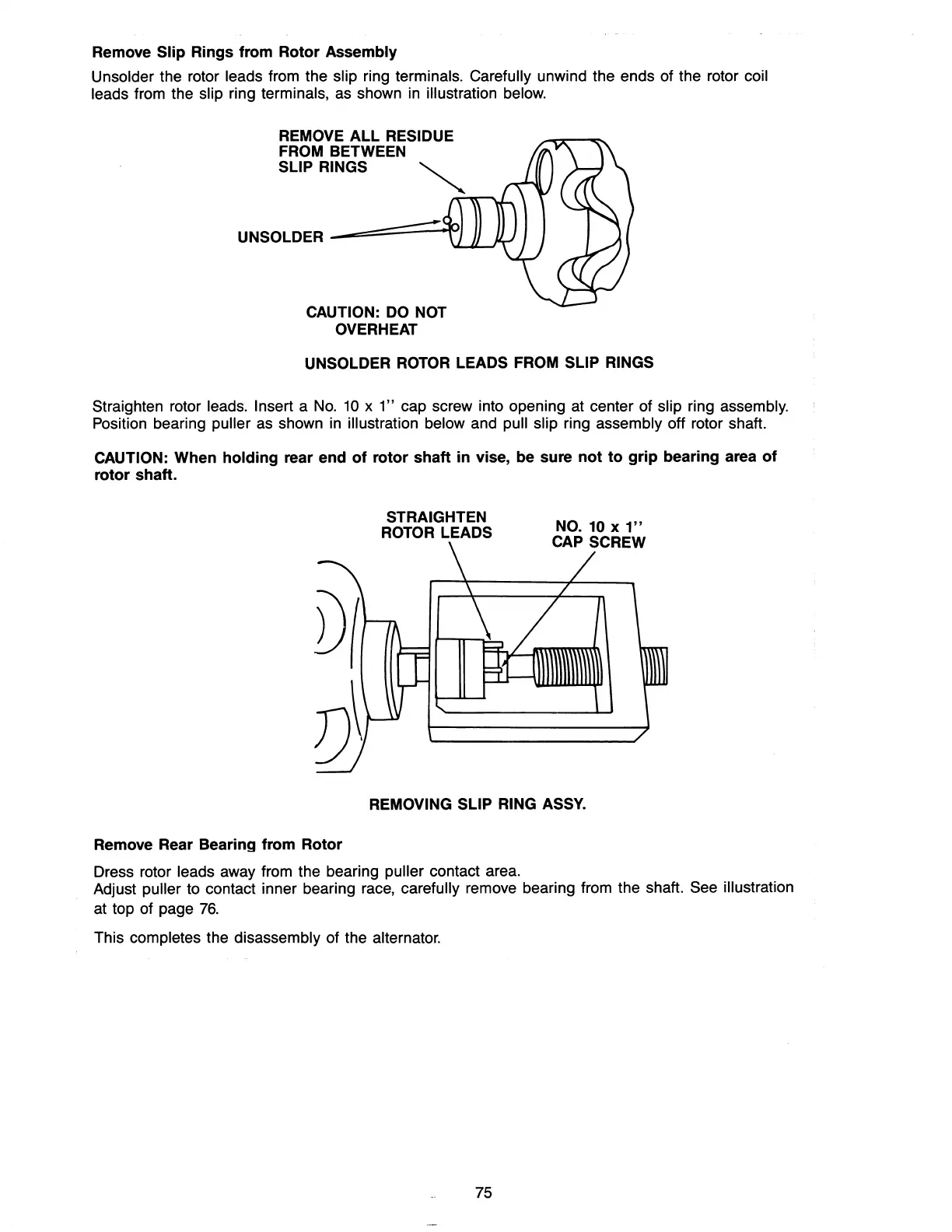

Remove Slip Rings from Rotor Assembly
Unsolder the rotor leads from the slip ring terminals. Carefully unwind the ends of the rotor coil
leads from the slip ring terminals,
as
shown
in
illustration below.
REMOVE
ALL RESIDUE
FROM
BETWEEN
SLIP RINGS
UNSOLDER
-"==~-r:J
II
I"T"
CAUTION:
DO
NOT
OVERHEAT
UNSOLDER
ROTOR
LEADS FROM SLIP RINGS
Straighten rotor leads. Insert a
No.
10
x
1"
cap screw into opening
at
center of slip ring assembly.
Position bearing puller
as
shown
in
illustration below and pull slip ring assembly off rotor shaft.
CAUTION: When holding rear end
of
rotor
shaft
in
vise, be sure
not
to
grip
bearing area
of
rotor shaft.
Remove Rear Bearing from Rotor
STRAIGHTEN
ROTOR
LEADS
REMOVING SLIP RING
ASSY.
Dress rotor leads away from the bearing puller contact area.
Adjust puller to contact inner bearing
race,
carefully remove bearing from the shaft. See illustration
at top of page
76.
This completes the disassembly of the alternator.
75
