DRAIN SYSTEM
The washer can be installed using the stand-
pipe drain system (floor or wall), the laundry
tub drain system or the floor drain system.
Select the drain hose installation method you
need. See “Tools and Parts,” page 2-1.

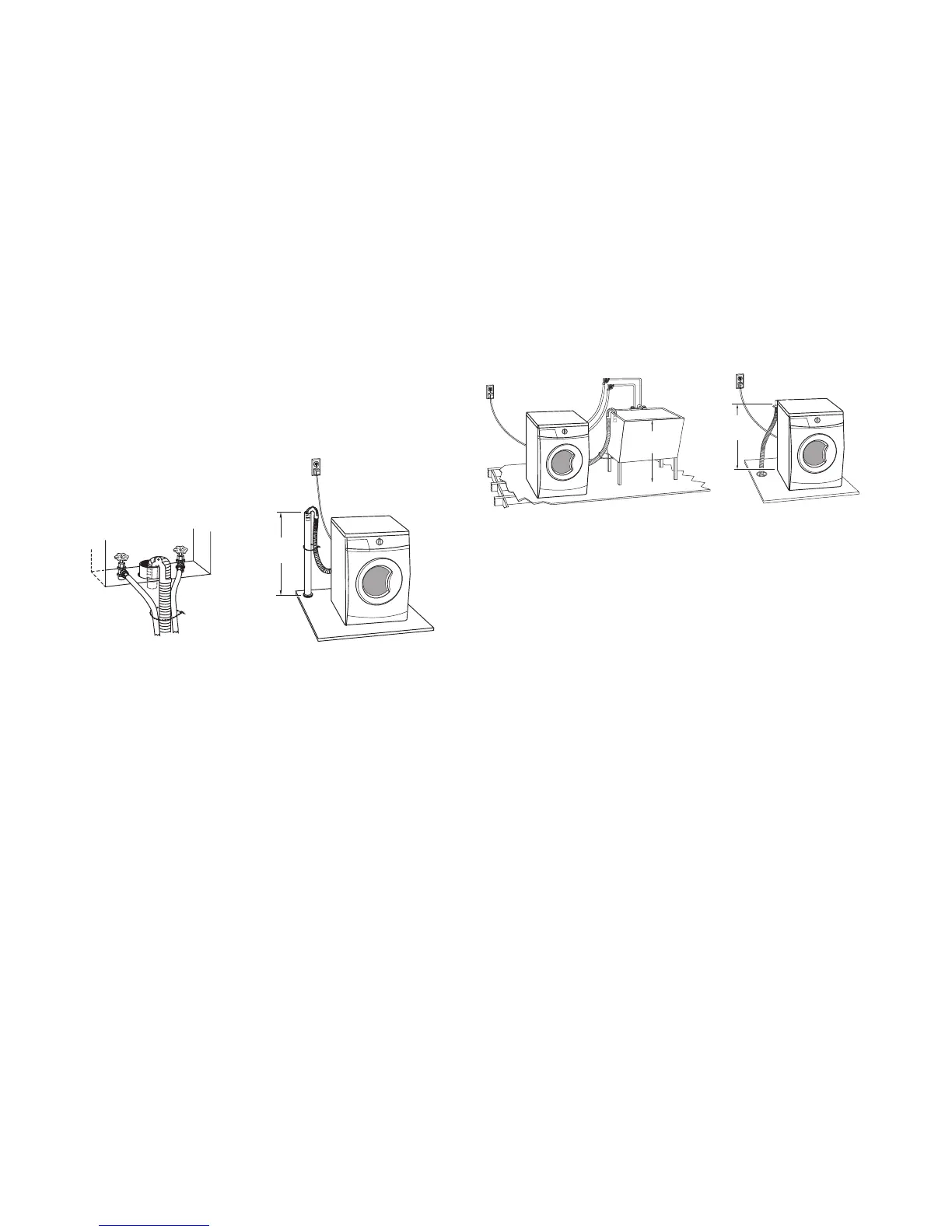

Standpipe drain system - wall or floor
(views A & B)
The standpipe drain requires a minimum
diameter standpipe of 2˝ (5 cm). The mini-
mum carry-away capacity can be no less than
17 gal. (64 L) per minute.
The top of the standpipe must be at least 30˝
(76.2 cm) high and no higher than 55˝ (1.4 m)
from the bottom of the washer.
Laundry tub drain system (view C)
The laundry tub needs a minimum 20 gal.
(76 L) capacity. The top of the laundry tub must
be at least 30˝ (76.2 cm) above the floor.
Floor drain system (view D)
The floor drain system requires a siphon break
that may be purchased separately. See “Tools
and Parts,” page 2-1.
The siphon break must be a minimum of 26˝
(66 cm) from the bottom of the washer. Addi-
tional hoses might be needed.
30" min.
(76.2 cm)
A
B
DC
30" min.
(76.2 cm)
26" min.
(66 cm)

Whirlpool WFC7500VW0 Specifications

General

Style	Front-Loading
Color	White
Washer Capacity	2.3 cu ft
Dryer Capactity	-
Max Spin Speed	1200 RPM
Spin Speeds	2
Spin Class	B
Number of Cycles	11
Cycle Selections	Spin + Drain
Wash	Silk
Options	-
Hours	-
Noise level	-
Temperature Selections	Tap Cold (All Cold Rinses)
Energy Class	-
Annual Energy Consumption	64 kWh
Annual Water Consumption	-
Water Consumption Per Cycle	-
Voltage	120V
Frequency	60Hz
Current	15 A

Weight and Dimensions

Depth	33 1/2 in
Height	33 1/2 in
Width	23 1/2 in
Net Weight	-
