Whirlpool WFC7500VW0 - Removing the Console,The Touchpad;Led Assembly and Central Control Unit

4-2
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the three hex-head screws from
the top cover of the washer.
4. Pull back on the cover and release the
cover from the slots in the unit, then lift
the cover off the unit.
5. To remove the console:
a) Pull the detergent dispenser drawer
out as far as it will go, then press down
on the release tab, and remove the
drawer from the unit.
WARNING
REMOVING THE CONSOLE, THE TOUCHPAD/LED
ASSEMBLY AND CENTRAL CONTROL UNIT

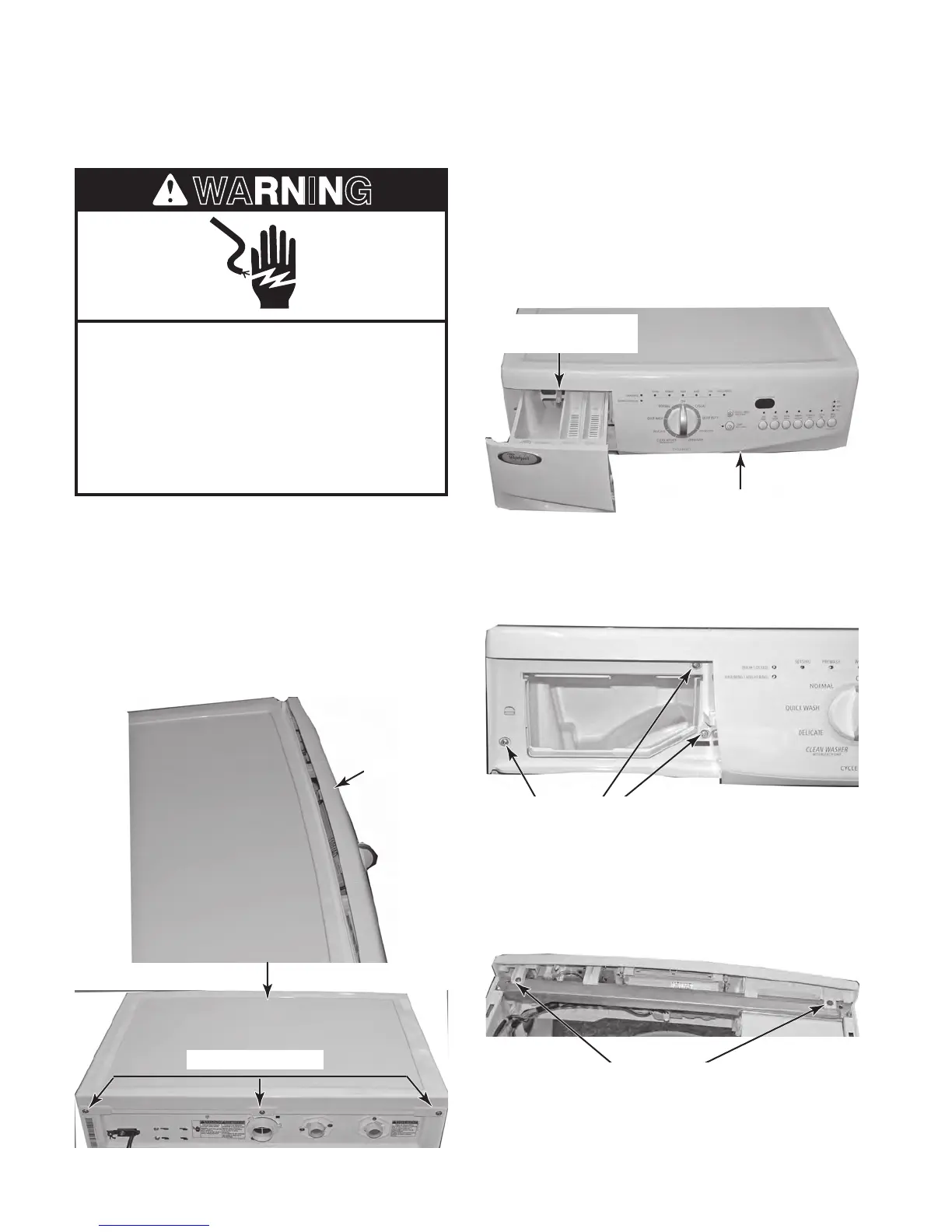

Console
Top Cover Screws
c) Remove two screws from the top edge
of the console.
b) Remove three screws from the re-
cessed holes.
Dispenser Drawer
Release Tab
Console Screws
Console Screws
Console
