4-23
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Pull the washer away from the wall.
4. Remove the detergent dispenser assem-
bly (see page 4-8 for the procedure).
5. Loosen the clamp and remove the main
water feed tube from the detergent dis-
penser.
6. Pull the free end of the main water feed
tube from the tub opening.
REASSEMBLY NOTE: When you reconnect
the water feed tube, align the arrow on the tube
with the line on the detergent dispenser.

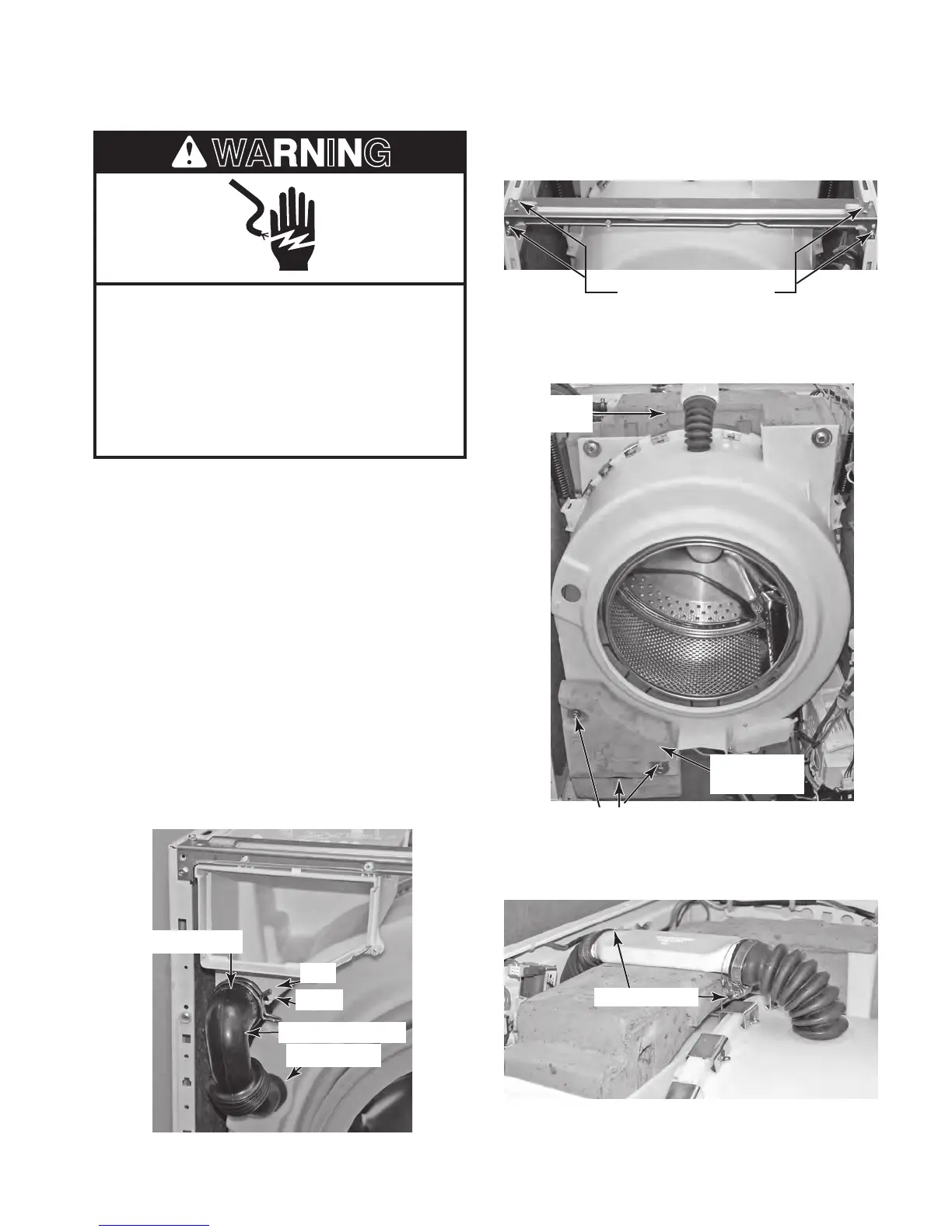

REMOVING THE TUB AND BASKET
7. Remove the four hex-head screws from
the front frame and remove the frame.
Tube To Dispenser
Water Feed Tube
Tube To Tub
8. Remove the three 13mm bolts from the
bottom front weight, then remove the
weight from the washer.
Front Frame Screws
Top Rear
Weight
Bottom Front
Weight
Line
Arrow
13mm Bolts
Continued on the next page.
9. Remove hose clamps from top vent hose
on each side of plastic ridgid vent.
Hose Clamps
To Next Page
