Whirlpool WFC7500VW0 - Component Access; Component Locations

4-1
COMPONENT ACCESS
COMPONENT LOCATIONS
This section instructs you on how to service each component inside the 2008 24" Front-Loading
Automatic Washer. The components and their locations are shown below.

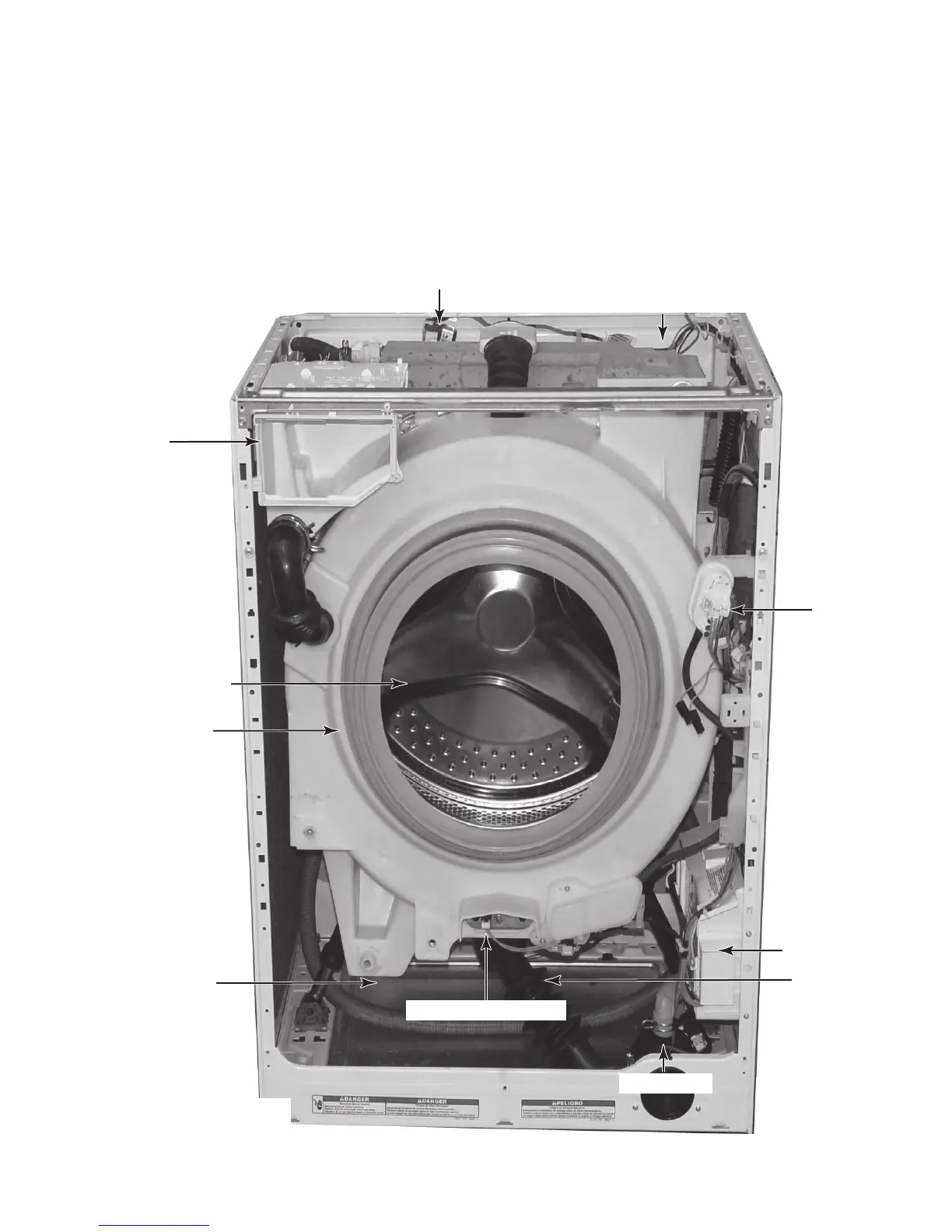

Line Filter
Water Inlet Valves
Tub Assembly
Basket
Drive Motor
Motor
Control Unit
ECO Valve
Pressure
Switch
Detergent
Dispenser
Not Shown: Console,
Touchpad/LED Assembly,
& Door Switch Assembly
Drain Pump
Temperature Sensor
