5-8
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.

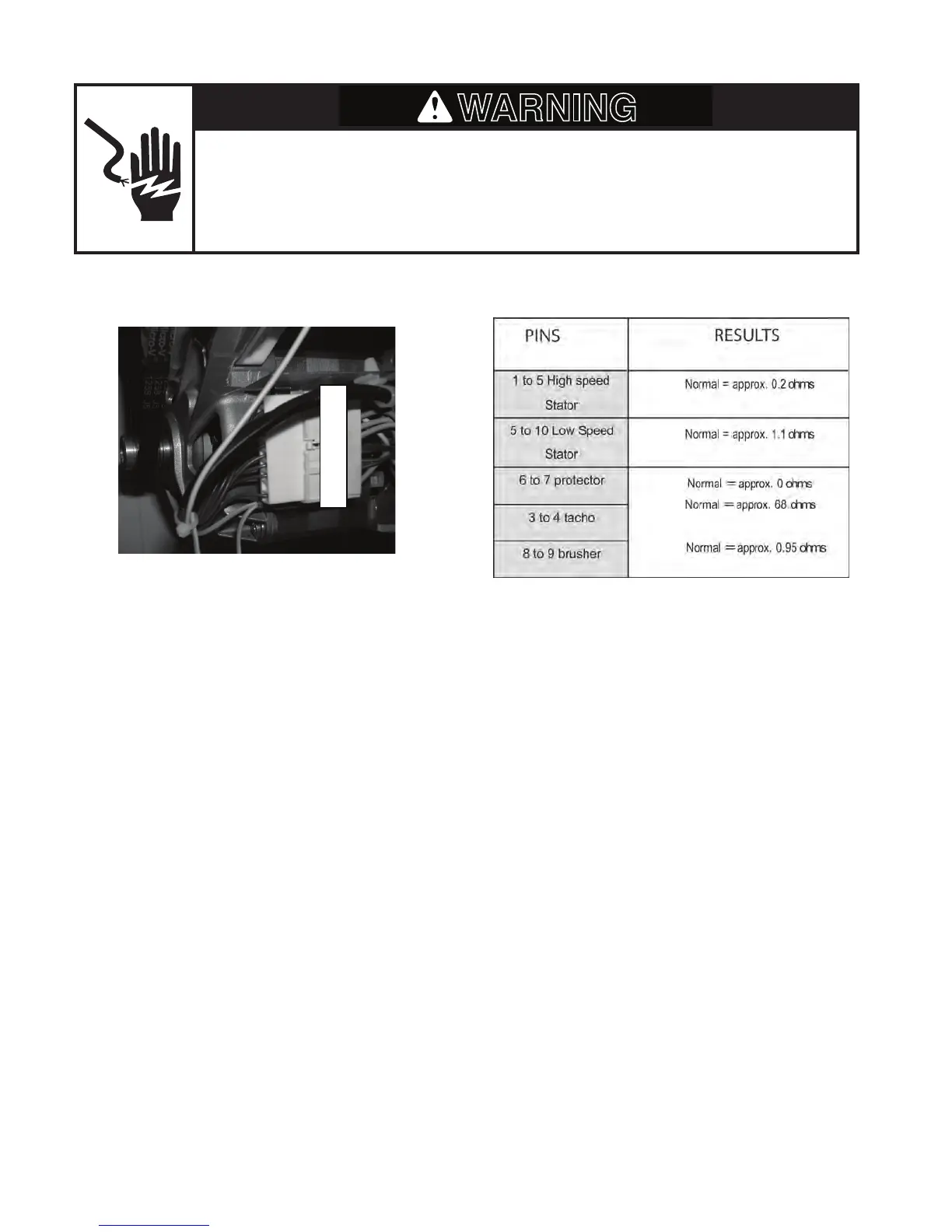

DRIVE MOTOR
Refer to page 4-23 for the procedure for ac-
cessing the drive motor.
1. Unplug washer or disconnect power.
2. Disconnect the connector from the drive
motor.
3. Set the ohmmeter to the R X 1 scale.
4. Touch the ohmmeter test leads to the
following motor pins. For each measure-
ment, use the following table.
