Whirlpool WFC7500VW0 - QUICK DIAGNOSTIC TEST ACTIONS

6-11
QUICK DIAGNOSTICS TEST
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
WARNING
NOTES:
To cancel out of this mode rotate the selector knob. (This exits you out of the program.)•
Press “CANCEL/DRAIN” button 2 times can advance to the next step of the procedure.•
If the starting procedure fails, switch the knob and back to the CLEAN WASH cycle, the •
repeat the starting procedure.

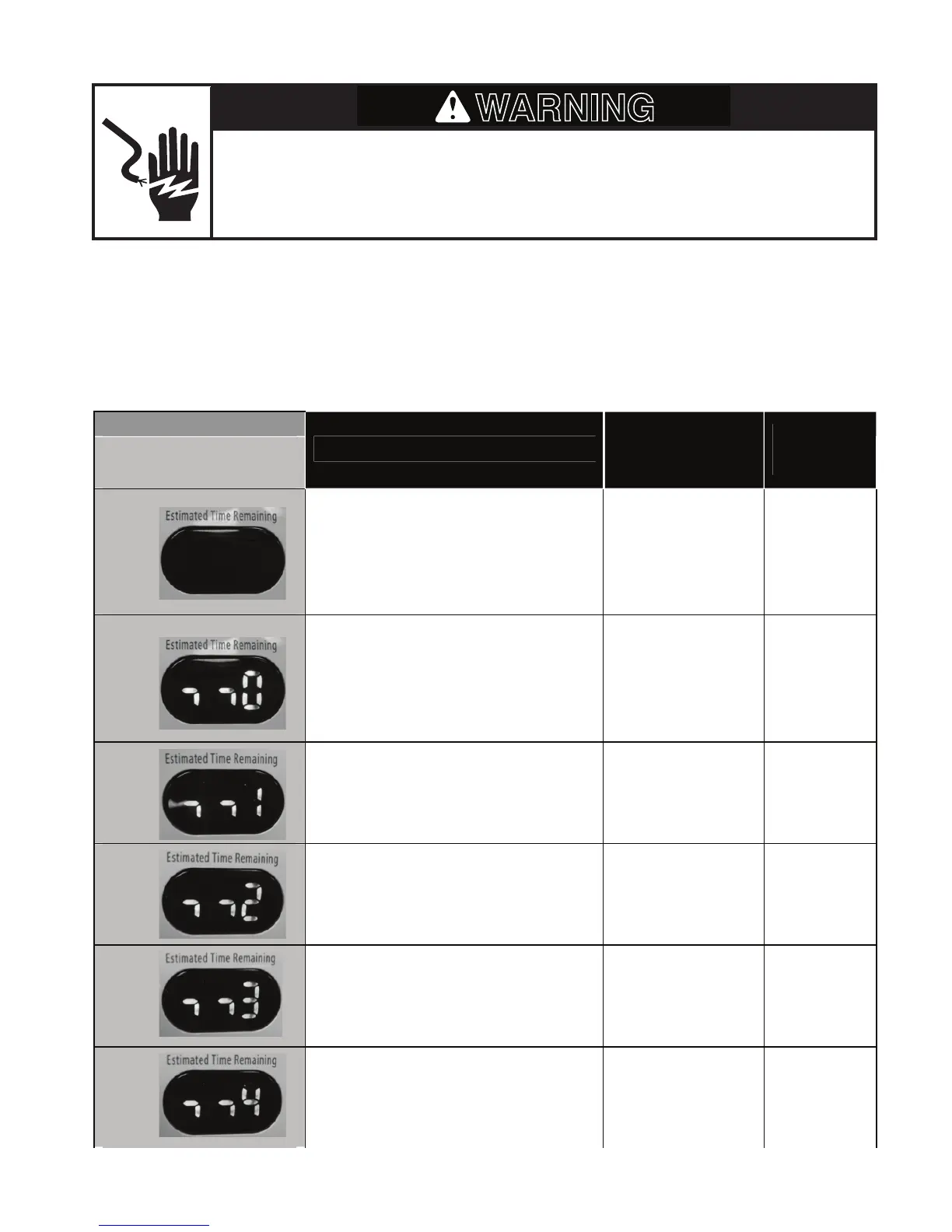

Indication
Factory Test Display
(7-SEGMENT LED)
Control Action
Actuators to be
Checked
Failure code
for failure mode
OFF Door locks  Door lock systemF13
1 (Phase LED rolling) Checks the EEPROM data’s validity
Pump turns ON if the water level is detected to be
above the wash level
 Drain system
 EEPROM test
F03, F05, F14,
F21, F23, F24,
F26, F30
1 Turns hot valve inlet on (About 15s)
Turns bleach valve inlet on (About 15s)
Turns cold valve inlet on (About 15s)
Fill by cold water inlet valve to Level_wash
 Hot Water inlet valve
 Cold Water inlet valve
 Bleach inlet valve
F01, F21, F23,
F24
2 Motor reverse. Runs at normal washing speed.
(About 15s)
 Reversing relay
 Safety relay
 Motorthermistor
 Tachometer signal
F06, F07, F21,
F27
3 Pump turns ON to drain the washer  Drain system F03, F21
4 Drive motor to max speed  Motor speed
 Tap field relay
F06, F07, F21,
F27, F28
