4-8
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
3. Remove the top cover from the washer
(see page 4-2 for the procedure).

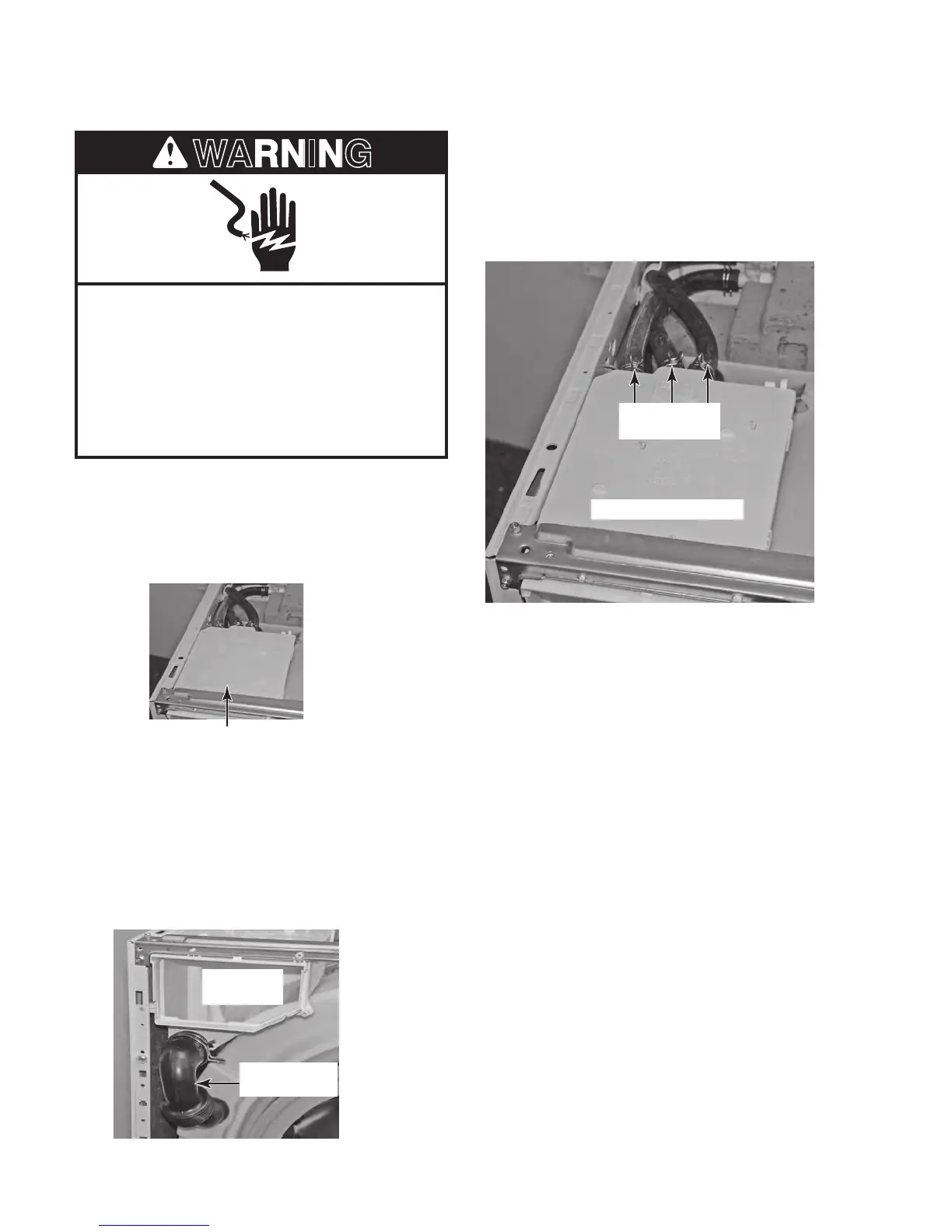

REMOVING THE DETERGENT DISPENSER ASSEMBLY
Detergent Dispenser
4. Remove the console from the washer
(see step 5 on page 4-2 for the proce-
dure).
5. Loosen the clamp and remove the water
feed tube from the dispenser.
8.
Loosen the clamps and remove the water
supply tubes from the detergent dispenser.
9. Slide the dispenser releasing it from the
cabinet frame.
Detergent
Dispenser
Water Feed
Tube
Water
Supply Tubes
Detergent Dispenser
Note: Take note of hose orientation for
reinstallation.
To Next Page
