4-9
3. Pry with a coin the lower front access
panel, then lower the panel, and remove
it.
Lower Front
Access Panel
5. Using a small screwdriver or a pair of
long-nosed pliers, pull the tension spring
on the retaining wire out from around
the front of the bellows, and remove the
wire.
4. Open the washer door.
Bellows
Retaining Wire
Tension Spring
6. Pull the bellows off the lip of the front
panel, and push the bellows inside the
front panel.
Door Switch
Assembly Screws
Retaining Wire

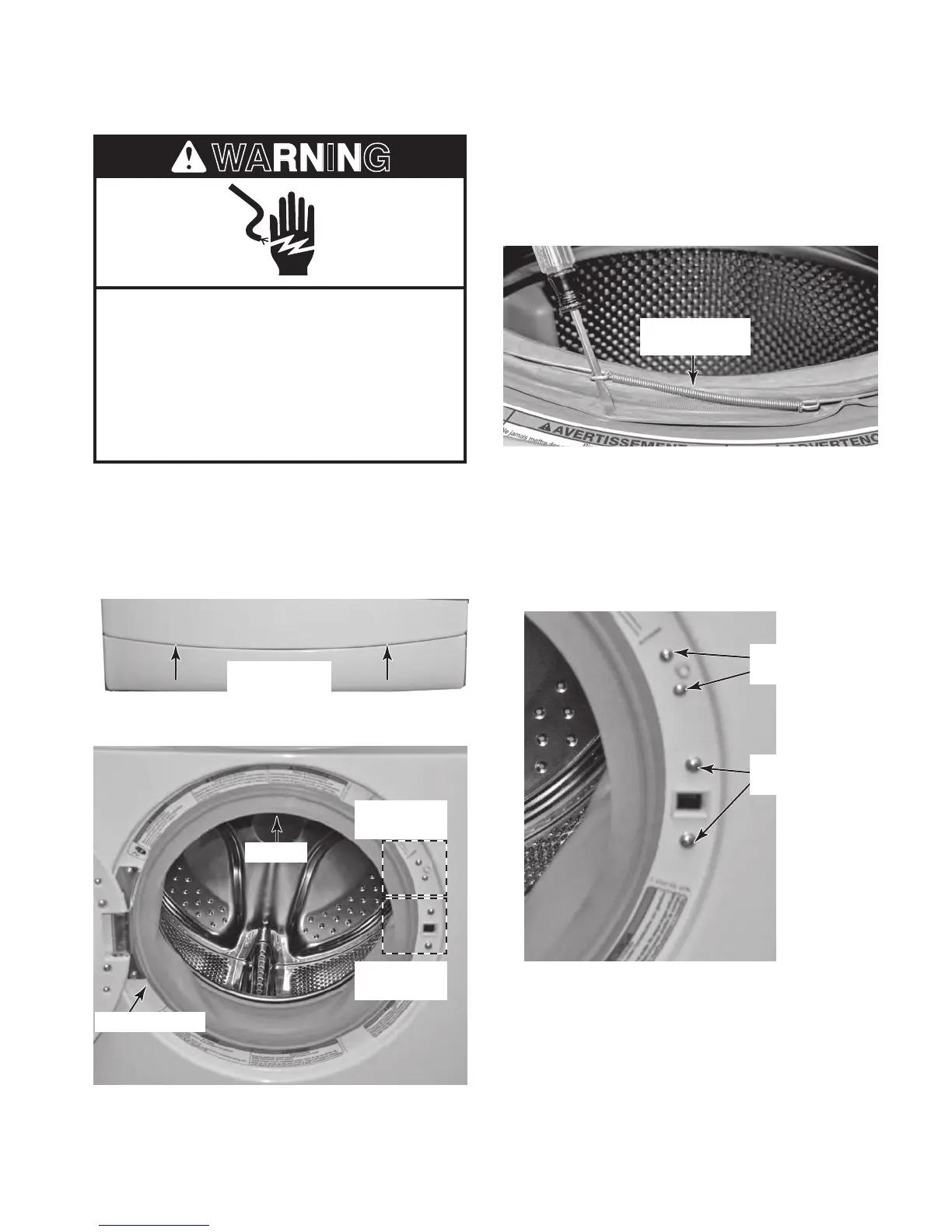

REMOVING THE FRONT PANEL ASSEMBLY
7. Remove the two screws from the door
switch assembly and two screws from
door lock assembly.
Door Lock
Assembly Screws
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Continued on the next page.
1. Unplug washer or disconnect power.
2. Turn off the water supply to the washer.
Door Switch
Assembly
Door Lock
Assembly
To Next Page
