5-4
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.

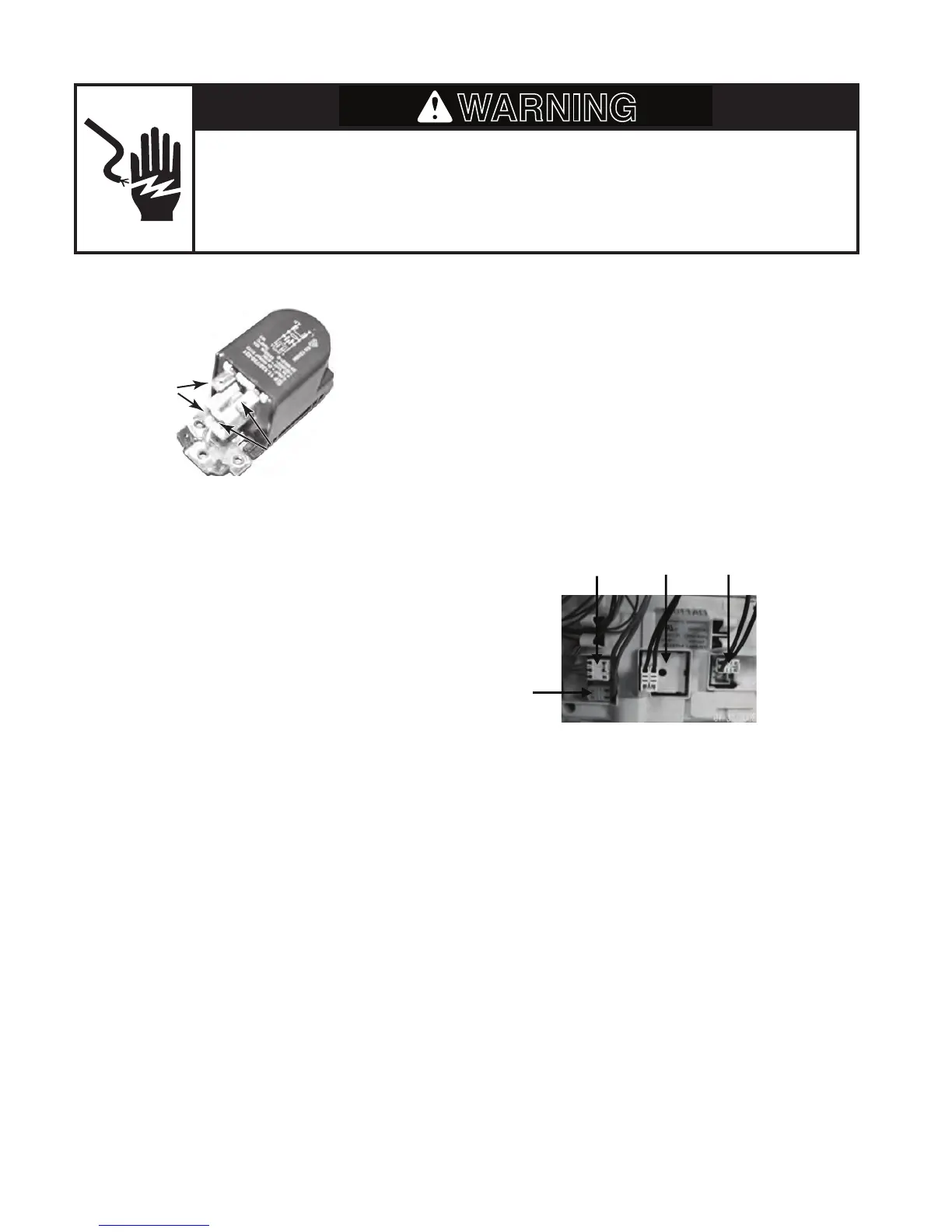

LINE FILTER
Refer to page 4-8 for the procedure for ac-
cessing the line filter.
To check the line filter at the component ter-
minals, perform the following steps.
1. Unplug washer or disconnect power.
2. Disconnect the wire connectors from the
line filter.
3. Set the ohmmeter to the R X 1 scale.
4. Touch the ohmmeter test leads to the fol-
lowing connector pins (shown above).
The meter should indicate 0 Ω for each
measurement.
Pins A and B
Pins C and D
To check the line filter at the CCU, perform
the following steps.
1. Unplug washer or disconnect power.
2. Disconnect the line filter connector IF2
(see page 4-5) from the CCU.
3. Set the ohmmeter to the R X 1 scale.
4. Touch the ohmmeter test leads to con-
nector pins 1 and 2. The meter should
indicate 0 Ω.
Pins A & B
Pins C & D
9 10 11
8
1 2 3 1 2
1 2
21
8. MS2 Motor Supply 10. IF2 RFI filterDoor Switch
9. DLS3 Door Lock 11. PRS2 Safety level of Pressure switch
