Operation
9308−1/A1
Winterthur Gas & Diesel Ltd.
7/ 10

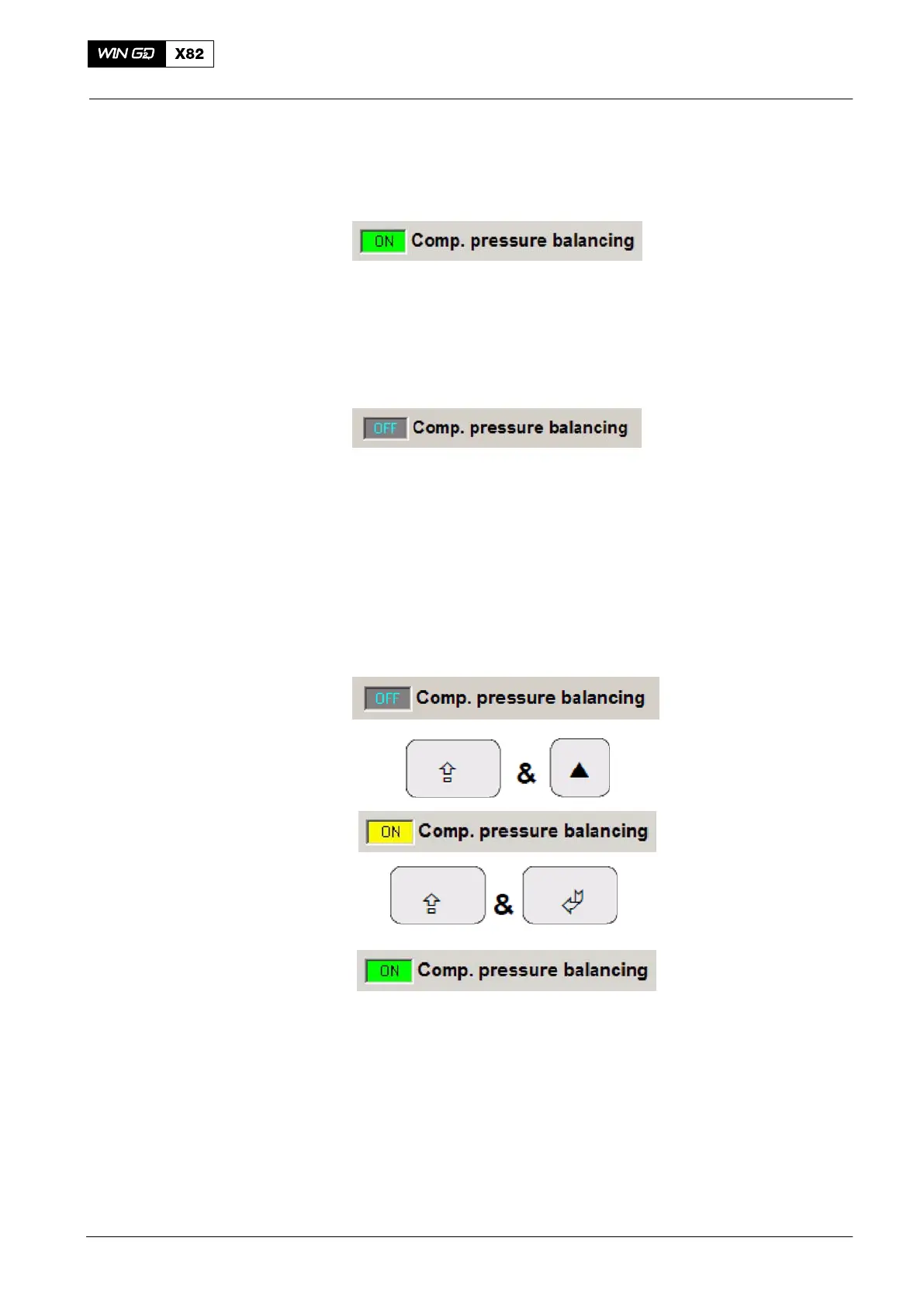

When the compression pressure balancing function is set to ON (see Fig. 6) this
offset is calculated by ICC system.
Fig. 6: Compression Pressure Balancing − Set to ON
When the compression pressure balancing function is set to OFF (see Fig. 7), this
offset is the same as on the flexView Adjust card adjusted by the operator.
Fig. 7: Compression Pressure Balancing − Set to OFF
From the ICC-EXV card (Fig. 5), the compression pressure balancing function can be
set to ON as follows:
Select [Shift] + [Arrow UP]
To confirm, select [Shift] + [Enter] (see the workflow in Fig. 8).
Fig. 8: Compression Pressure Balancing − Set to ON Workflow
