Maintenance
9403−5/A1
RT-flex58T-D
Winterthur Gas & Diesel Ltd.
37/ 37
94691
94690A
1
2

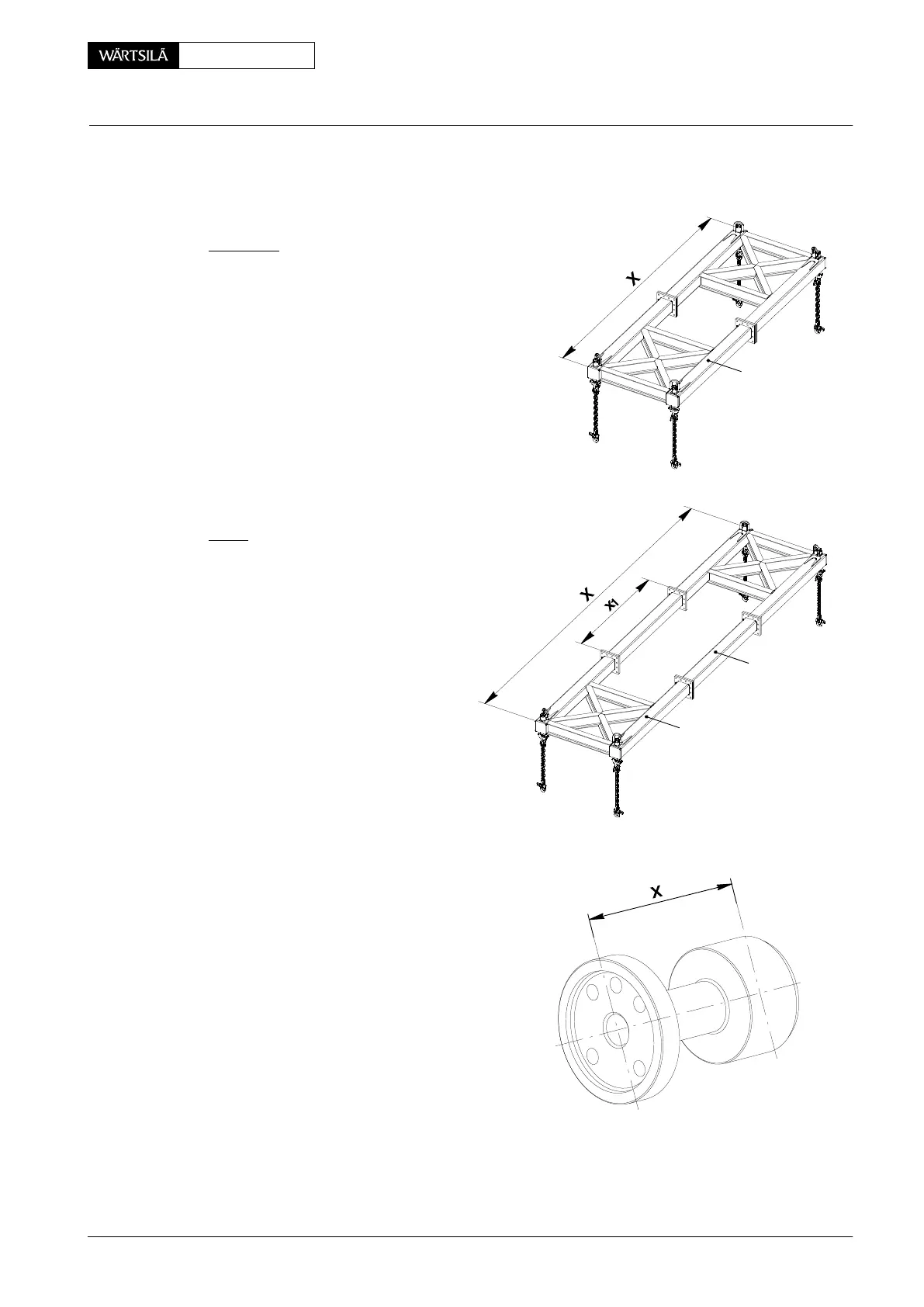

Transport tool
for 5 or 6 Cyl. rail unit modules
(max. lifting capacity 14 000 kg)
X = 4164 mm
consisting of:
Lifting elements
incl. 24 screws M24x80 and nuts
016.149/07
94690A
94692
94690A
94690B
1
2
1
Transport tool
for 7 Cyl.
rail unit modules
(max. lifting capacity 14 000 kg)
X = 6176 mm
consisting of:
Lifting elements
Bracket
incl. 48 screws M24x80 and nuts
X
1
= 2012 mm
016.150/07
94690A
94690B
94922 1 Alignment tool
for crank angle sensor (FREE END)
X = 172 mm
008.773/00
Special Tools Obtainable on Loan
