Xantrex XW User Manual

Mechanical Specifications
975-0307-01-01 A–3
Mechanical Specifications
Dimensions 3 ¾ × 5 ¾ x 1 ½
(95.5 × 146 × 37 mm)
Weight 0.5 lb. (225 g)
Mounting 4x #6 screws
Connectors 2x Xanbus: RJ45—8 pins
1x 20-contact pluggable
connector (Tyco Mate’n’ Lok 2
connector)

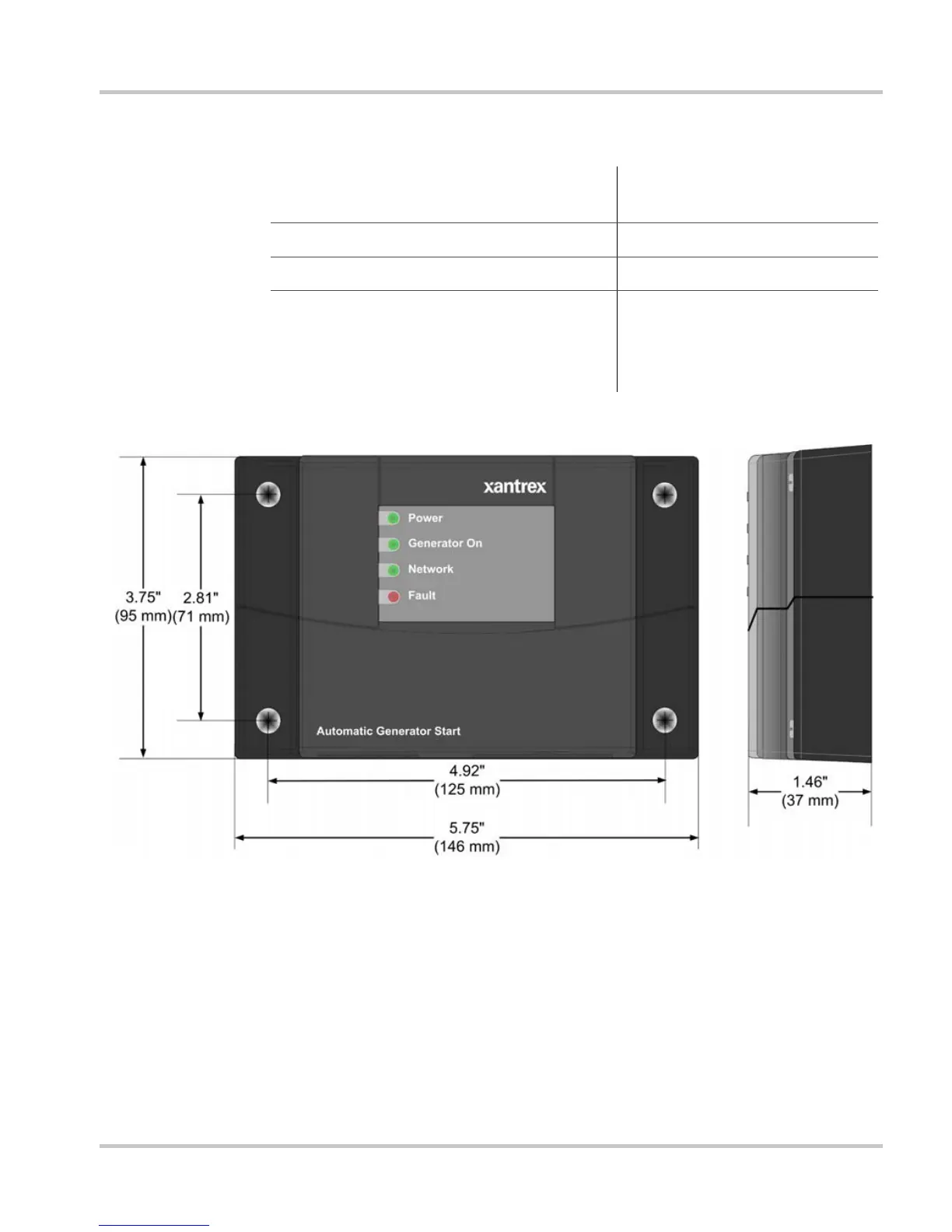

Figure A-1 XW Auto Generator Start Dimensions
Illustration Not to Scale.

Xantrex XW Specifications

General

Maximum Power Point Tracking (MPPT)	Yes
Model	XW
Category	Controller
Maximum PV Array Voltage	150V
Nominal Battery Voltage	48V
Output Voltage	48V
