Relay Timing
C–2 975-0307-01-01
RunMode
For generators with RunMode starting types (Types 7 and 8):
• Relay 1 (RunStop relay) can be used for two-wire configured
generators.
• Relay 1 (RunStop) and Relay 2 (Start) can be used with a common
ground for three-wire configured generators.
• The Preheat will never overlap the Crank Time.
• The “Delay” refers to the “Preheat to Crank Delay” and may be zero.
• Cranking will cease when the generator run signal goes high for the
specified hold time or when the crank time has elapsed.

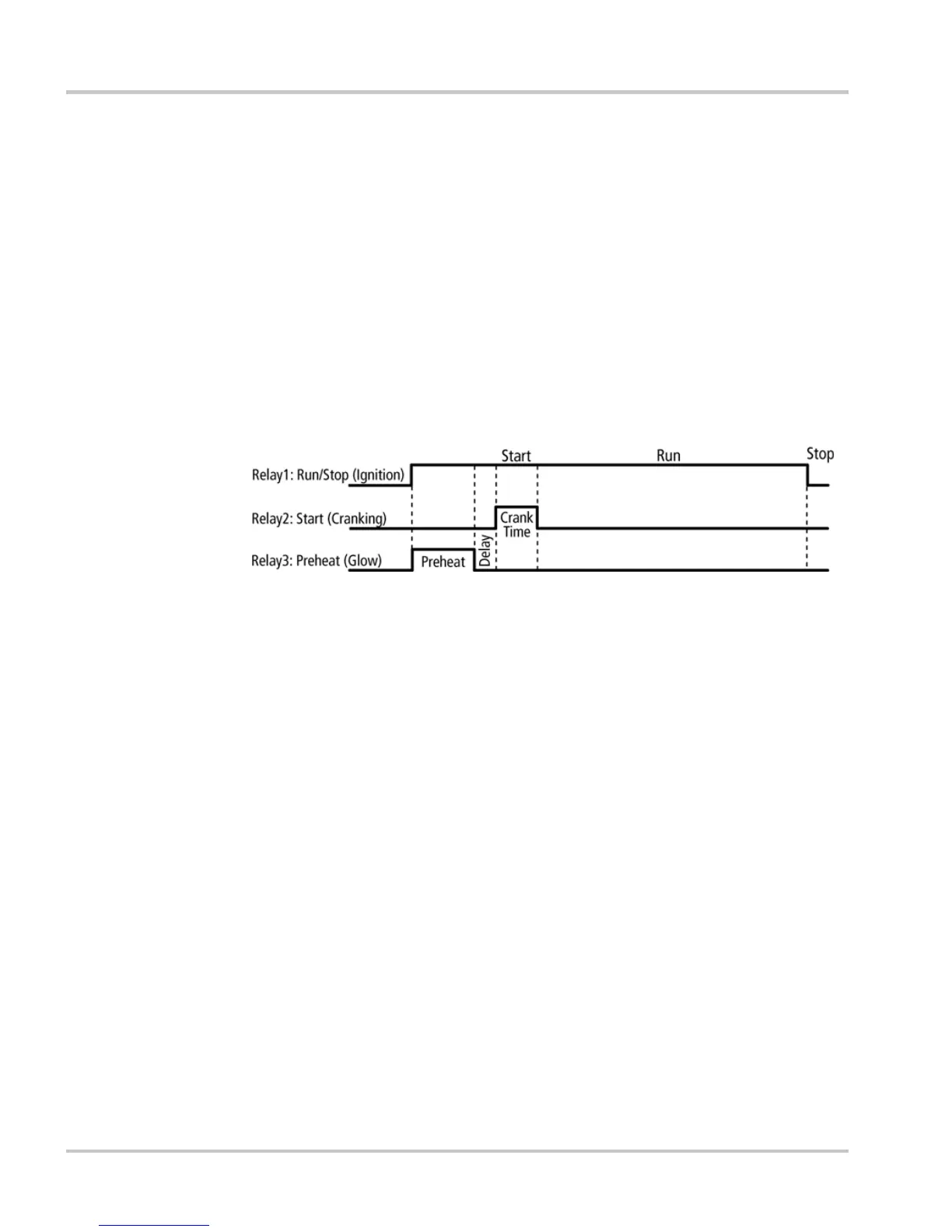

Figure C-1 RunMode Timing Diagram
