Xantrex XW - Figure 2-14 Type 10 Connection Diagram; Table 2-13 Type 10 Relay and Timing Preset Configurations

Installation
2–18 975-0307-01-01
Type 10
Type 10 is a StartStop mode configuration with no preheat signal or
shutdown bypass functionality.

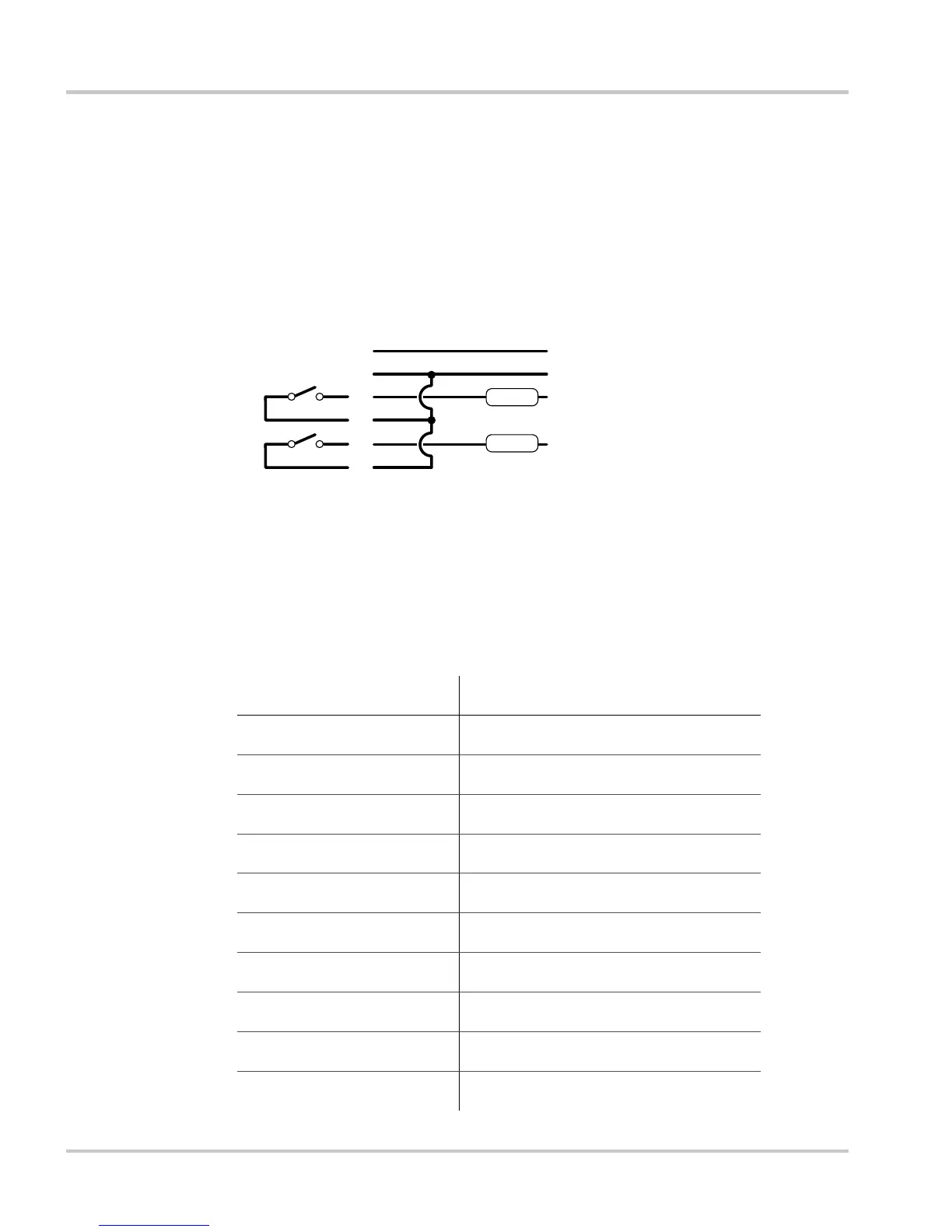

Figure 2-14 Type 10 Connection Diagram
For additional information, see
“Circuit Limitations” on page 2–5.
18
17
16
14
13
12
Relay 1
Relay 2
5A fuse
5A fuse
GENERATOR RUN SIGNAL
GENERATOR BATTERY NEGATIVE (–)
STOP
START
XW AGS Harness Wires Generator Wires
Table 2-13 Type 10 Relay and Timing Preset Configurations
Relay Function Preset Configuration Setting
Relay 1 mode
StartStop
Relay 3 mode
No function
Gen Run signal hold time
0.5 s
Preheat time
0 s
Preheat to crank delay
0 s
Crank time
15 s
Crank retry time
30 s
Gen Cool Down
30 s
Shutdown bypass time
0 s
Start tries
3
