Installing the XW Automatic Generator Start
975-0307-01-01 2–25

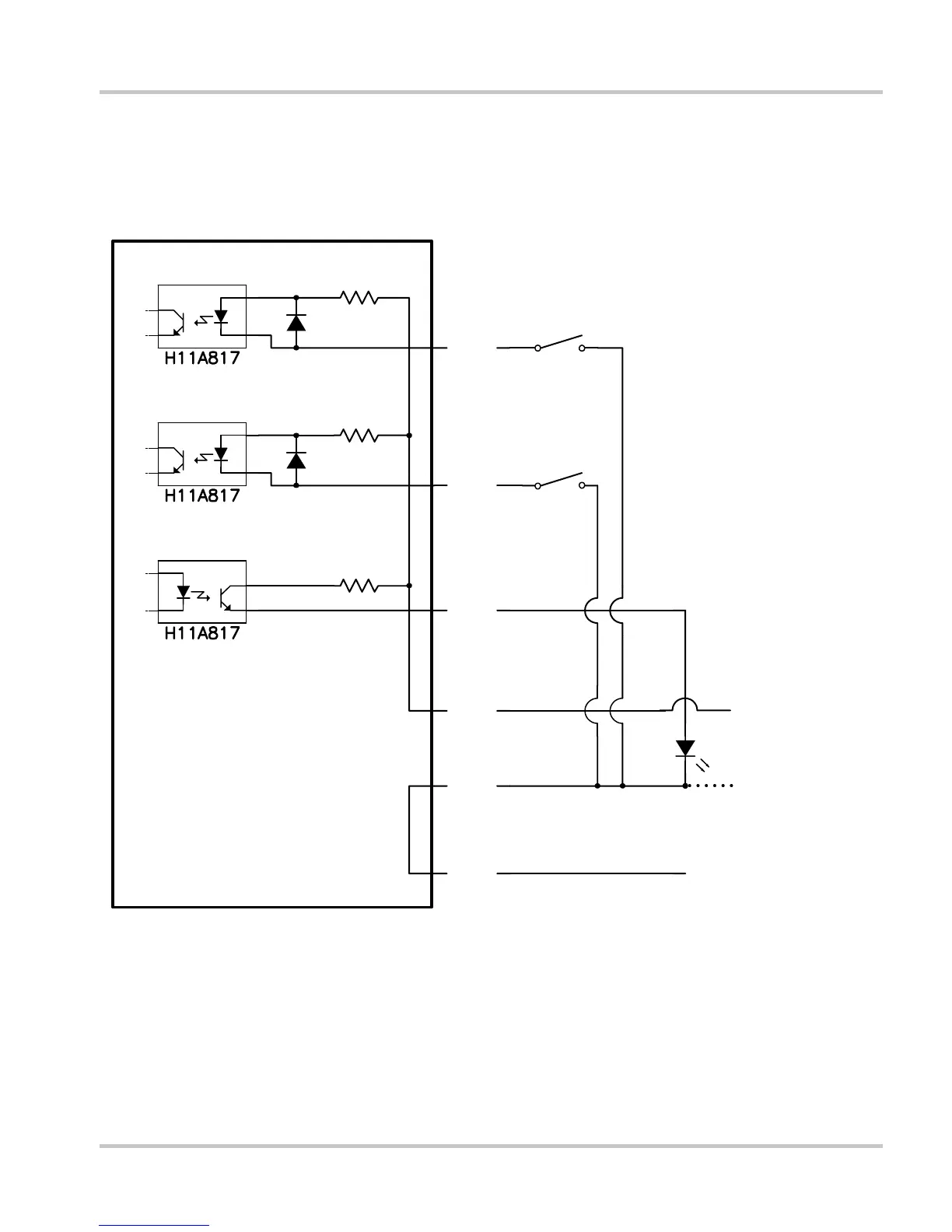

Figure 2-18
External ON/OFF Switch and LED Wiring Diagram
START PUSH BUTTON
STOP PUSH BUTTON
12V OR 24V
EXTERNAL LED
EXTERNAL LED
GROUND
7
8
9
10
11
13
2K
2K
5K11
Fused 12V or 24V
-12V or -24V
Generator Battery
Negative (–)
Start Push Button
Stop Push Button
External LED
External LED
XW Automatic
Generator Start
