Installation
2–16 975-0307-01-01
Type 8
Type 8 will work with both two-wire and three-wire run mode
configurations and is intended for Northern Lights and Fisher Panda
generators. Type 8 is identical to Type 7 except that it provides no preheat
signal before cranking.
Figure 2-11

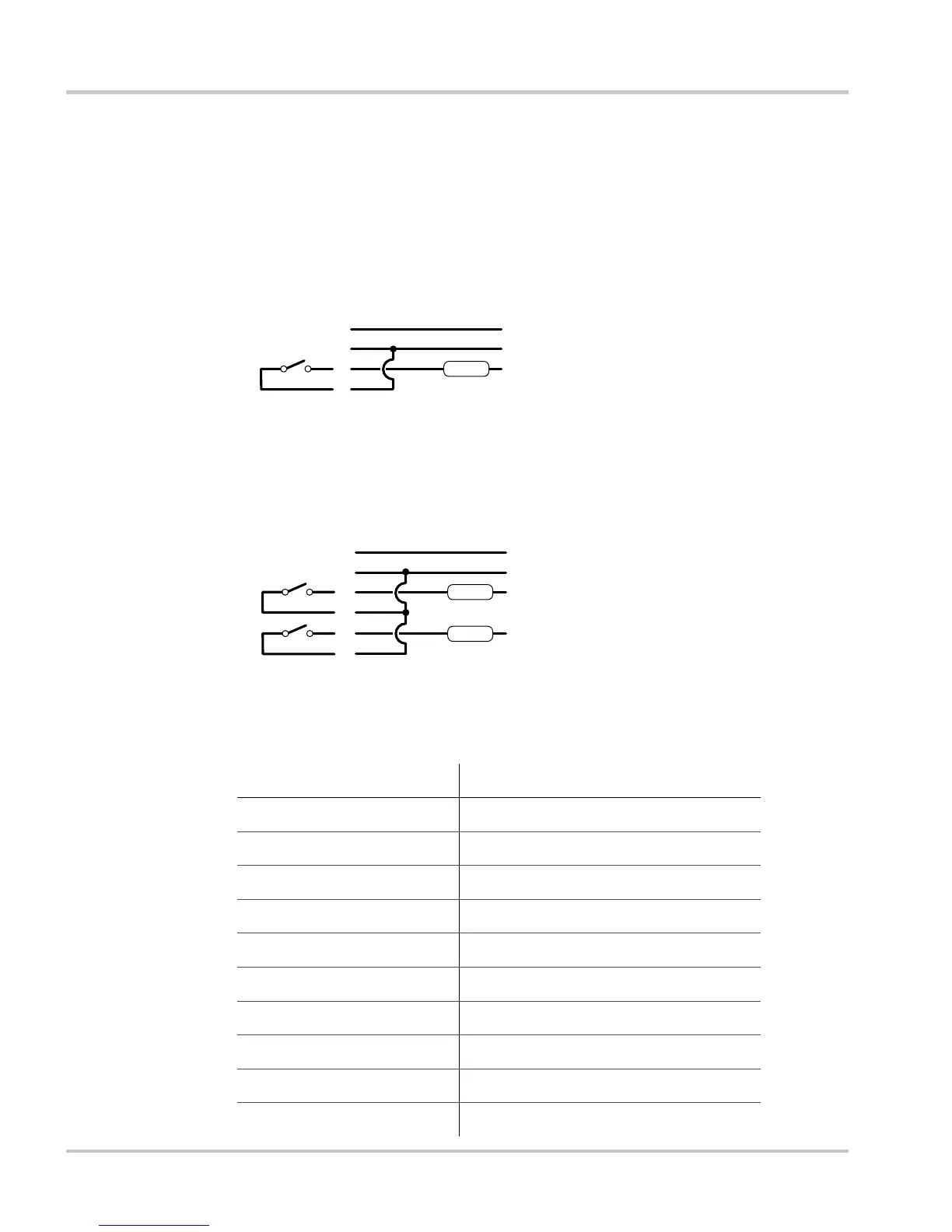

Type 8 Connection Diagram (two-wire)
Figure 2-12
Type 8 Connection Diagram (three-wire)
Table 2-11
Type 8 Relay and Timing Preset Configurations
Relay Function Preset Configuration Setting
Relay 1 mode
Run
Relay 3 mode
No function
Gen Run signal hold time
0.5 s
Preheat time
0 s
Preheat to crank delay
0 s
Crank time
15 s
Crank retry time
30 s
Gen Cool Down
30 s
Shutdown bypass time
0 s
Start tries
3
XW AGS Harness Wires Generator Wires
16
14
13
12
Relay 1
5A fuse
GENERATOR RUN SIGNAL
GENERATOR BATTERY NEGATIVE (–)
RUN
For additional information, see
“Circuit Limitations” on page 2–5.
XW AGS Harness Wires Generator Wires
GENERATOR RUN SIGNAL
GENERATOR BATTERY NEGATIVE (–)
RUN
18
17
16
14
13
12
Relay 1
Relay 2
5A fuse
5A fuse
START
For additional information, see
“Circuit Limitations” on page 2–5.
To Next Page
