Installing the XW Automatic Generator Start
975-0307-01-01 2–21
Type 13
Type 13 is a three-wire PulseStop configuration that uses relay 3 to
provide the preheat signal for PowerTech’s Diesel generators. With this
generator type, there will be a delay between the generator turning off and
the XW Auto Generator Start recognizing that the generator is off.

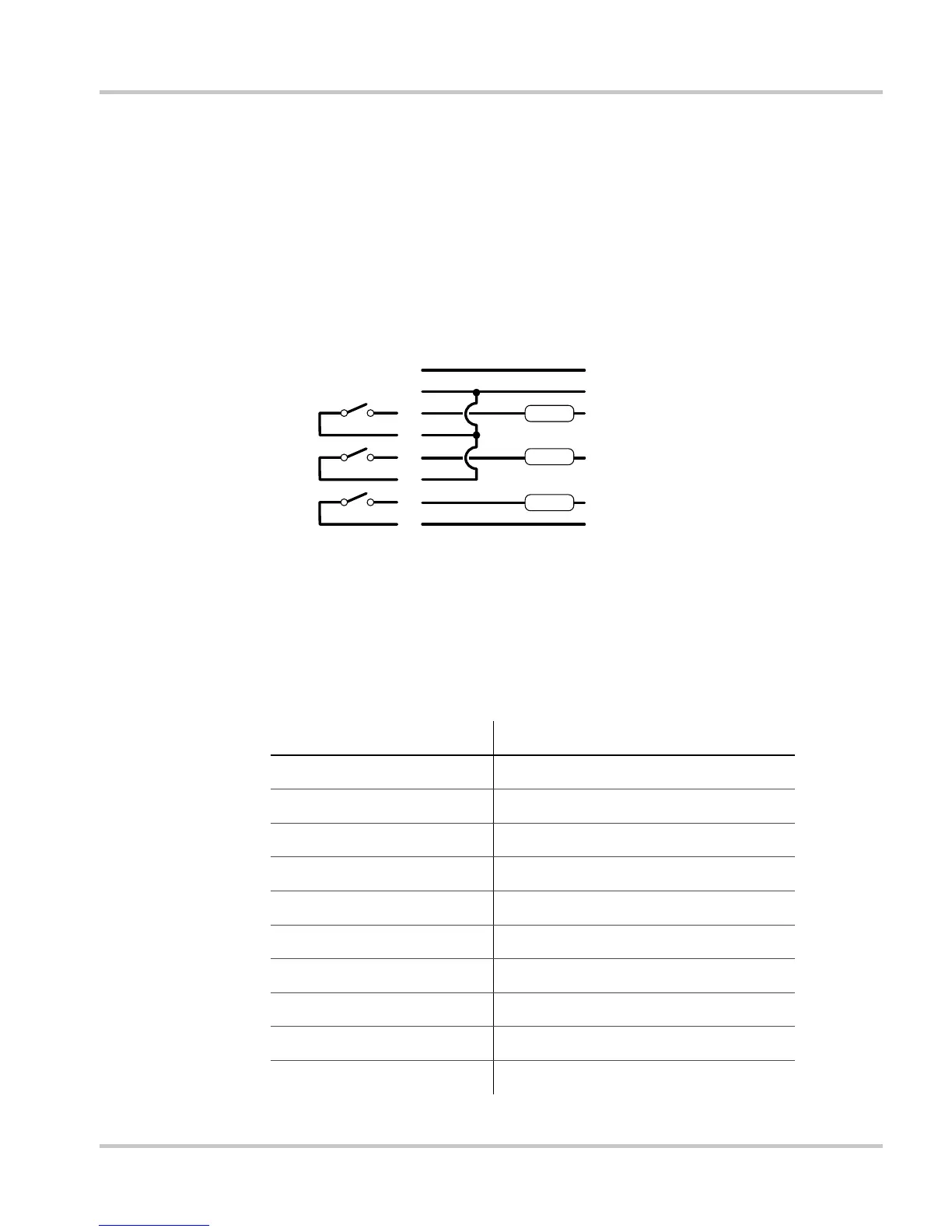

Figure 2-17 Type 13 Connection Diagram
Table 2-16 Type 13 Relay and Timing Preset Configurations
Relay Function Preset Configuration Setting
Relay 1 mode
PulseStop
Relay 3 mode
Preheat
Gen Run signal hold time
5 s
Preheat time
15 s
Preheat to crank delay
2 s
Crank time
15 s
Crank retry time
15 s
Gen Cool Down
30 s
Shutdown bypass time
0 s
Start tries
3
For additional information, see
“Circuit Limitations” on page 2–5.
XW AGS Harness Wires Generator Wires
18
17
16
14
13
12
20
19
FUEL PRIME (PREHEAT)
12V GENERATOR BATTERY +
Relay 1
Relay 3
Relay 2
5A fuse
5A fuse
5A fuse
GENERATOR RUN SIGNAL
STOP/PREHEAT
START
GENERATOR BATTERY NEGATIVE (–)
