Xantrex XW User Manual

Configuration
3–6 975-0307-01-01
When the XW Auto Generator Start Home Screen is first displayed, the
menu defaults to the GenMode Menu.
If configuration changes need to be made, the Configuration Menu can be
accessed by pressing the ENTER button, the Up Arrow button, and Down
Arrow button all at same time to access the Advanced Settings.

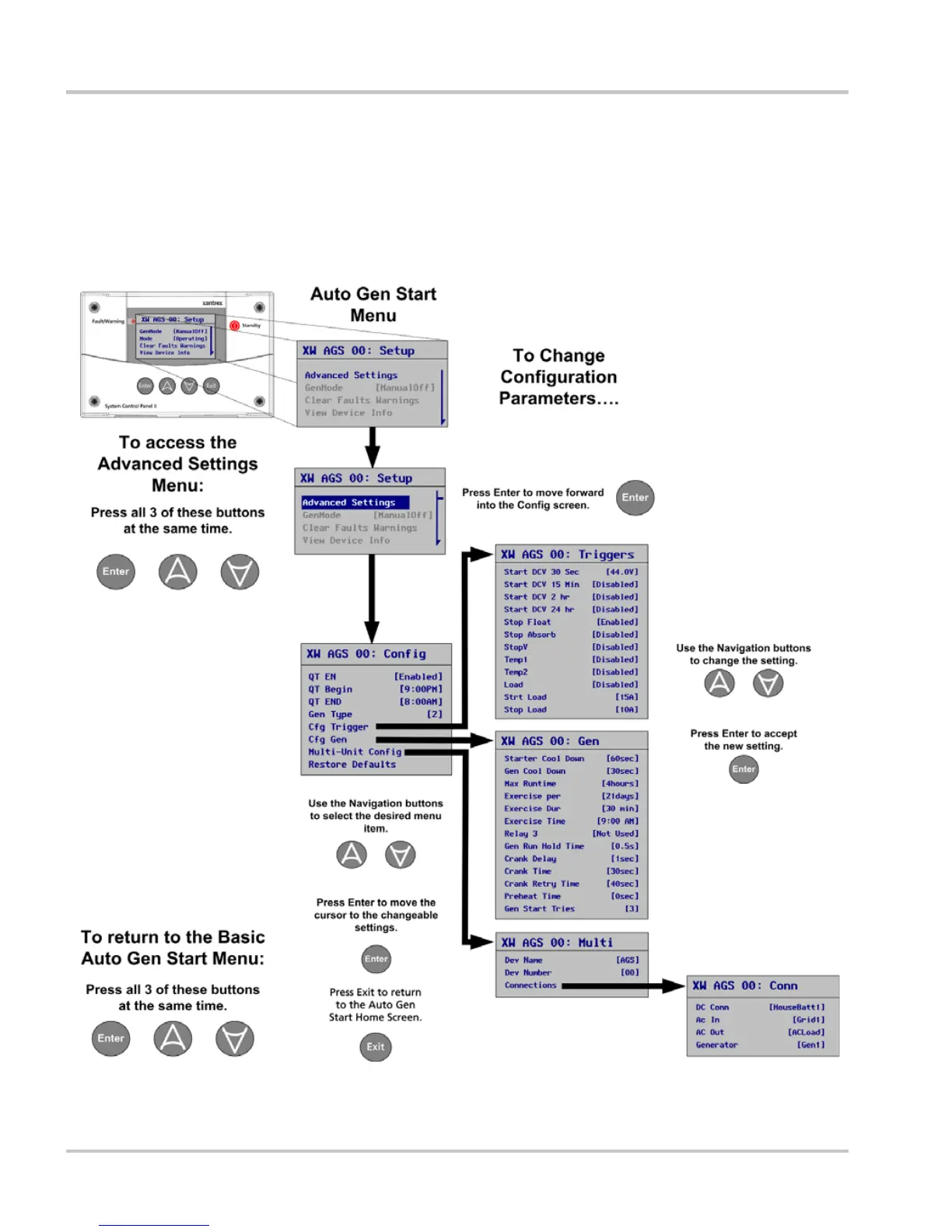

Figure 3-5 XW Auto Generator Start Configuration Menu Contents
For details on the
Configuration menu
options, see page 3–7.

Xantrex XW Specifications

General

Maximum Power Point Tracking (MPPT)	Yes
Model	XW
Category	Controller
Maximum PV Array Voltage	150V
Nominal Battery Voltage	48V
Output Voltage	48V
