Connecting the Wiring Harness to the XW Auto Generator Start
After all the external connections have been wired to the wiring harness,
the connector on the wiring harness must be plugged into the 20-contact
connector on the XW Auto Generator Start.
To connect the wiring harness to the XW Auto Generator Start:
ā—† With the click-tab on the wiring harness connector on top (away from
the mounting surface), insert the wiring harness connector into the
20-contact connector on the XW Auto Generator Start until the tab
clicks into place.

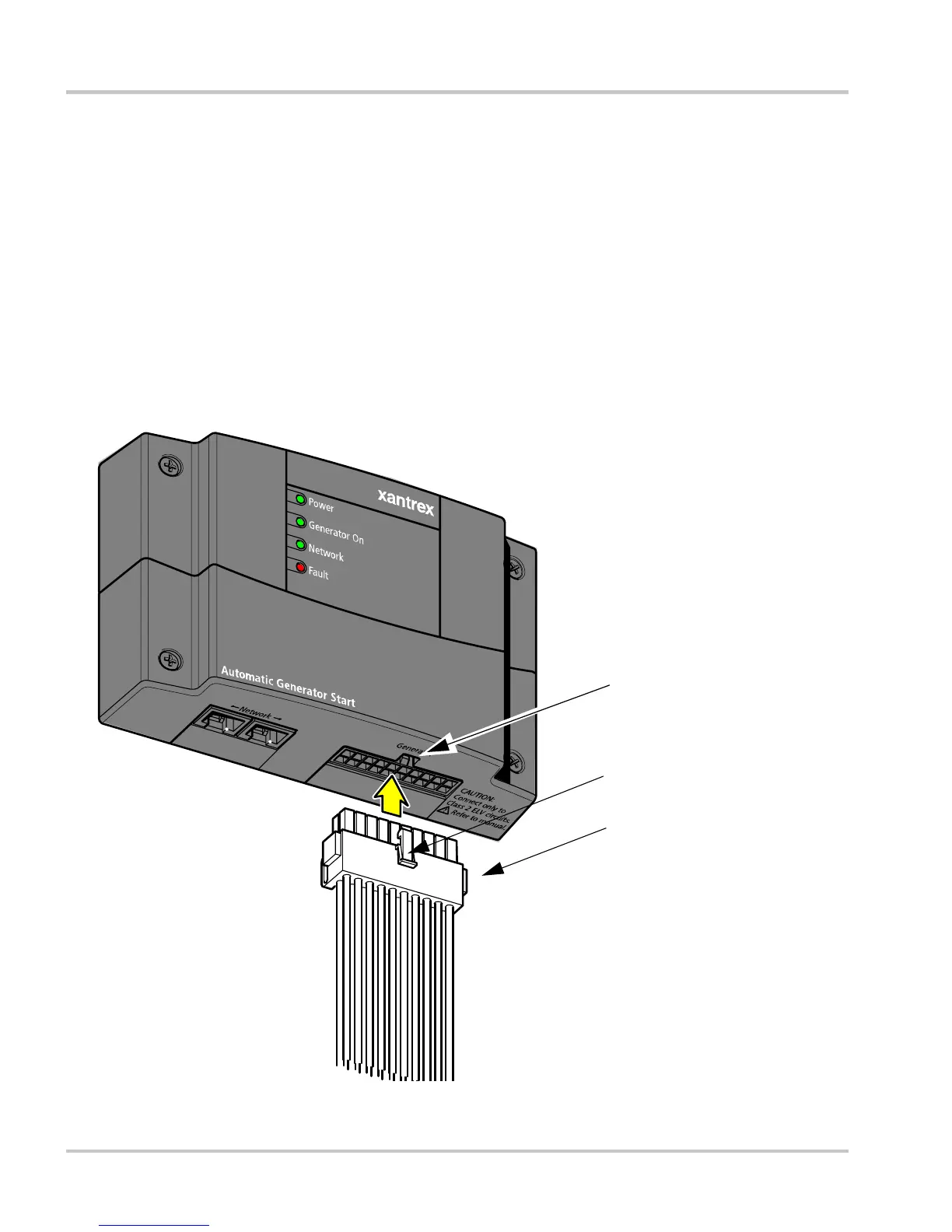

Figure 2-19
XW Auto Generator Start External Connections
Wiring harness (connection
to generator, thermostats,
and external switches)
20-contact
connector
Click Tab
