Xantrex XW - Figure 2-16 Type 12 Connection Diagram; Table 2-15 Type 12 Relay and Timing Preset Configurations

Installation
2–20 975-0307-01-01
Type 12
Type 12 is a three-wire GlowStop configuration recommended for “three-
wire” generators that don’t require a dedicated preheat signal, such as
Onan propane generators. In this configuration, the start signal is applied
for longer because the generator does its own preheat and cranking while
the start signal is applied.

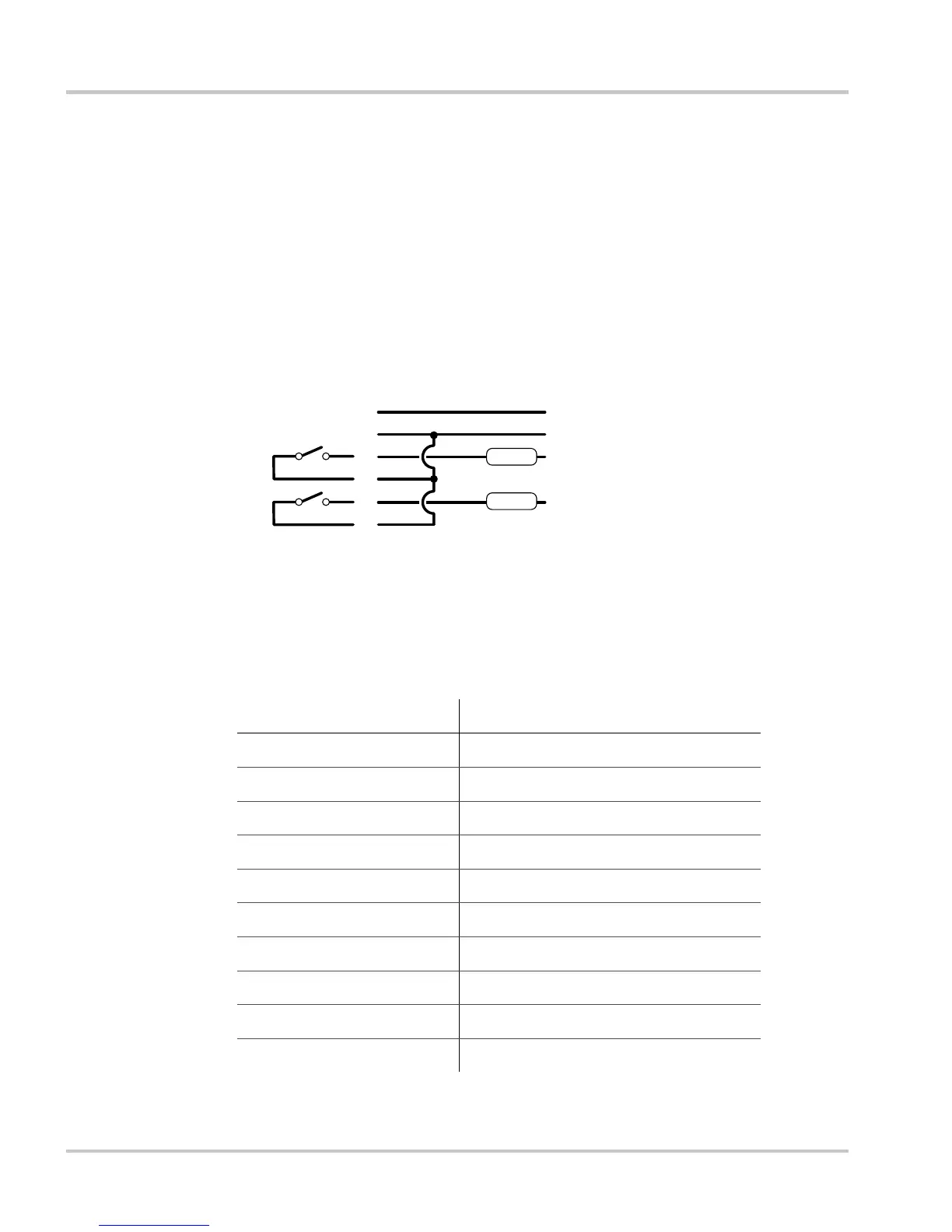

Figure 2-16 Type 12 Connection Diagram
18
17
16
14
13
12
Relay 1
Relay 2
5A fuse
5A fuse
GENERATOR RUN SIGNAL
GENERATOR BATTERY NEGATIVE (–)
STOP
START
XW AGS Harness Wires Generator Wires
For additional information, see
“Circuit Limitations” on page 2–5.
Table 2-15 Type 12Relay and Timing Preset Configurations
Relay Function Preset Configuration Setting
Relay 1 mode
GlowStop
Relay 3 mode
No function
Gen Run signal hold time
4 s
Preheat time
0 s
Preheat to crank delay
0 s
Crank time
30 s
Crank retry time
40 s
Gen Cool Down
30 s
Shutdown bypass time
0 s
Start tries
3
