7.1 Replacing Consumables 217
Replacing the Transfer Belt Cleaner
Replace the fuser unit and the transfer belt cleaner at the same time.
Replacement Procedure
Important
• Before setting down a used transfer belt cleaner, spread out the plastic sheet from the new transfer belt
cleaner to prevent things from getting dirty.

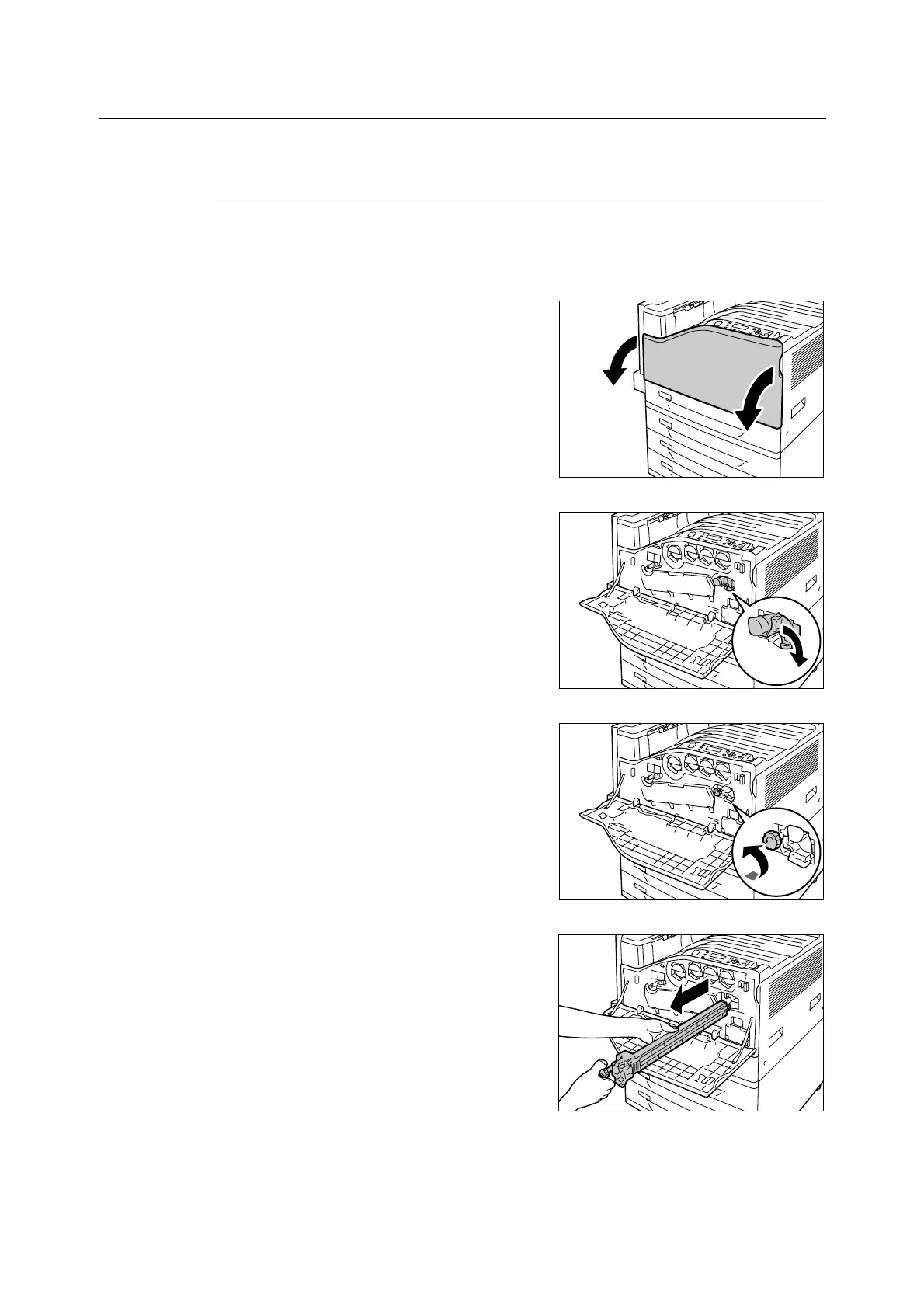

1. Open the front cover.
2. Rotate the transfer belt cleaner cover on
the front right side to open it.
3. Loosen the knob.
Turn the knob until it pops out.
4. Pull out the transfer belt cleaner with both
hands and lower it to remove it.
Important
• When pulling out the transfer belt cleaner, grasp it with
both hands so you do not drop it.
• Never stand the used transfer belt cleaner on end.
• Wrap the used transfer belt cleaner in the plastic sheet
that comes with the new transfer belt cleaner. Then
insert the used cleaner into the plastic bag that comes
with the new transfer belt cleaner.
