294 A Appendix

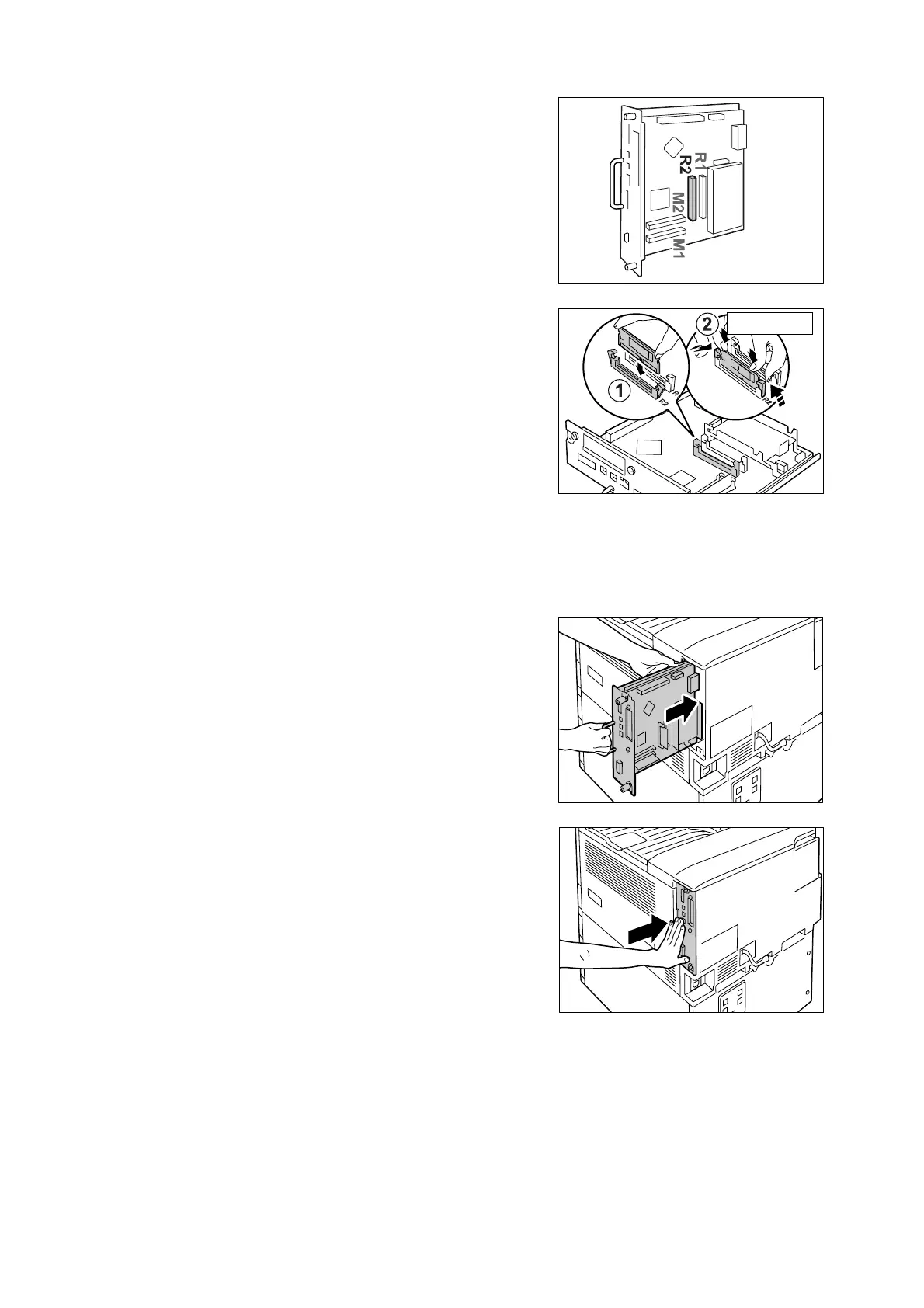

5. Insert the TC/SC Font ROM card into slot
R2 as shown in the illustration to the right.
Aligning the notch in the ROM card with the
tab in the R2 slot, insert the card straight
into the slot. Next, press the ROM card
down firmly into the slot.
Note
• Make sure the ROM card is inserted securely as far as
it can go.
• When the ROM card is installed correctly, the retaining
clips on both ends stand up.
6. Reinsert the control board back into the
printer. Holding its handle, slide the control
board back into the printer.
Press the control board in as far as it will
go.
Insert securely as
far as it can go.
To Next Page
