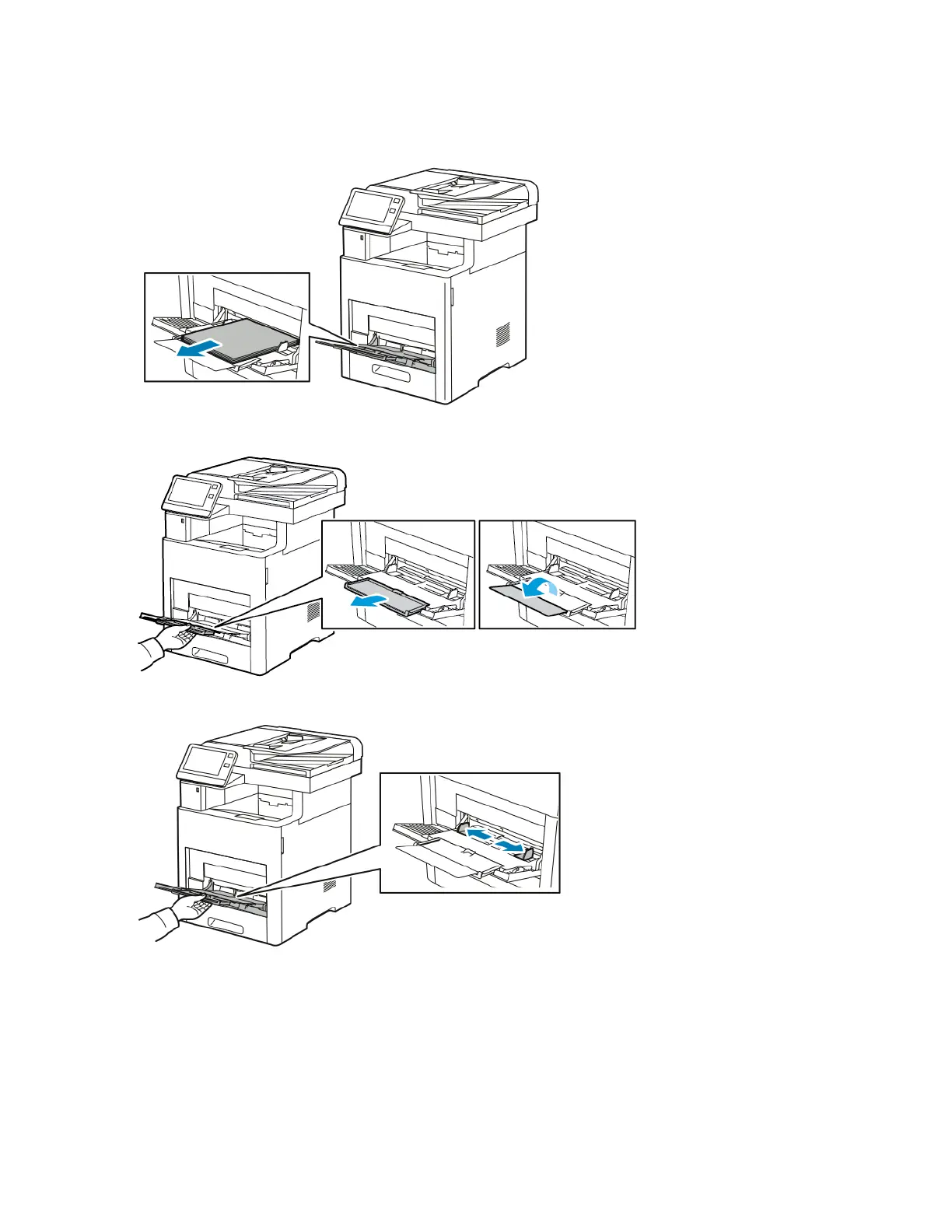

Loading Labels in the Bypass Tray
1. Open the Bypass Tray. If the tray is already open, remove all paper from the tray.
2. For larger paper sizes, pull out, then open the Bypass Tray extension.
3. Move the width guides to the edges of the tray.
4. Load sheet-labels in the Bypass Tray, face up, with the top edge of the page feeding into the printer
first.
