Xerox VersaLink B615 User Manual

You can use the Fax feature to do the following tasks:
• Delay the send of your fax job for up to 24 hours.
• Send a fax from your computer.
• Forward fax documents to an email address.
• Print a fax from a secure folder.
The fax function works best with an analog phone line. Voice-Over-Internet Protocols (VOIPs) such as
FIOS and DSL are not supported. Before you use the fax, configure the Fax Settings to ensure that the
settings are compatible with your local connection and regulations. The Fax Settings include optional
features that you can use to configure the printer for faxing.
Note
Not all options listed are supported on all printers. Some options apply only to a specific printer model,
configuration, operating system, or print driver type.
For details, refer to the System Administrator Guide at www.xerox.com/office/VLB605_VLB615docs.
You can adjust various settings for individual Fax jobs and save settings as Presets for future jobs. The
list of features can be customized, and some features could be hidden from view when the App is installed.
To view all available features and to find out more about customizing the Fax App, refer to Customize
and Personalize.
For information about all the App features and available settings, refer to Apps Feature.
Sending a Fax
To send a fax:
1. At the printer control panel, press the Home button.
2. To clear previous App settings, touch Reset.
3. Load your original documents.

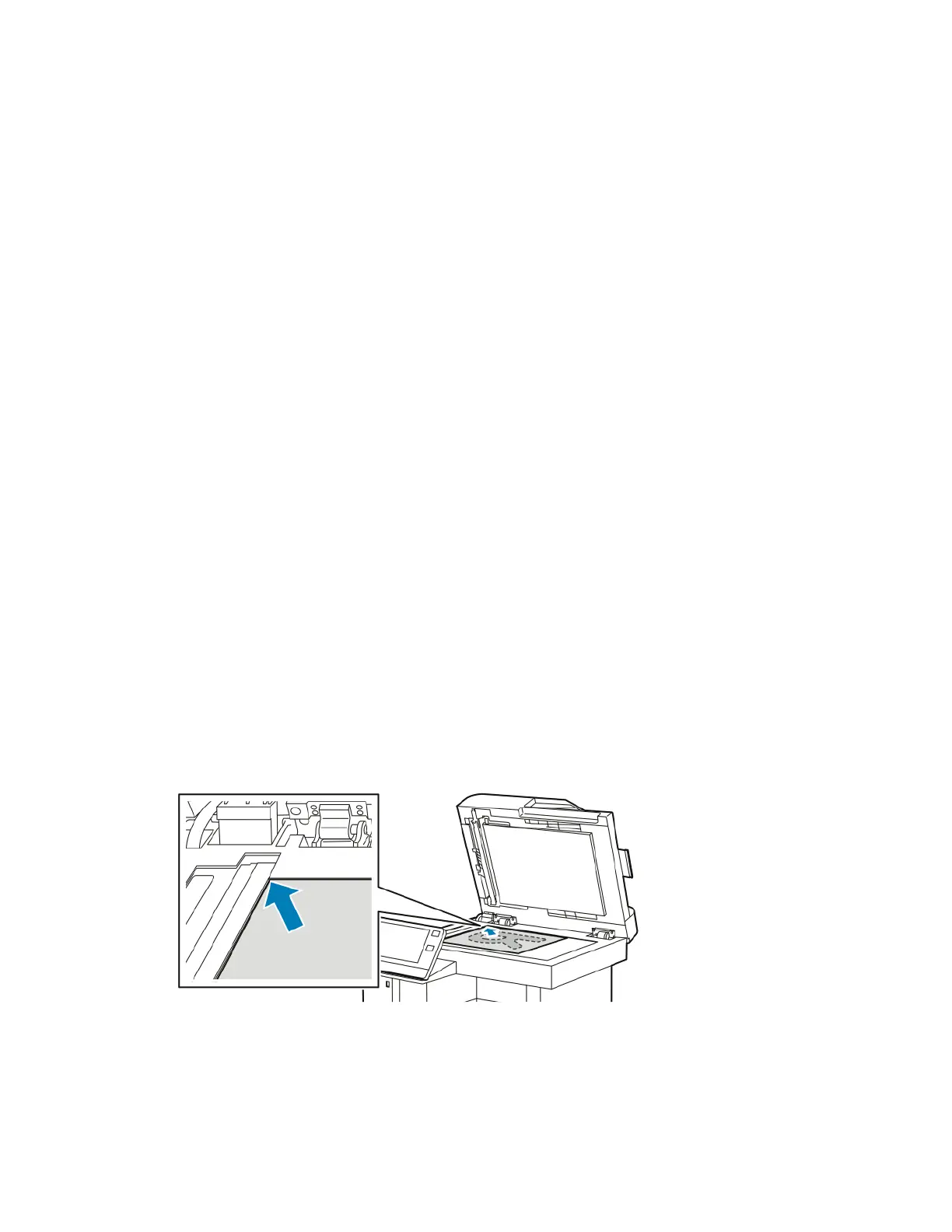

• Use the document glass for single pages or paper that cannot be fed using the duplex automatic
document feeder. Lift the document feeder, then place the original document face down in the
upper-left corner of the document glass.
• For single, multiple, or 2-sided pages, use the duplex automatic document feeder. Remove any
staples and paper clips from the pages. Insert the original documents face up in the document
feeder, with the top of the page entering the feeder first. Adjust the paper guides so that they fit
against the documents.
Xerox
®
VersaLink
®
B605/B615 Multifunction Printer4-32
User Guide
Xerox
®
Apps

Xerox VersaLink B615 Specifications

General

N-up printing	2, 4, 6, 8, 9, 16
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Warm-up time (from sleep mode)	47 s
Time to first page (black, normal)	3.7 s
Print speed (black, normal quality, A4/US Letter)	63 ppm
Duplex print speed (black, normal quality, A4/US Letter)	56 ppm
Custom media width	76 - 190 mm
Custom media length	216 - 356 mm
Duplex media weight	60 - 176 g/m²
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 128 g/m²
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
USB connector	USB Type-A / USB Type-B
Standard interfaces	Ethernet, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
Wi-Fi	-
Cabling technology	10/100/1000Base-T(X)
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, IPPS, IPSec, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service, Xerox PrintBack
Supported network protocols (IPv4)	TCP/IP:HTTP/HTTPS, InternetPrintingProtocol, LPR/LPD, RawSocketPrinting/Port9100, IPv4/IPv6, WSD, LDAP, Bonjour/AirPrint, FTP
Supported network protocols (IPv6)	IPv6
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.3 s
Copy speed (black, normal quality, A4)	65 cpm
Processor cores	2
Processor family	ARM
Card reader integrated	No
Internal storage capacity	320 GB
Sound power level (standby)	43 dB
Sound power level (printing)	70 dB
Sound pressure level (standby)	29 dB
Sound pressure level (printing)	58.3 dB
Control type	Touch
Product color	Blue, White
Market positioning	Business
Scan to	E-mail, FTP, File, USB
Scan drivers	TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Output color depth	24 bit
Duplex scanning mode	Auto/Manual
Output grayscale depth	8 bit
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Sustainability certificates	ENERGY STAR
Power consumption (off)	0.2 W
Power consumption (sleep)	0.88 W
Power consumption (standby)	79 W
Power consumption (average operating)	950 W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	HP-UX 11.31, IBM AIX 7.2, Solaris 11
Server operating systems supported	Windows 2000 Server, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Faxing	Mono faxing
Fax memory	4 MB
Modem speed	33.6 Kbit/s
Fax forwarding to	E-mail, Fax
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 85 %
PCL fonts	83
Printer fonts	PCL, PostScript
Printing colors	Black
Maximum duty cycle	300000 pages per month
Recommended duty cycle	0 - 30000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Page description languages	HP-GL, PCL 5e, PCL 6, PostScript 3
Paper input type	Paper tray
Total input capacity	700 sheets
Total output capacity	400 sheets
Maximum input capacity	3250 sheets
Multi-Purpose tray input capacity	150 sheets
Auto document feeder (ADF) input capacity	100 sheets
Cables included	Phone
Browser supported	Microsoft Internet Explorer, Microsoft Edge, Mozilla, Firefox, Apple Safari, Google Chrome
Languages support	CAT, CZE, DAN, DEU, ENG, ESP, FIN, FRE, GRE, HUN, ITA, NOR, POL, POR, RUM, RUS, SWE, TUR, UKR
Printer management	DHCP, SNMP, WINS, HTTP, HTTPS, TLS, SNTP, MDNS

Weight and Dimensions

Depth	502.8 mm
Width	470 mm
Height	643.7 mm
