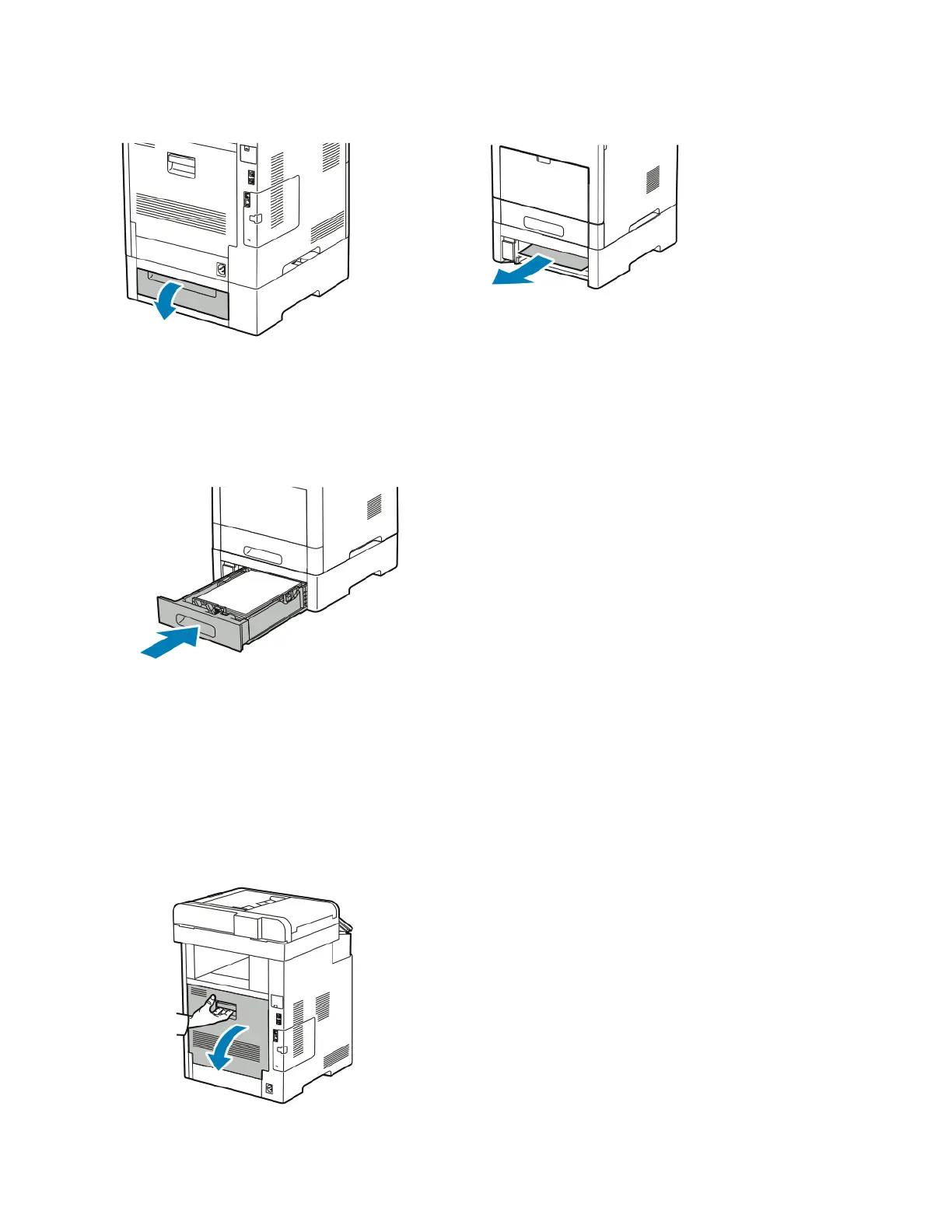

4. For the same tray, at the back of the printer, locate the jam-access door. Open the door, then remove
any jammed paper.
5. Re-insert the paper tray into the printer, then push the tray in until it stops.
Note
If the tray is extended for legal-size paper, the tray protrudes when it is inserted into the printer. If
removed in a previous step, replace the tray cover.
6. When paper traysare set to FullyAdjustable, you are prompted to verifyor change the paper settings.
a) To confirm the same paper size, type, or color, touch OK.
b) To select a new paper size, type, or color, touch the current setting, then select a new setting.
When finished, touch OK.
Clearing Paper Jams from the Fuser Area
To resolve the error displayed on the control panel, clear all paper from the paper path.
1. Lift the rear door release and pull open the door.
