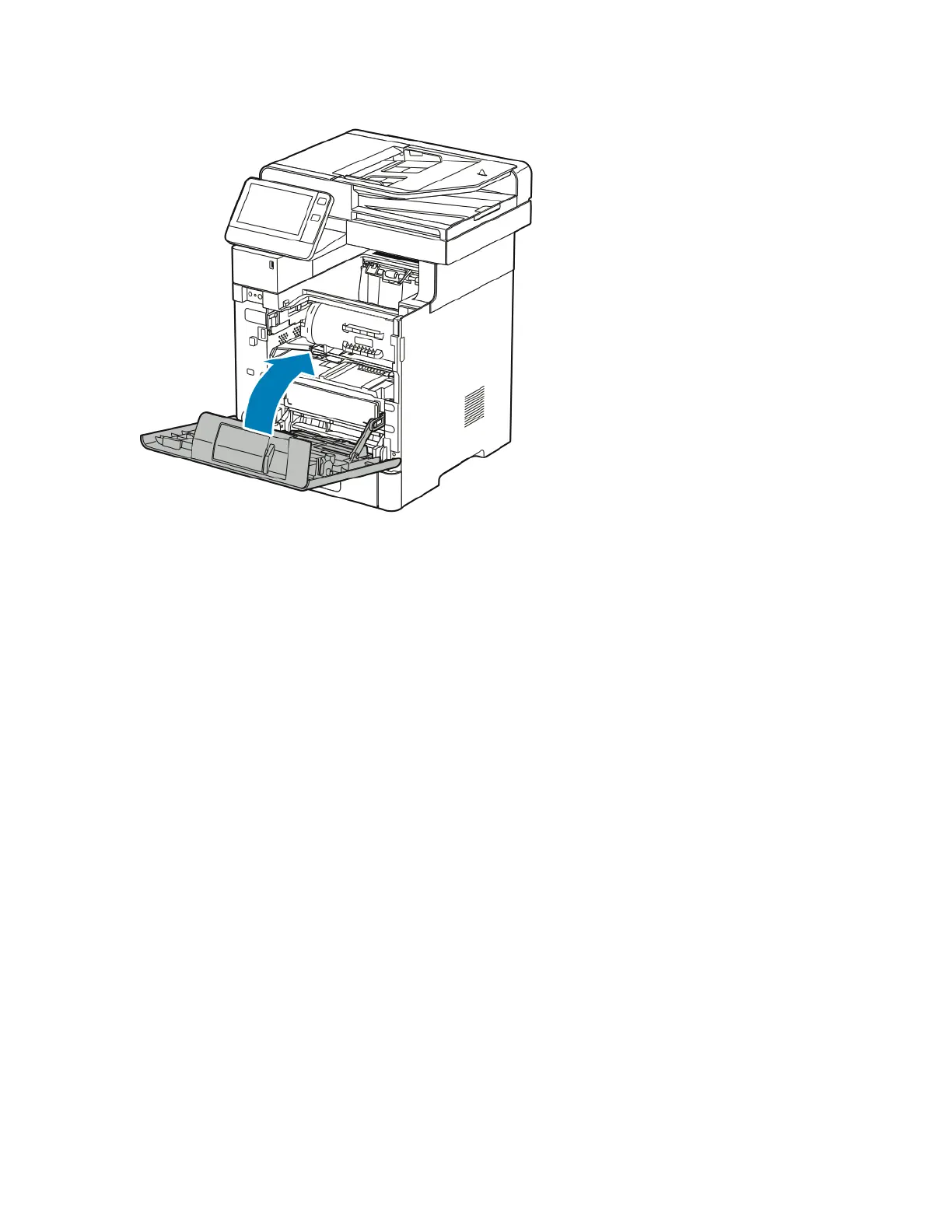

11. Close the Front Door.
Adjustments and Maintenance Procedures
Adjusting Paper Registration
Use Adjust Paper Registration to adjust the placement of the printed image on the page. The adjustment
allows you to place the top, bottom, left, and right margins exactly where you want. You can specify the
image position on both the front and back sides of the paper, for each installed paper tray.
Verifying Paper Registration
1. At the printer control panel, press the Home button.
2. Log in as administrator. For details, refer to the System Administrator Guide at
www.xerox.com/office/VLB605_VLB615docs.
3. Touch Device > Support > Image Position.
4. Select the source paper tray for the registration print.
a. Touch Paper Supply.
b. Touch the desired tray.
5. If your printer has automatic 2-sided printing, select the sides that you want to optimize.
• To select a sample registration page for adjusting side 1, touch Adjusted Side, then touch Side 1.
• To select a sample registration page for adjusting both sides, touch Adjusted Side, then touch
Side 2.
6. Specify the consecutive number of sample pages to print.
a. Touch Print Settings.
Xerox
®
VersaLink
®
B605/B615 Multifunction Printer7-10
User Guide
Maintenance

Xerox VersaLink B615 Specifications

General

N-up printing	2, 4, 6, 8, 9, 16
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Warm-up time (from sleep mode)	47 s
Time to first page (black, normal)	3.7 s
Print speed (black, normal quality, A4/US Letter)	63 ppm
Duplex print speed (black, normal quality, A4/US Letter)	56 ppm
Custom media width	76 - 190 mm
Custom media length	216 - 356 mm
Duplex media weight	60 - 176 g/m²
Paper tray media types	Bond paper, Card stock, Envelopes, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
Paper tray media weight	60 - 128 g/m²
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
USB connector	USB Type-A / USB Type-B
Standard interfaces	Ethernet, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
Wi-Fi	-
Cabling technology	10/100/1000Base-T(X)
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, IPPS, IPSec, SNMPv3, SSL/TLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service, Xerox PrintBack
Supported network protocols (IPv4)	TCP/IP:HTTP/HTTPS, InternetPrintingProtocol, LPR/LPD, RawSocketPrinting/Port9100, IPv4/IPv6, WSD, LDAP, Bonjour/AirPrint, FTP
Supported network protocols (IPv6)	IPv6
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.3 s
Copy speed (black, normal quality, A4)	65 cpm
Processor cores	2
Processor family	ARM
Card reader integrated	No
Internal storage capacity	320 GB
Sound power level (standby)	43 dB
Sound power level (printing)	70 dB
Sound pressure level (standby)	29 dB
Sound pressure level (printing)	58.3 dB
Control type	Touch
Product color	Blue, White
Market positioning	Business
Scan to	E-mail, FTP, File, USB
Scan drivers	TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Output color depth	24 bit
Duplex scanning mode	Auto/Manual
Output grayscale depth	8 bit
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Sustainability certificates	ENERGY STAR
Power consumption (off)	0.2 W
Power consumption (sleep)	0.88 W
Power consumption (standby)	79 W
Power consumption (average operating)	950 W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	HP-UX 11.31, IBM AIX 7.2, Solaris 11
Server operating systems supported	Windows 2000 Server, Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Faxing	Mono faxing
Fax memory	4 MB
Modem speed	33.6 Kbit/s
Fax forwarding to	E-mail, Fax
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Storage temperature (T-T)	0 - 35 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 85 %
PCL fonts	83
Printer fonts	PCL, PostScript
Printing colors	Black
Maximum duty cycle	300000 pages per month
Recommended duty cycle	0 - 30000 pages per month
Number of PostScript fonts	136
Number of print cartridges	1
Page description languages	HP-GL, PCL 5e, PCL 6, PostScript 3
Paper input type	Paper tray
Total input capacity	700 sheets
Total output capacity	400 sheets
Maximum input capacity	3250 sheets
Multi-Purpose tray input capacity	150 sheets
Auto document feeder (ADF) input capacity	100 sheets
Cables included	Phone
Browser supported	Microsoft Internet Explorer, Microsoft Edge, Mozilla, Firefox, Apple Safari, Google Chrome
Languages support	CAT, CZE, DAN, DEU, ENG, ESP, FIN, FRE, GRE, HUN, ITA, NOR, POL, POR, RUM, RUS, SWE, TUR, UKR
Printer management	DHCP, SNMP, WINS, HTTP, HTTPS, TLS, SNTP, MDNS

Weight and Dimensions

Depth	502.8 mm
Width	470 mm
Height	643.7 mm
