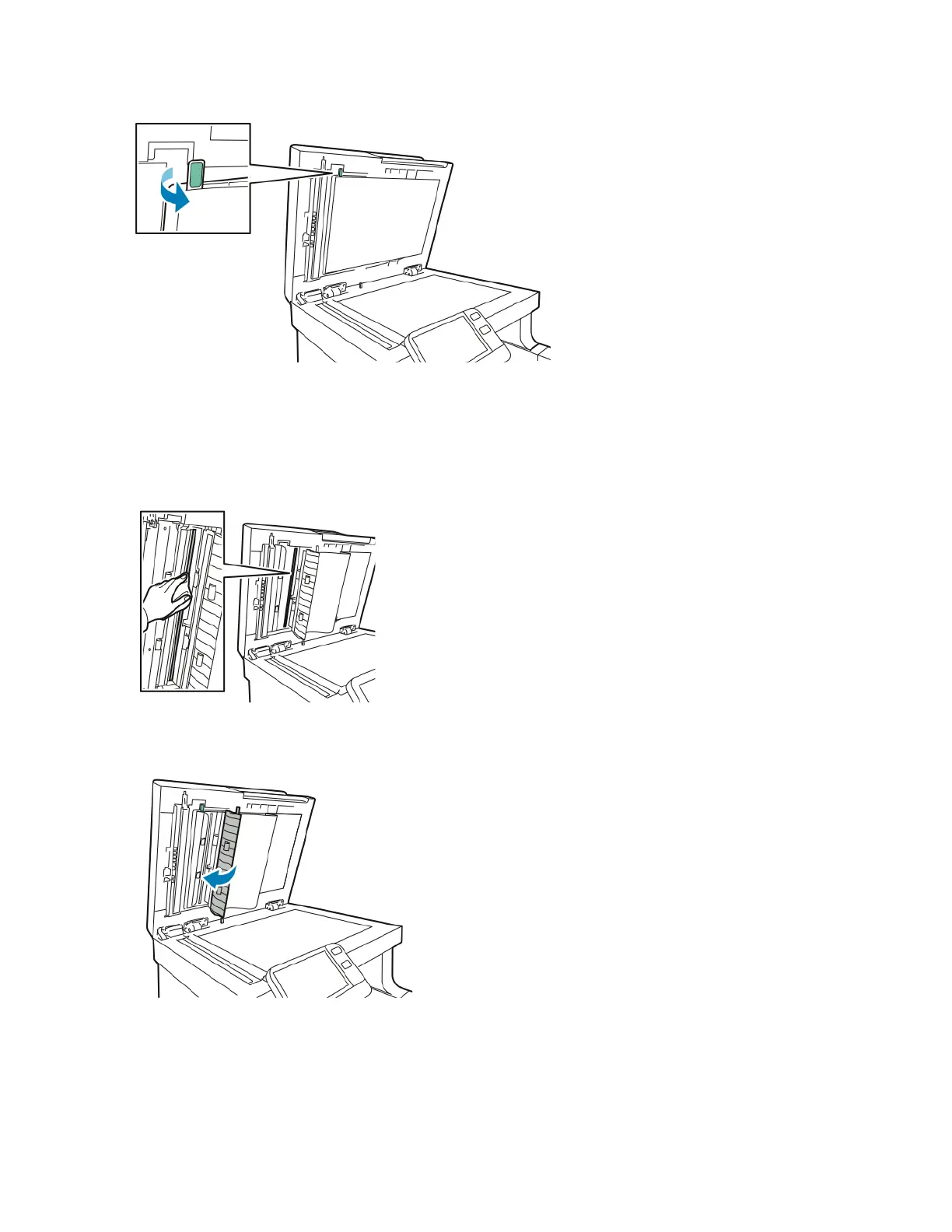

7. To access the second-side scanning lens assembly, lower the Second-Side Scanning Access Cover.
8. Using a soft cloth moistened with water, wipe the mirrored glass, the white-plastic strip, and the
rollers. If dirt is difficult to remove, moisten a soft cloth with a small amount of neutral detergent,
then wipe the printer parts dry with a soft cloth.
Note
To prevent damage to the film around the glass, do not press heavily on the mirrored glass.
9. Close the Second-Side Scanning Access Cover.
Xerox
®
VersaLink
®
B605/B615 Multifunction Printer7-4
User Guide
Maintenance
