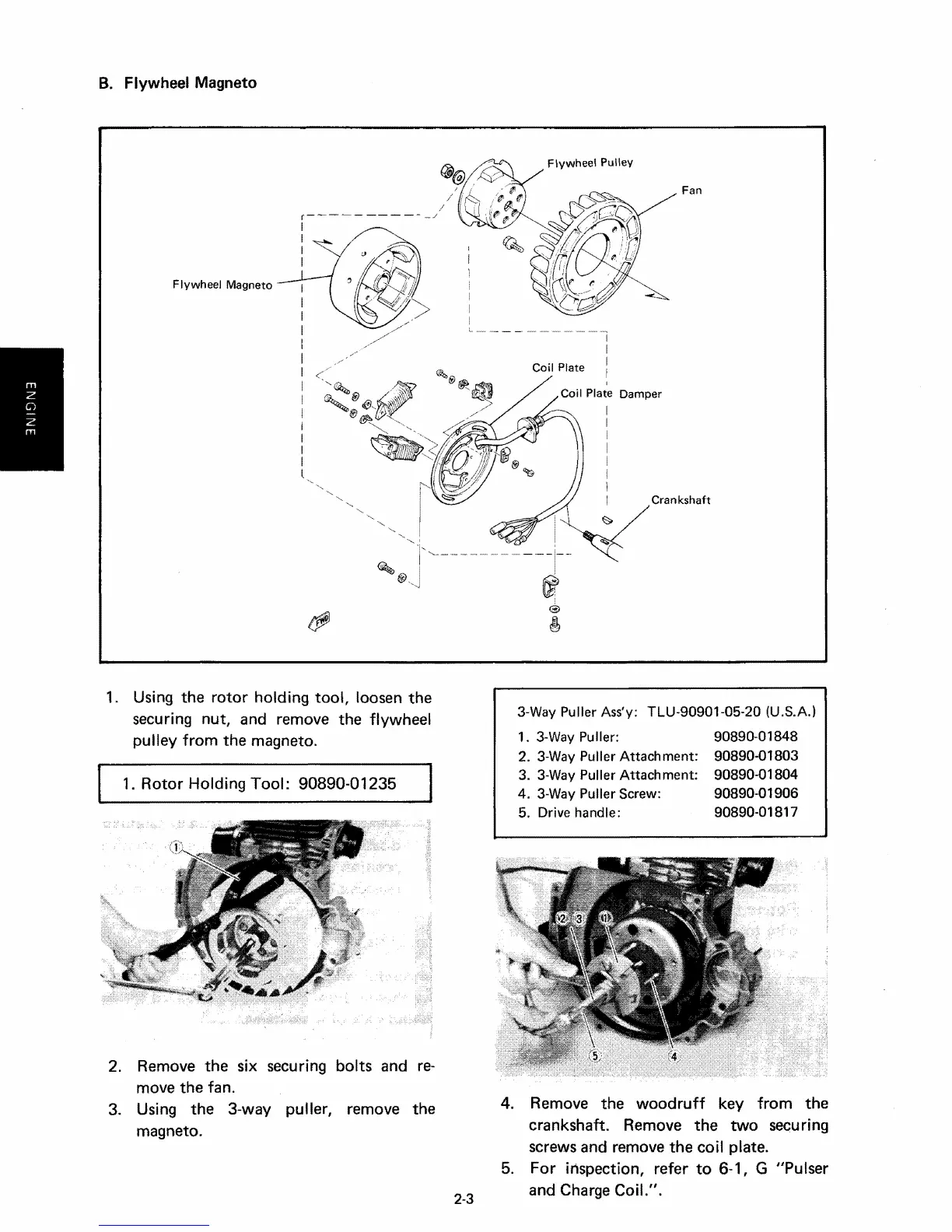

B. Flywheel Magneto
Flywheel Magneto
Fan
1. Using the rotor holding tool, loosen the
securing nut, and remove the flywheel
pulley
from the magneto.
1. Rotor Holding Tool: 90890-01235
2. Remove the six securing bolts and
re-
move the fan.
3. Using the 3-way puller, remove the
magneto.
2-3
3-Way Puller Ass'y: TLU-90901-05-20 (U.S.A.)
1. 3-Way Puller:
90890-01848
2. 3-Way Puller Attachment: 90890-01803
3. 3-Way Puller Attachment: 90890-01804
4. 3-WayPuller Screw: 90890-01906
5. Drive handle: 90890-01817
4. Remove the woodruff key from the
crankshaft. Remove the
two securing
screws and remove the coil plate.
5.
For inspection, refer to 6-1, G "Pulser
and Charge
Coil.",
