Yamaha BR250F - Handlebar Switch (Right); Carburetor Switch

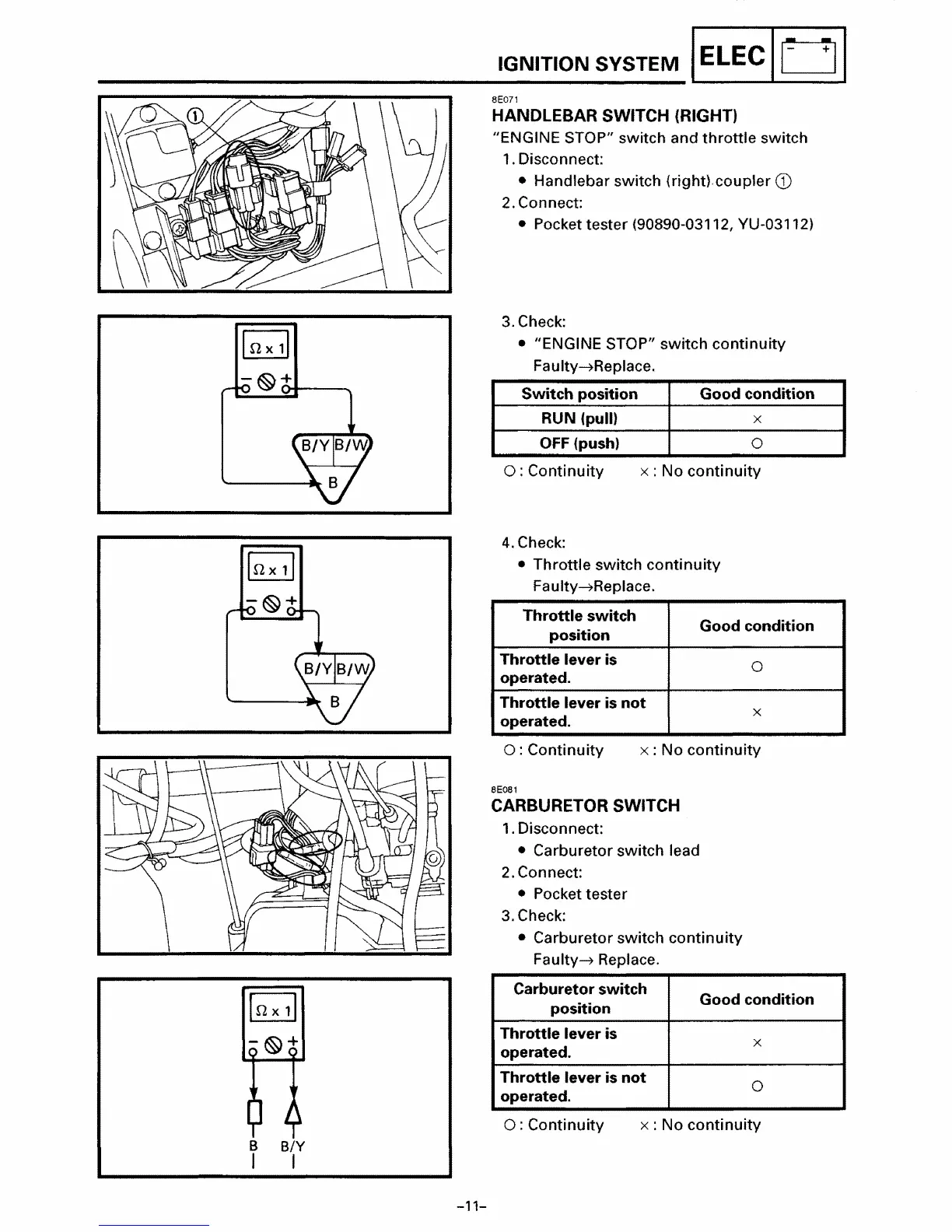

IGNITION SYSTEM I ELEC I0 I
8E071
HANDLEBAR SWITCH (RIGHT)
"ENGINE STOP" switch and throttle switch
1. Disconnect:
• Handlebar switch
(riqhtl.coupler G)
2. Connect:
• Pocket tester (90890-03112, YU-03112)
3. Check:
• "ENGINE STOP" switch
continuity
Faultv-efteplace.
Switch position
Good condition
RUN (pull)
x
OFF (push)
0
0: Continuity x : No continuity
4. Check:
• Throttle switch
continuity
FauIty-:)Replace.
Throttle switch
Good condition
position
Throttle lever is
0
operated.
Throttle lever is not
operated.
x
8E08l
CARBURETOR SWITCH
1.Disconnect:
• Carburetor switch lead
2. Connect:
• Pocket tester
3. Check:
• Carburetor switch
continuity
Faultv-s Replace.
Carburetor switch
Good condition
position
Throttle lever is
x
operated.
Throttle lever is not
0
operated.
-~+
I
() \:$I (
Ir '
o
B B/Y
I I
-11-
0: Continuity
0: Continuity
x: No continuity
x : No continuity
