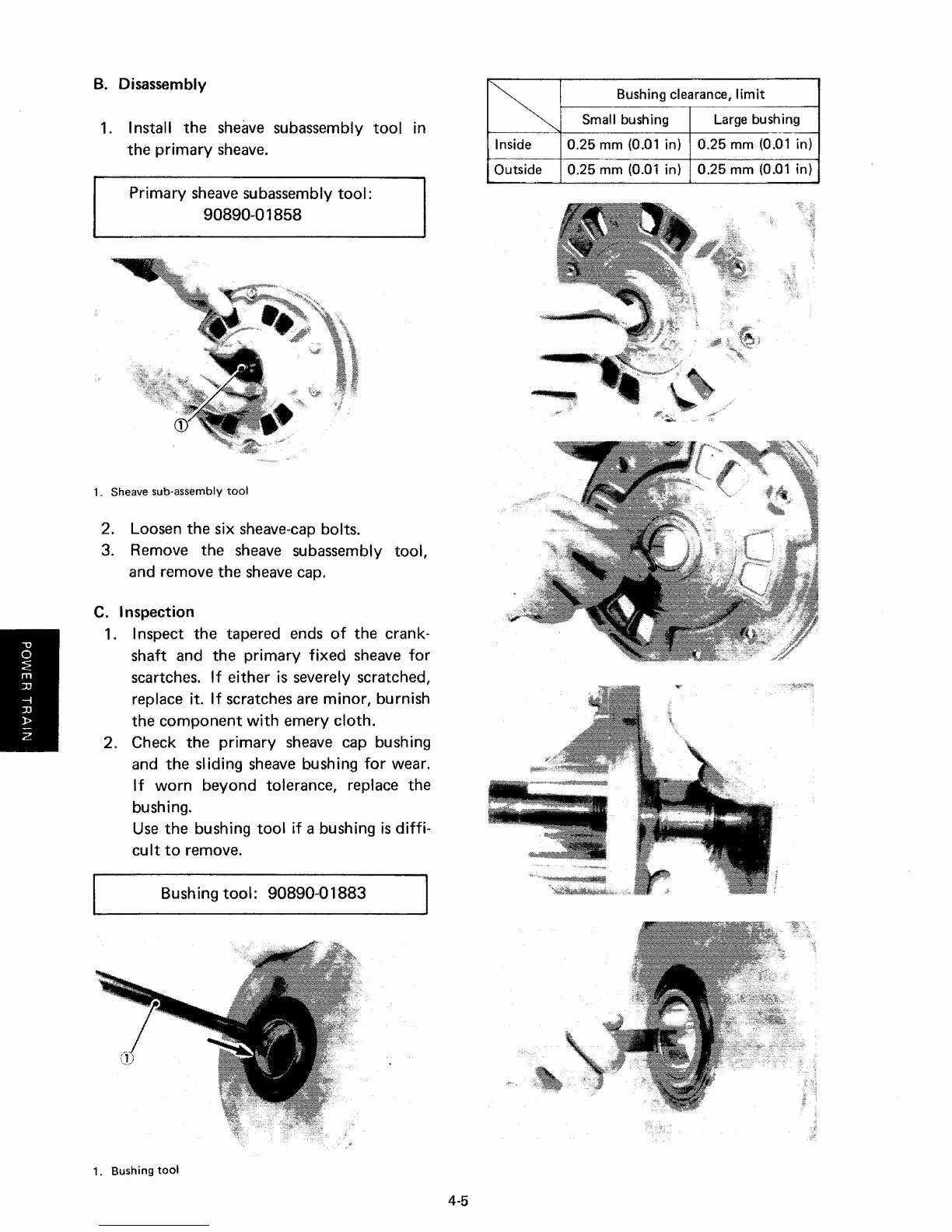

B. Disassembly
1. Install
the
sheave subassembly tool in
the
primary sheave.
Primary sheave subassembly tool:
90890-01858
1. Sheave sub-assembly
tool
2. Loosen
the
six sheave-cap bolts.
3. Remove
the
sheave subassembly tool,
and remove
the
sheave cap.
C. Inspection
1. Inspect
the
tapered ends
of
the
crank-
shaft
and
the
primary fixed sheave for
scartches. If
either
is severely scratched,
replace it. If scratches are minor, burnish
the
component
with
emery
cloth.
2. Check
the
primary sheave cap bushing
and
the
sliding sheave bushing
for
wear.
If worn
beyond
tolerance, replace
the
bushing.
Use
the
bushing tool if a bushing is diffi-
cult
to
remove.
Bushing
tool:
90890-01883
1. Bushing
tool
4-5
r.
Bushing clearance,
limit
Small bushing
Large bushing
Inside 0.25 mm (0.01 in)
0.25 mm (0.01 in)
Outside 0.25 mm (0.01 in)
0.25 mm (0.01 in)
