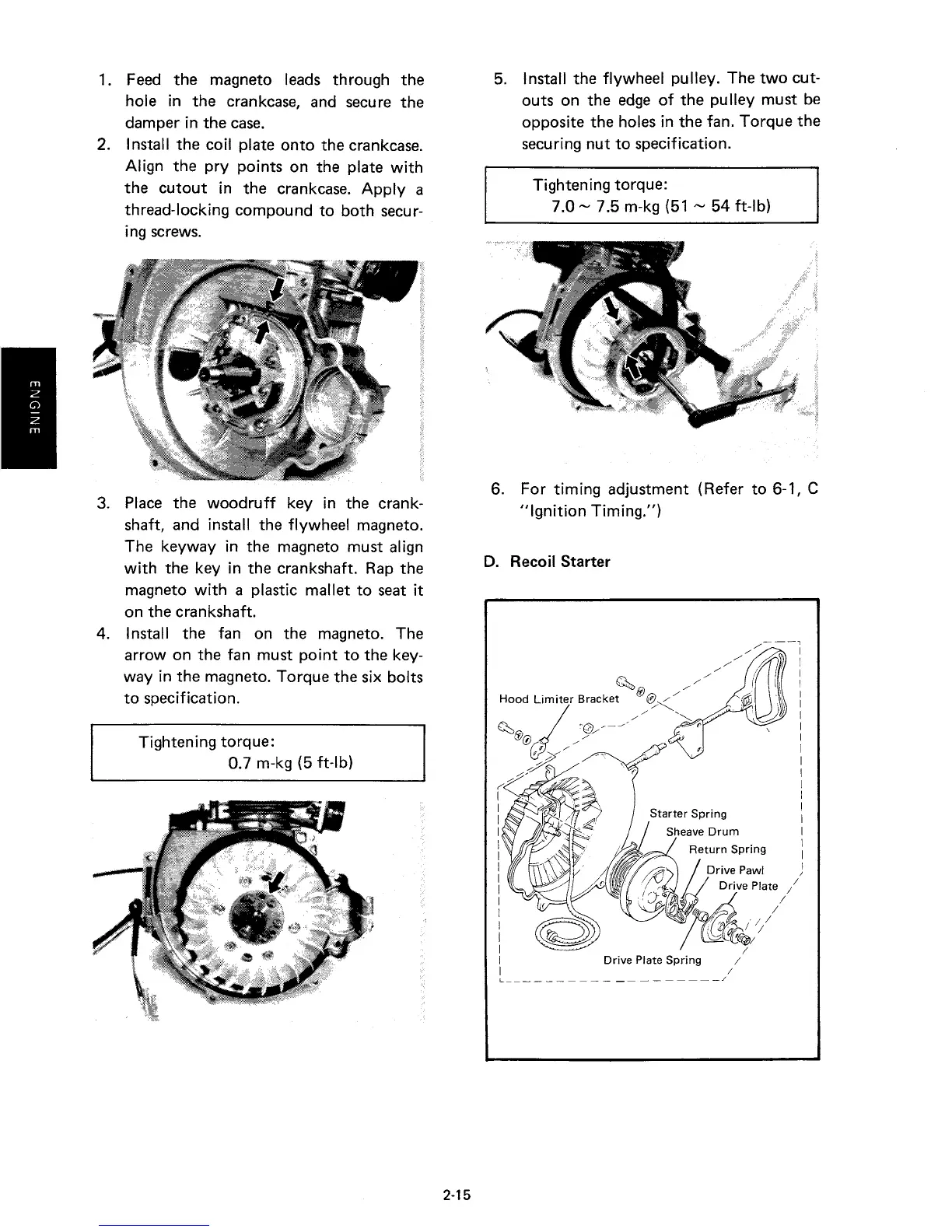

Yamaha BR250F - Recoil Starter

1. Feed the magneto leads through the
hole in the crankcase, and secure the
damper in the case.
2. Install
the coil plate onto the crankcase.
Align
the pry points on the plate with
the cutout in the crankcase. Apply a
thread-locking
compound to both secur-
ing screws.
3. Place
the woodruff key in the crank-
shaft,
and install the flywheel magneto.
The keyway in the magneto must align
with the key in the crankshaft. Rap the
magneto with a plastic mallet to seat it
on
the crankshaft.
4. Install
the fan on the magneto. The
arrow on the fan must point to the key-
way in
the magneto. Torque the six bolts
to specification.
Tightening
torque:
0.7 m-kg (5 ft-lb)
2-15
5. Install the flywheel pulley. The two cut-
outs on the edge of the pulley must be
opposite the holes in the fan. Torque the
securing nut to specification.
Tightening
torque:
7.0 - 7.5 m-kg (51 - 54 ft-lb)
6. For timing
adjustment (Refer to 6-1, C
"Ignition Timing.")
D. Recoil
Starter
