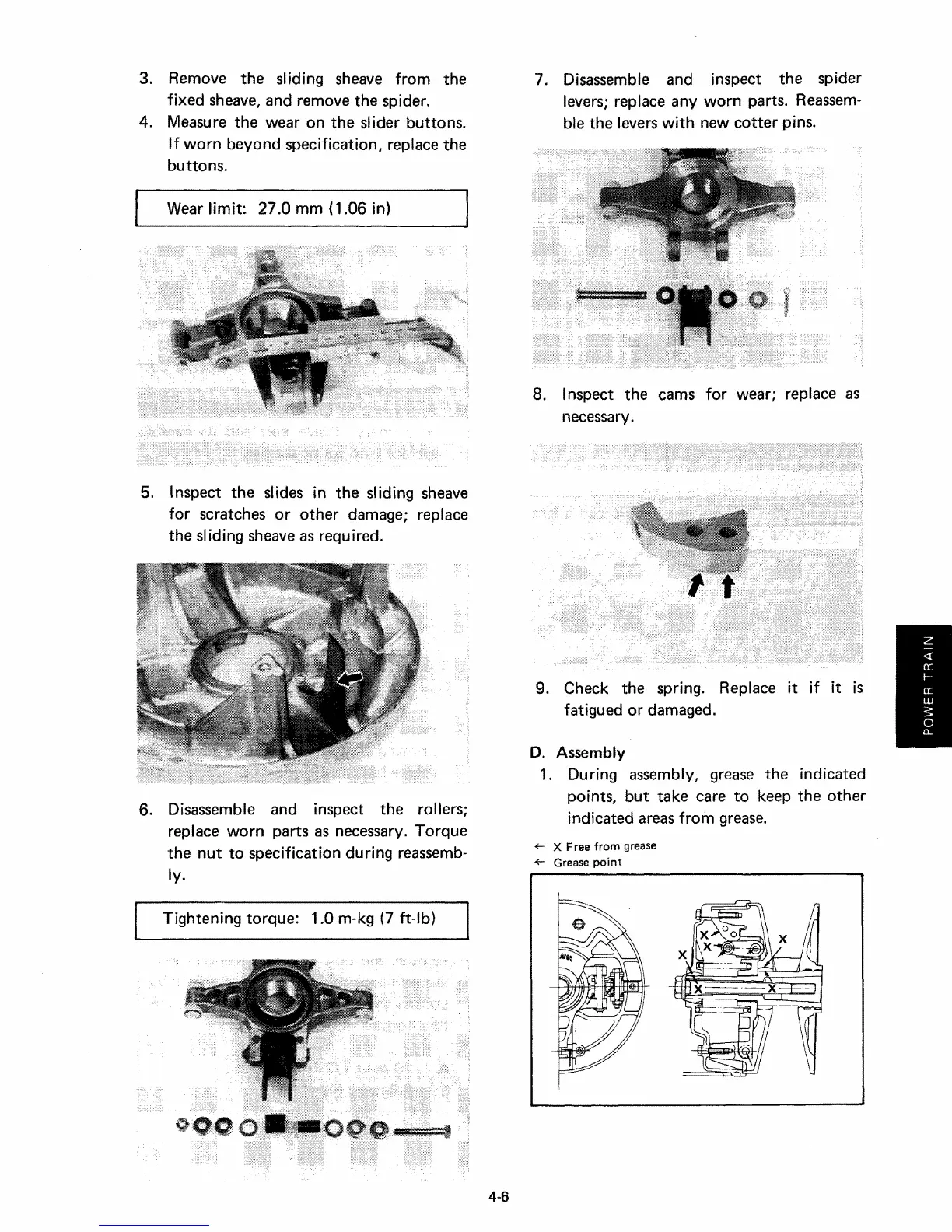

3. Remove the sliding sheave from the
fixed sheave, and remove the spider.
4. Measu re the wear on the slider buttons.
If worn beyond specification, replace the
buttons.
Wear limit: 27.0 mm (1.06 in)
5. Inspect the slides in the sliding sheave
for scratches or other damage; replace
the sliding sheave as required.
6. Disassemble and inspect the rollers;
replace
worn parts as necessary. Torque
the nut to specification during reassemb-
ly.
Tightening torque: 1.0 m-kq (7 ft-lb)
4-6
7. Disassemble and inspect the spider
levers; replace
any worn parts. Reassem-
ble
the levers with new cotter pins.
8. Inspect the cams for wear; replace as
necessary.
9. Check the spring. Replace it if it is
fatigued
or damaged.
D. Assembly
1. During assembly, grease the indicated
points,
but take care to keep the other
indicated areas from grease.
+- X Free from grease
+- Grease point
