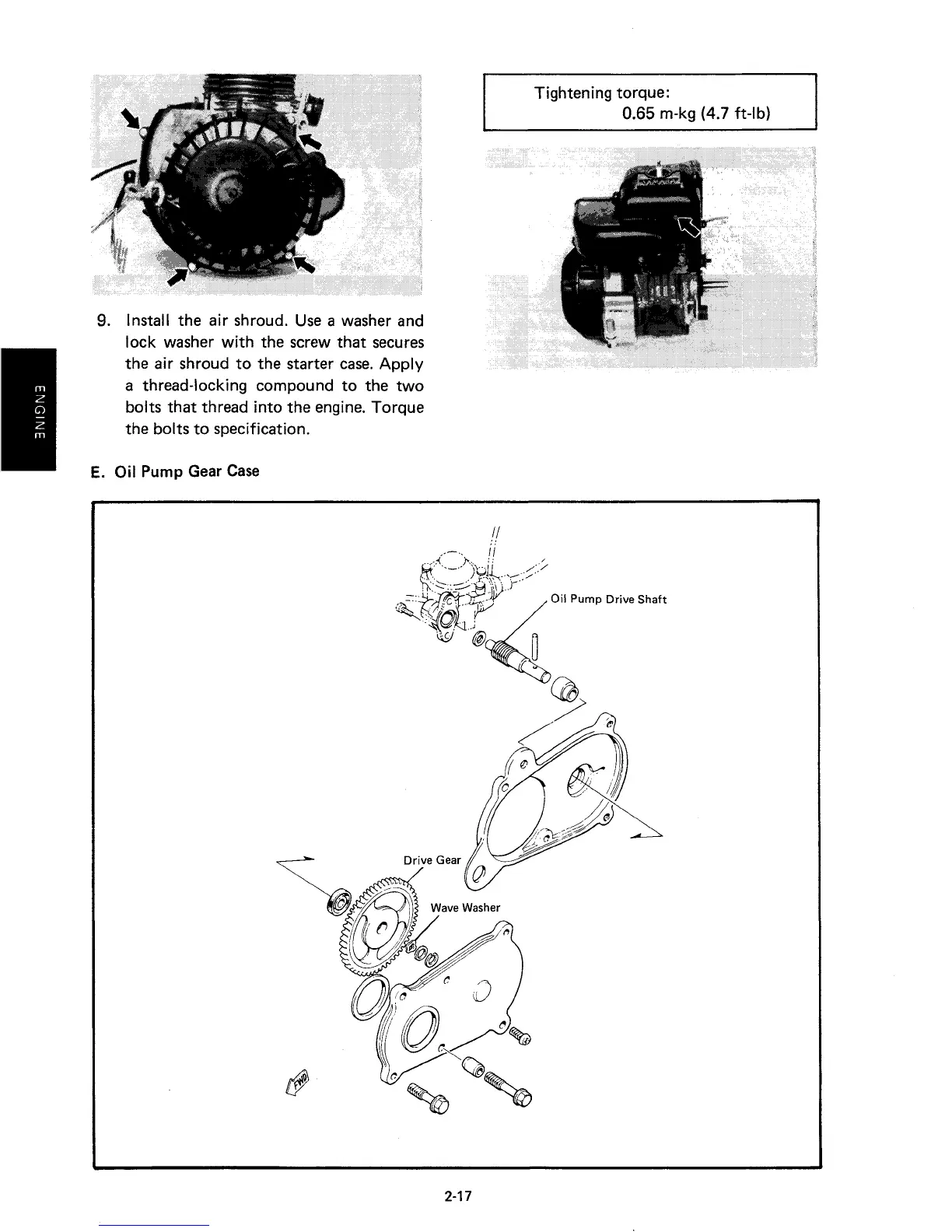

Yamaha BR250F - Oil Pump Gear Case

9. Install the air shroud. Use a washer and
lock washer with
the screw that secures
the air shroud to the starter case. Apply
a thread-locking compound to
the two
bolts
that thread into the engine. Torque
the bolts to specification.
E. Oil Pump Gear Case
Tightening torque:
0.65 m-kg (4.7 ft-lb)
2-17
