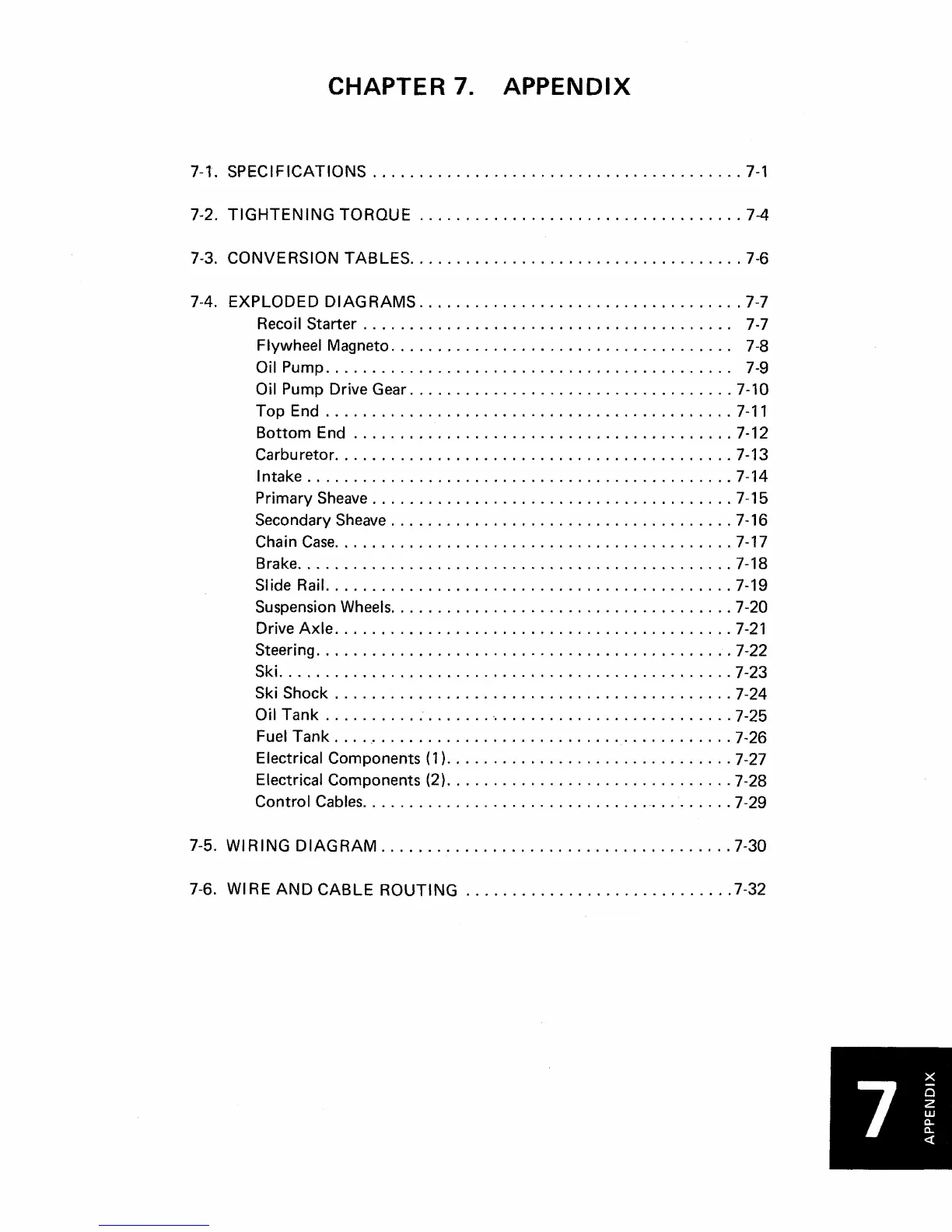

CHAPTER 7. APPENDIX
7-1. SPECIFICATIONS 7-1
7-2. TIGHTENING TORQUE 7-4
7-3. CONVERSION TABLES 7-6
7-4. EXPLODED DIAGRAMS 7-7
Recoil Starter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 7-7
Flywheel Magneto. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 7-8
Oil Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 7-9
Oil Pump Drive Gear 7-10
Top End 7-11
Bottom End 7-12
Carburetor 7-13
Intake
7-14
Primary Sheave 7-15
Secondary Sheave
7-16
Chain Case 7-17
Brake 7-18
Slide Rail.
7-19
Suspension Wheels 7-20
Drive Axle 7-21
Steering 7-22
Ski. 7-23
Ski Shock
7-24
Oil Tank ' 7-25
Fuel Tank " 7-26
Electrical Components (1) 7-27
Electrical Components (2) 7-28
Control Cables 7-29
7-5.
WIRING DIAGRAM 7-30
7-6. WI RE
AND CABLE ROUTING 7-32
