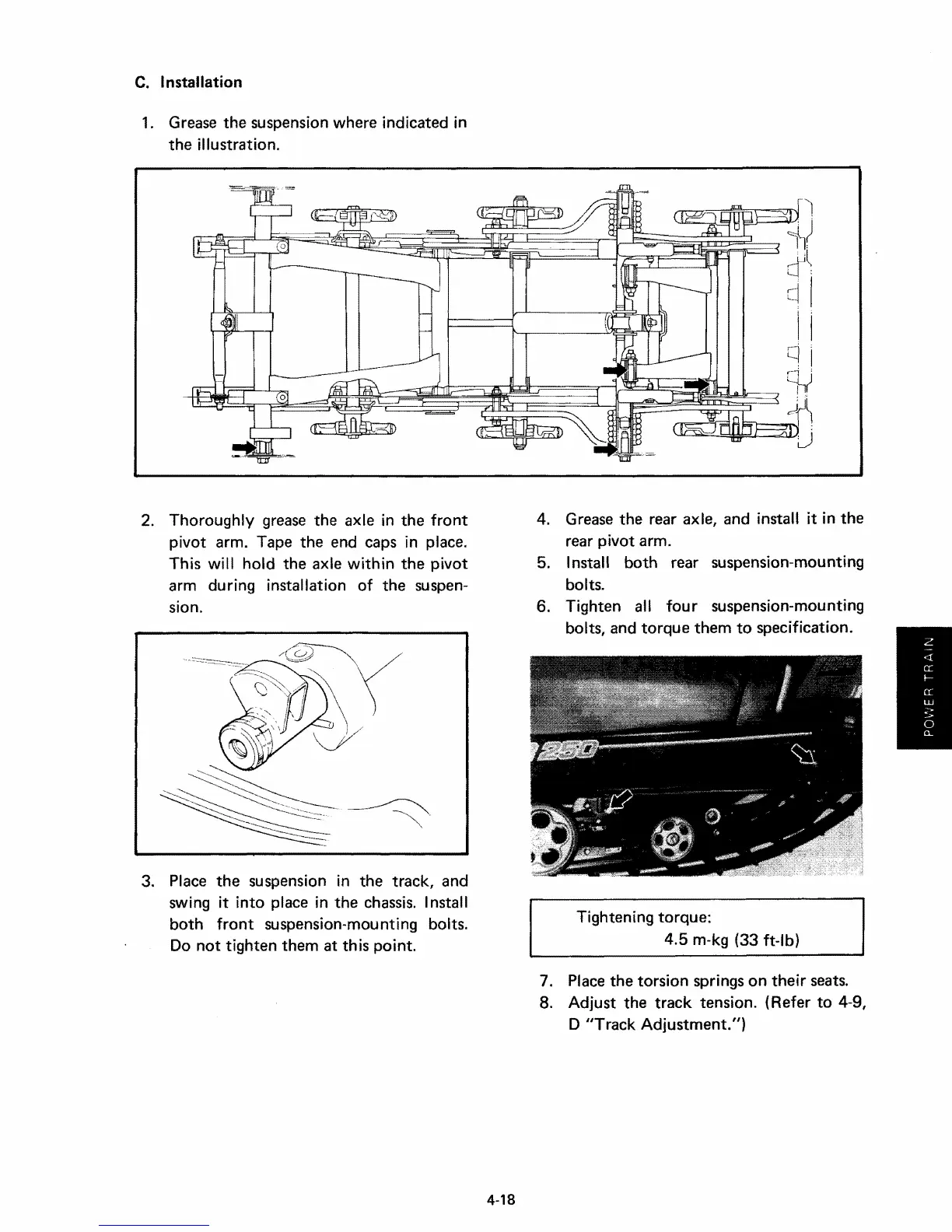

C. Installation
1. Grease the suspension where indicated in
the illustration.
2. Thoroughly grease
the axle in the front
pivot arm. Tape the end caps in place.
This will hold
the axle within the pivot
arm during installation of
the suspen-
sion.
3. Place
the suspension in the track, and
swing it into place in
the chassis. Install
both front suspension-mounting bolts.
Do
not tighten them at this point.
4-18
4. Grease the rear axle, and install it in the
rear pivot arm.
5. Install both rear suspension-mounting
bolts.
6. Tighten all four suspension-mounting
bolts, and
torque them to specification.
Tightening torque:
4.5 rn-kq {33 ft-lb)
7. Place
the torsion springs on their seats.
8. Adjust the track tension. {Refer
to 4-9,
D "Track Adjustment."}
