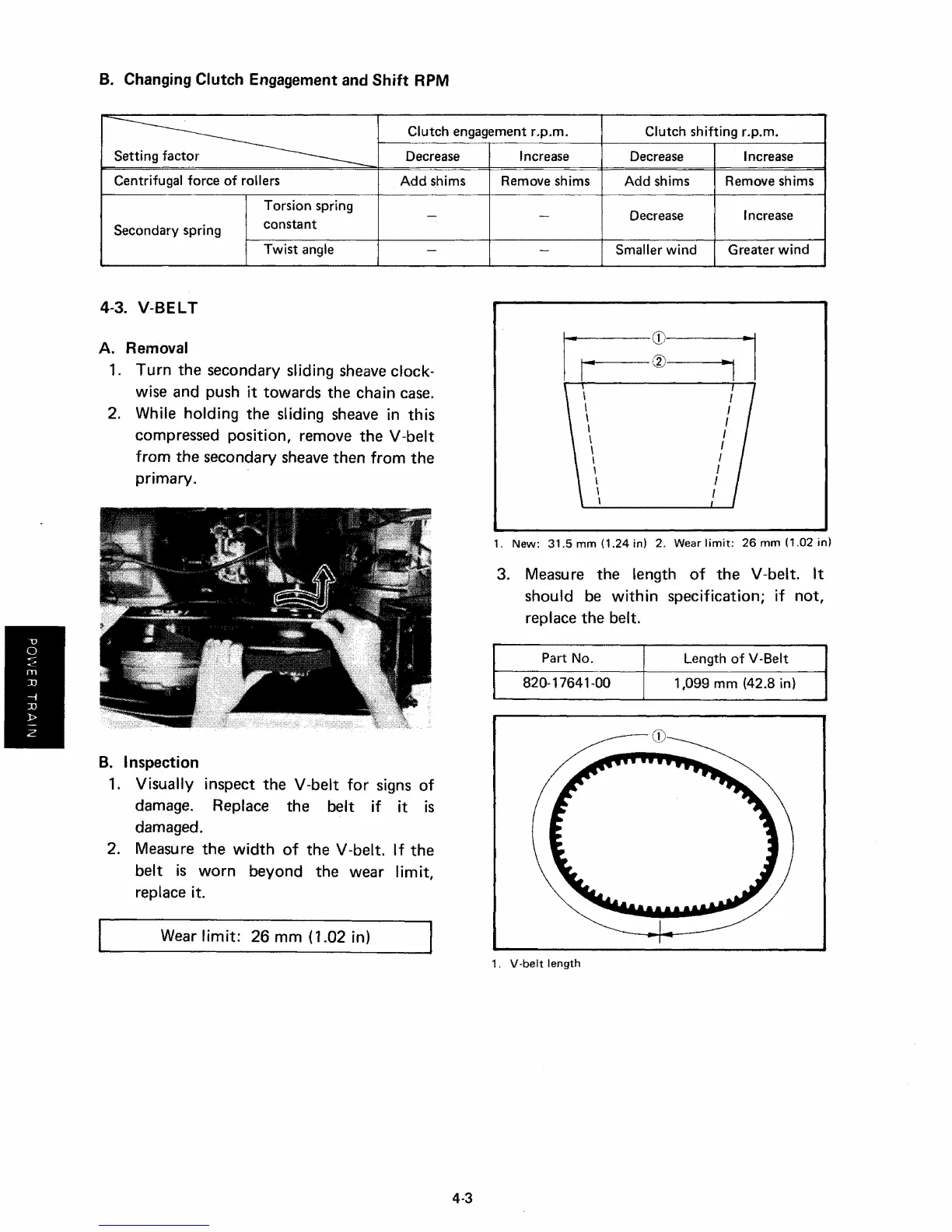

B. Changing Clutch Engagement and
Shift
RPM
~
Clutch engagement r.p.m. Clutch shifting r.p.m,
Decrease
Increase
Decrease
Increase
Centrifugal force of rollers
Add
shims
Remove shims
Add shims Remove shims
Torsion spring
-
-
Decrease
Increase
Secondary
spring
constant
Twist angle
- - Smaller
wind
Greater
wind
1. New:
31.5
mm (1.24 in) 2. Wear
limit:
26 mm (1.02 in)
Length
of
V-Belt
1,099 mm (42.8 in)
Part No.
820-17641-00
3. Measure
the
length
of
the
V-belt.
It
should be within specification; if
not,
replace
the
belt.
Wear limit:
26
mm (1.02 in)
4-3. V-BELT
A. Removal
1.
Turn
the
secondary sliding sheave clock-
wise
and
push it
towards
the
cha
in case.
2. While holding
the
sliding sheave in
this
compressed position, remove
the
V-belt
from
the
secondary sheave
then
from
the
primary.
B. Inspection
1. Visually inspect
the
V-belt for signs of
damage. Replace
the
belt if it is
damaged.
2. Measure
the
width
of
the
V-belt. If
the
belt
is
worn
beyond
the
wear
limit,
replace it.
1.
V-belt
length
4-3
