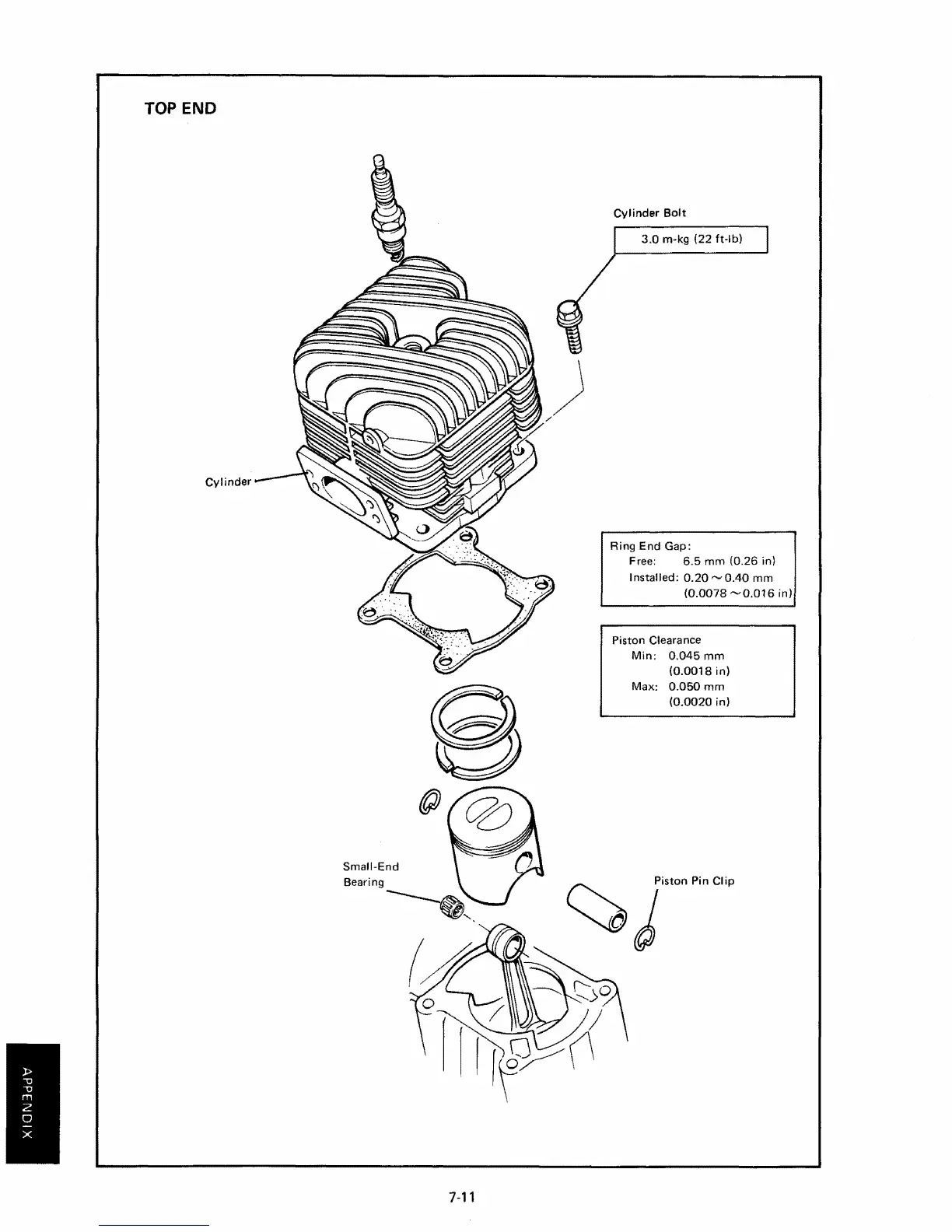

TOP
END
Cylinder
7-11
Cylinder
Bolt
3.0 m-kg (22
ft-Ib)
Ring End Gap:
Free: 6.5 mm (0.26 in)
Installed:
0.20
'"
0.40
mm
(0.0078
'"'-'0.016 in)
Piston Clearance
Min:
0.045
mm
(0.0018
in)
Max:
0.050
mm
(0.0020
in)
