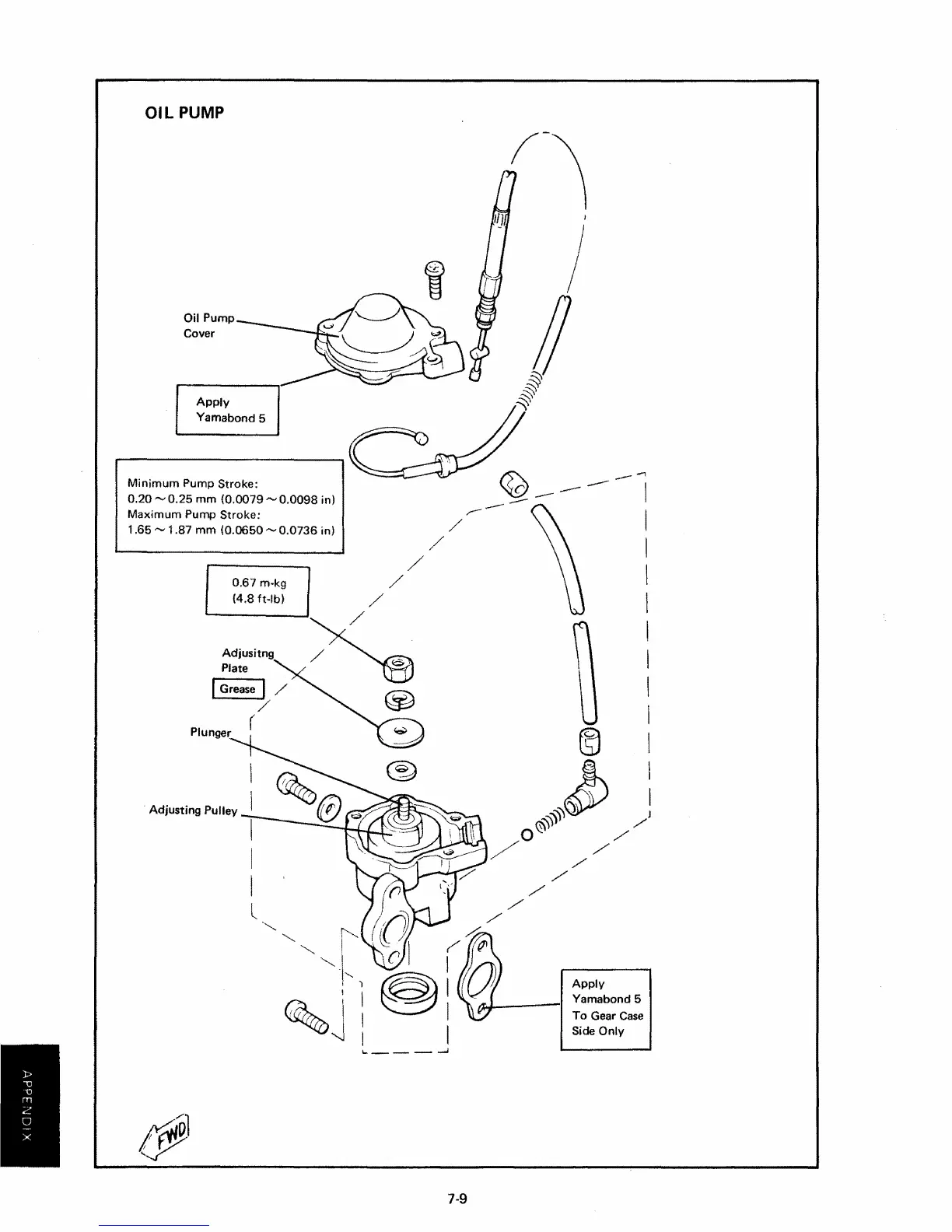

OIL PUMP
Apply
Yamabond 5
To Gear Case
Side Only
Apply
Yamabond 5
0.67 m-kg
(4.8
ft-Ib)
Adjusitng
Plate
IGrease I /
/
Plunger (
Oil Pump
Cover
Minimum Pump Stroke:
0.20-0.25 mm <0.0079-0.0098 in)
Maximum Pump Stroke:
1.65 - 1.87 mm <0.0650 - 0.0736 in)
7-9
