Yamaha BR250F - Secondary Sheave; Removal

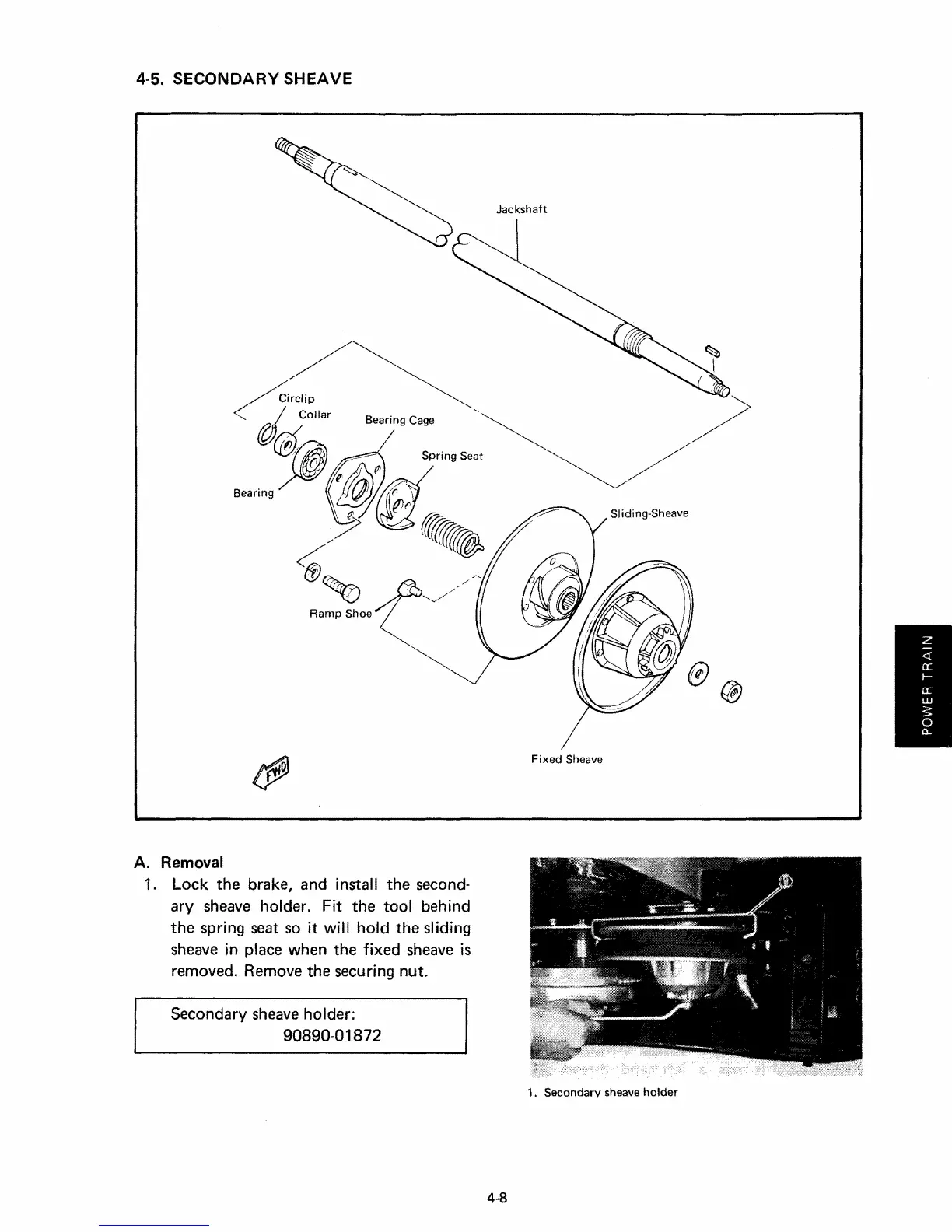

~5. SECONDARY SHEAVE
Ramp Shoe
.--
~jrCliP
<: d. Colla, Bearlnq Cage '
. ~~~ ~ '" Spdng Seat
B"",ong ~ ~Irl
/3!!J; (J;;;1 fir.
,'7 ~~
~
~
Fixed Sheave
A. Removal
1. Lock the brake, and install the
second-
ary sheave holder. Fit the tool behind
the spring seat so it will hold the sliding
sheave in place when the fixed sheave is
removed. Remove the securing nut.
Secondary
sheave holder:
90890-01872
1. Secondary sheave holder
