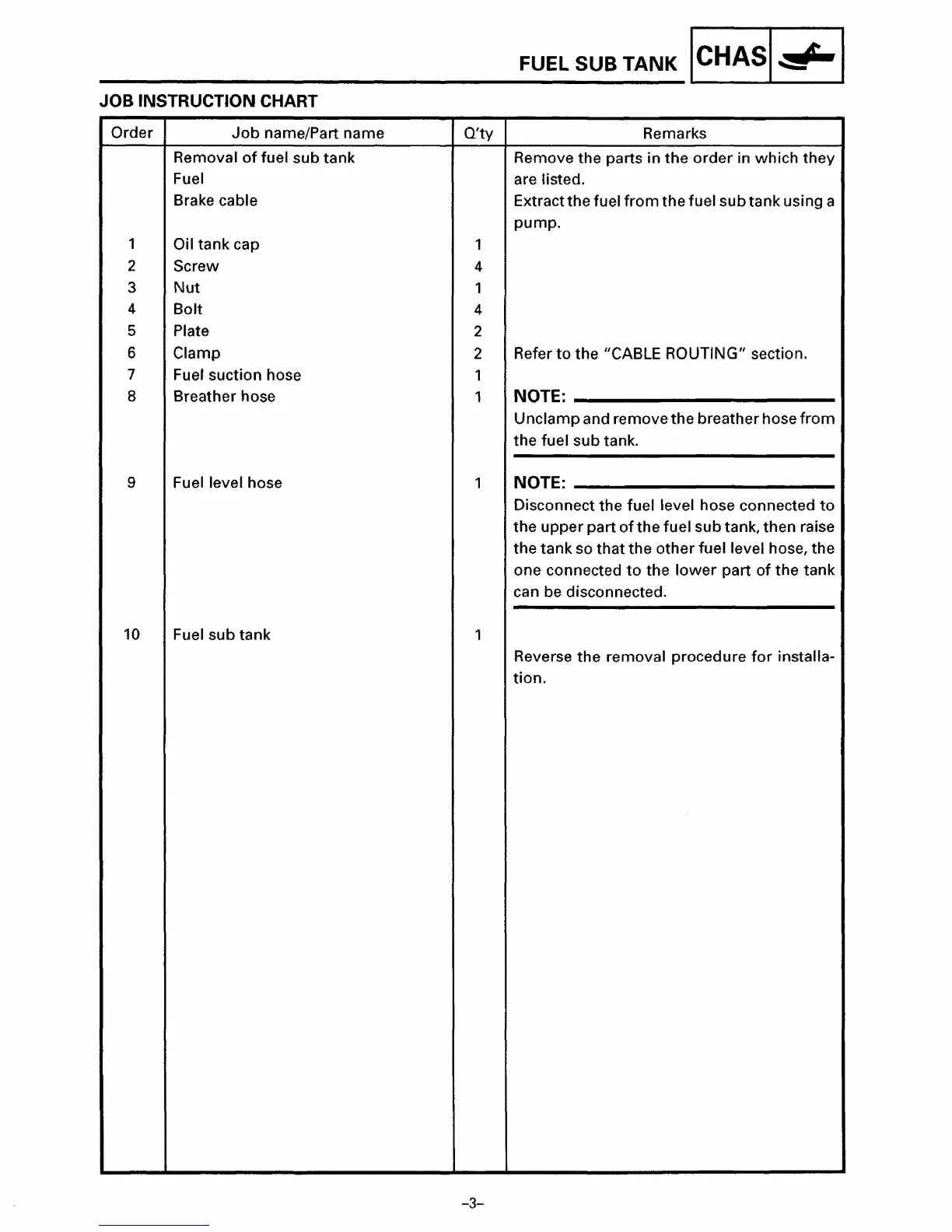

JOB INSTRUCTION CHART
FUEL SUB TANK ICHASI ~ I
Order
Job name/Part name
Q'ty
Remarks
Removal
of fuel sub tank
Remove the parts in the order in which they
Fuel
are listed.
Brake cable
Extract
the fuel from the fuel sub tank usi n9 a
pump.
1
Oil tank cap
1
2
Screw
4
3 Nut
1
4
Bolt
4
5
Plate
2
6 Clamp
2 Refer to the "CABLE ROUTING" section.
7
Fuel suction hose
1
8 Breather hose
1 NOTE:
Unclamp and remove the breather hose from
the fuel sub tank.
9 Fuel level hose
1 NOTE:
Disconnect the fuel level hose connected to
the upper part of the fuel sub tank, then raise
the tank so that the other fuel level hose, the
one connected to the lower part of the tank
can be disconnected.
10
Fuel sub tank
1
Reverse the removal procedure for installa-
tion.
