178.4 mm
(7.1 in)
63mm
(2.5
in)
138.6
mm
(5.5
in)
105.6
mm
(4.2
in)
Axle
Nut
I 8.0 m-kg (58
ft-lb)
Bearing Cage

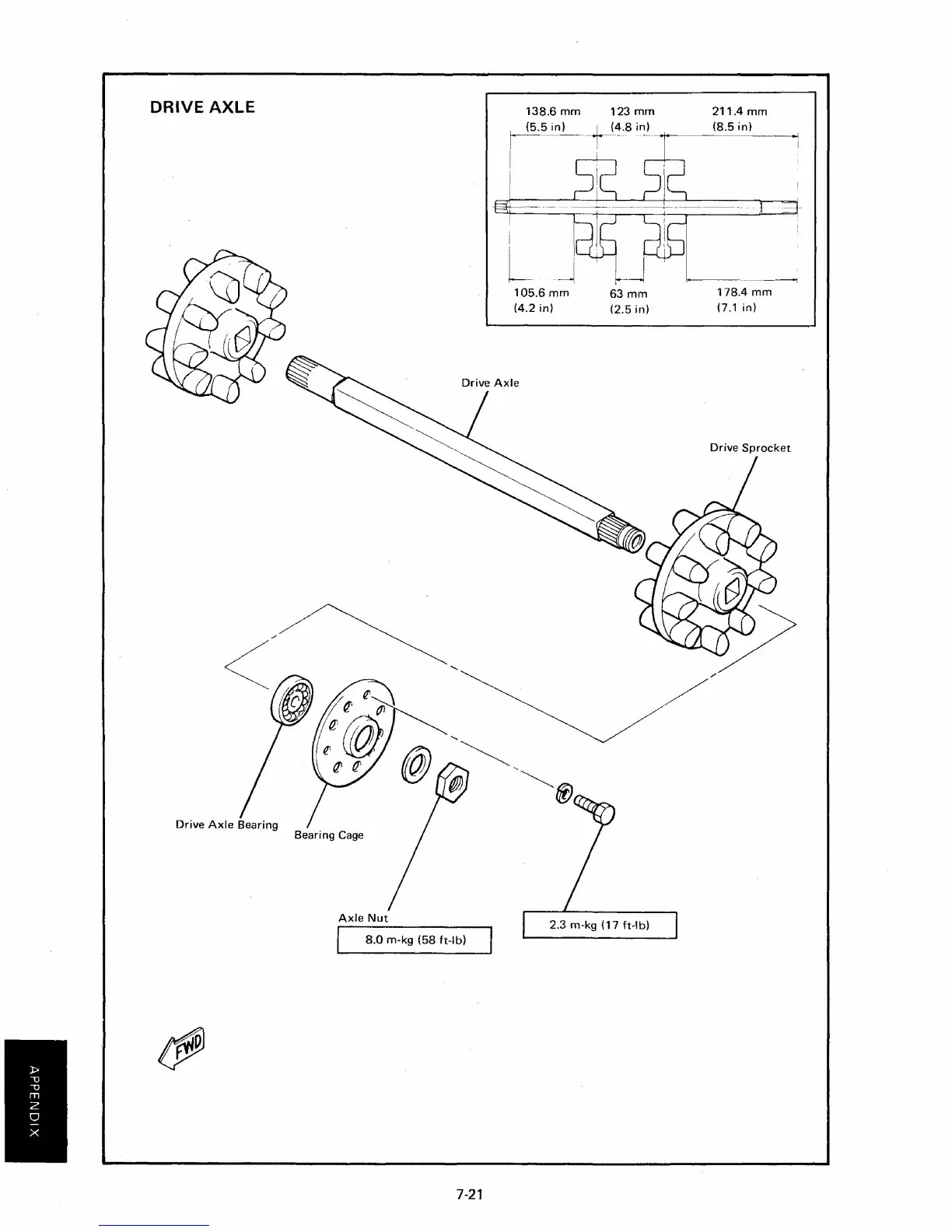

DRIVE AXLE
7-21
