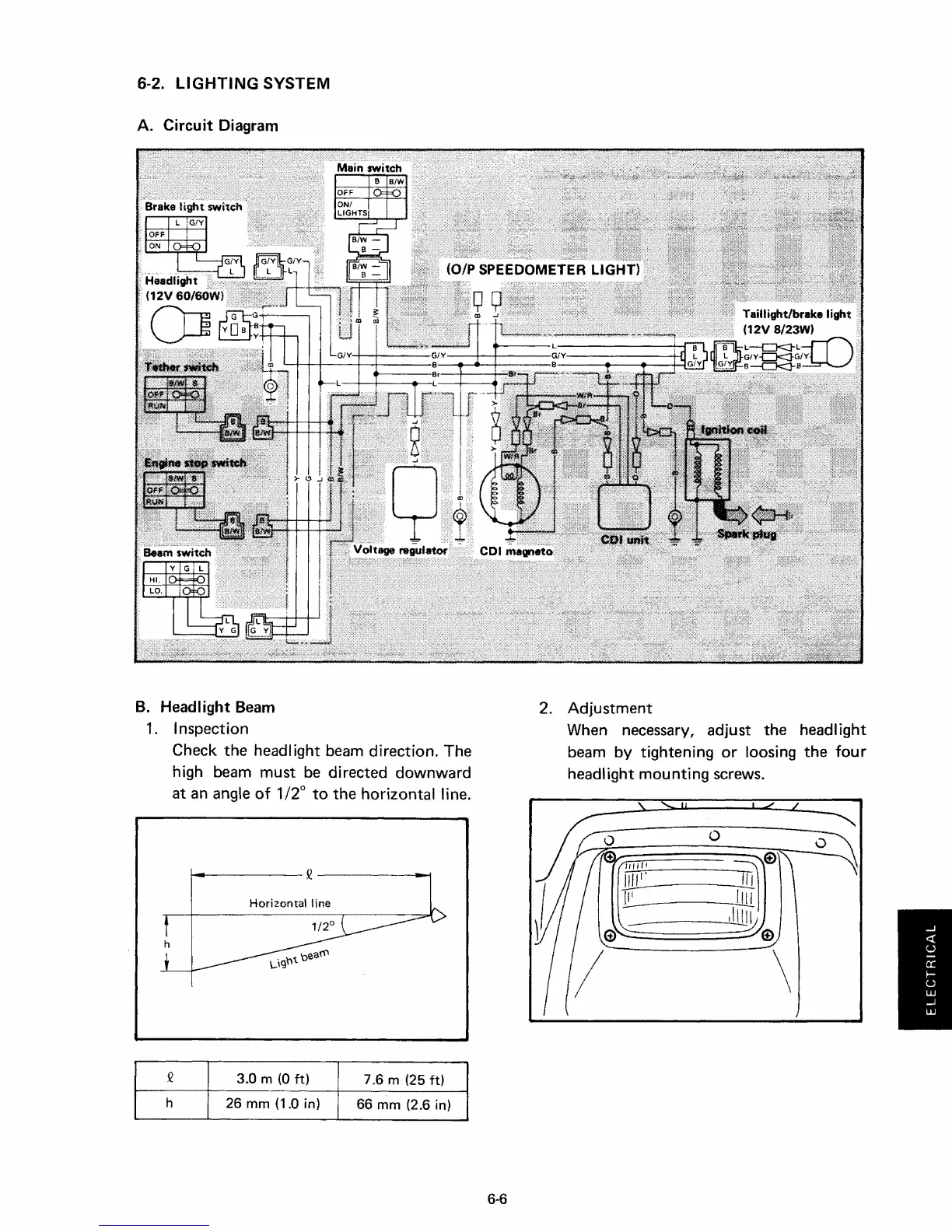

6-2. LIGHTING SYSTEM
A. Circuit Diagram
B. Headlight Beam
1. Inspection
Check the headlight beam direction. The
high beam must be directed downward
at an angle
of 1/2
0
to the horizontal line.
2. Adjustment
When necessary, adjust the headlight
beam by tightening
or loosing the four
headlight mounting screws.
~----- Q ------ __ -4
Horizontal line
h
Q
3.0 m (0 ft)
7.6 m (25 ft)
h
26 mm (1.0 in)
66 mm (2.6 in)
6-6
