Features and benefits
1
Fuel system
A pressure regulator is built into the vapor separator to obtain compact and simple fuel delivery
structure.
A plastic fuel rail is used to prevent it from corrosion and for light weight.
Fuel discharged from the pressure regulator returns to the vapor separator after cooling down
through the fuel cooler.
The fuel joint is used on the high pressure fuel hose to remove and/or install the intake unit easily.

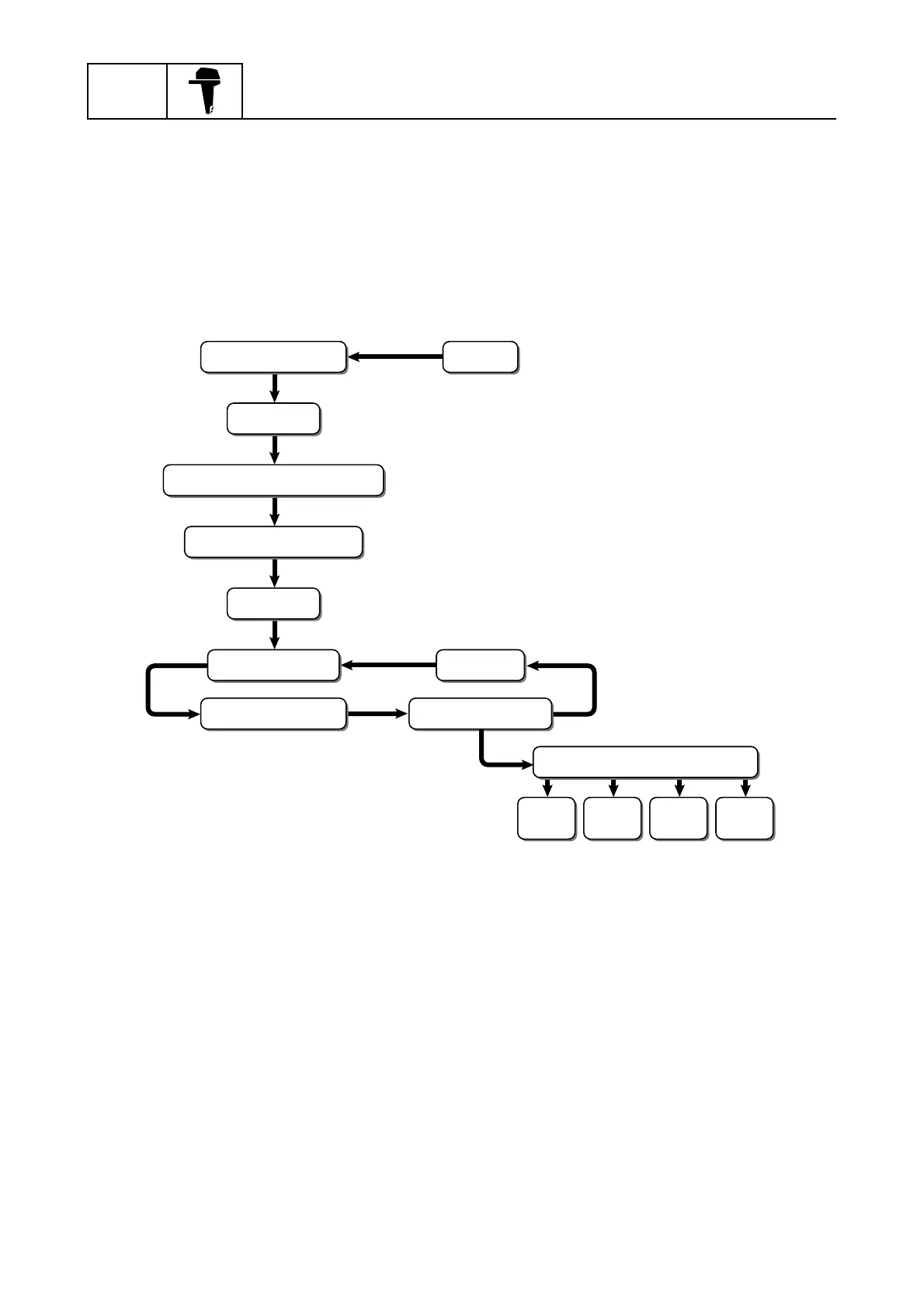

S6C11130
Fuel filter (Optional) Fuel tank
Fuel cooler
Pressure regulator
Primer pump
Fuel filter with water separator
Fuel pump (Mechanical)
Fuel filter
Vapor separator
Electric fuel pump
Fuel rail
Fuel
injector
#1
#2 #3 #4
Fuel
injector
Fuel
injector
Fuel
injector
