Yamaha F50F - Tilt Cylinder and Trim Cylinder

6C13G11
7-40
1
2
3
4
5
6
7
8
9

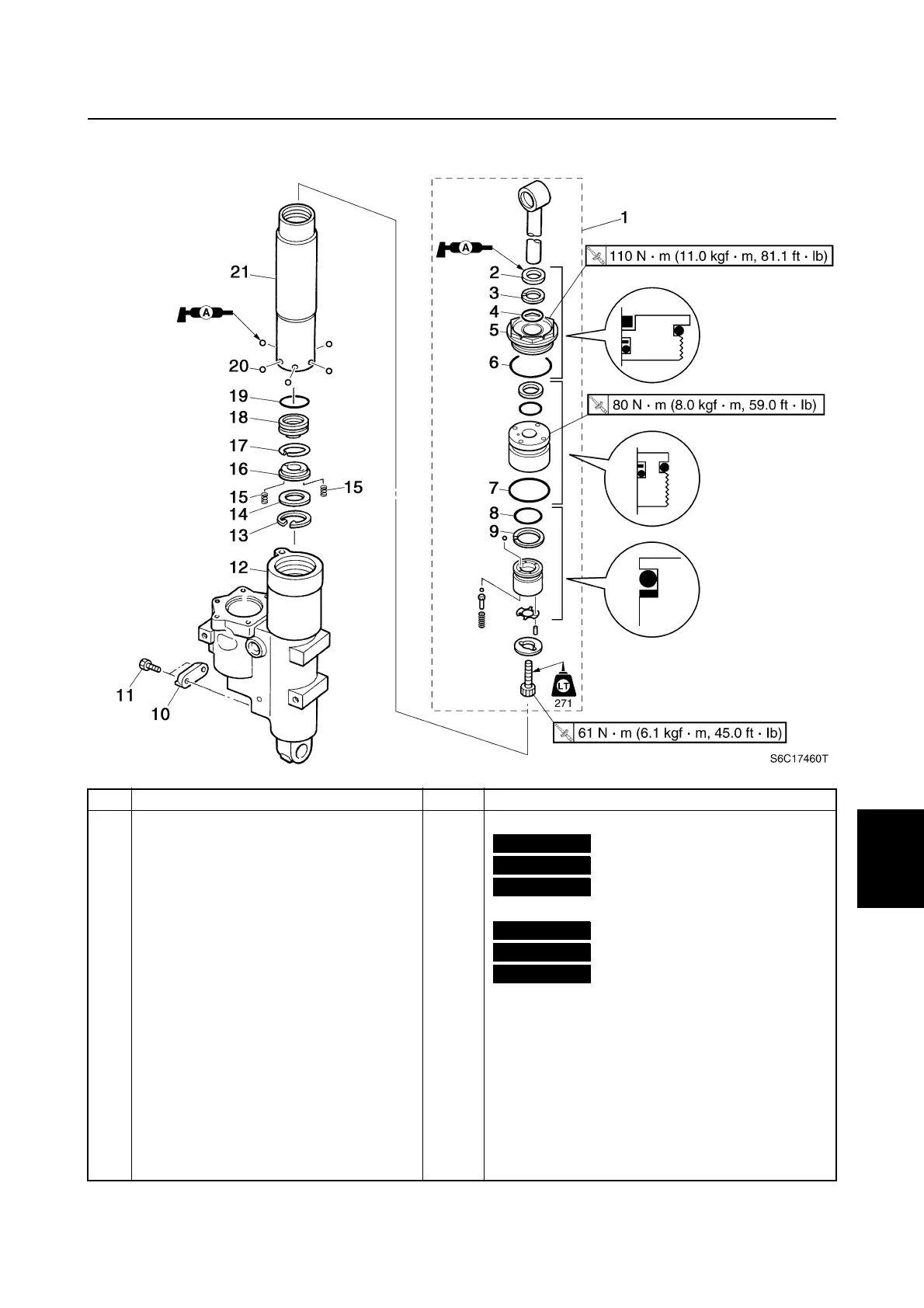

Tilt cylinder and trim cylinder
7
No. Part name Q’ty Remarks
1 Tilt piston assembly 1
2 Oil seal 1
Not reusable
3 Dust seal 1
Not reusable
4O-ring 1
Not reusable
5 Trim cylinder end screw 1
6O-ring 1
Not reusable
7O-ring 1
Not reusable
8O-ring 1
Not reusable
9 Backup ring 1
10 Anode 1
11 Bolt 1 M6
×
25 mm
12 Trim cylinder 1
13 Circlip 1
14 Plate 1
15 Spring 2
16 Cylinder base 1
17 Circlip 1
Gear pump / Tilt cylinder and trim cylinder
