6-43
6C13G11

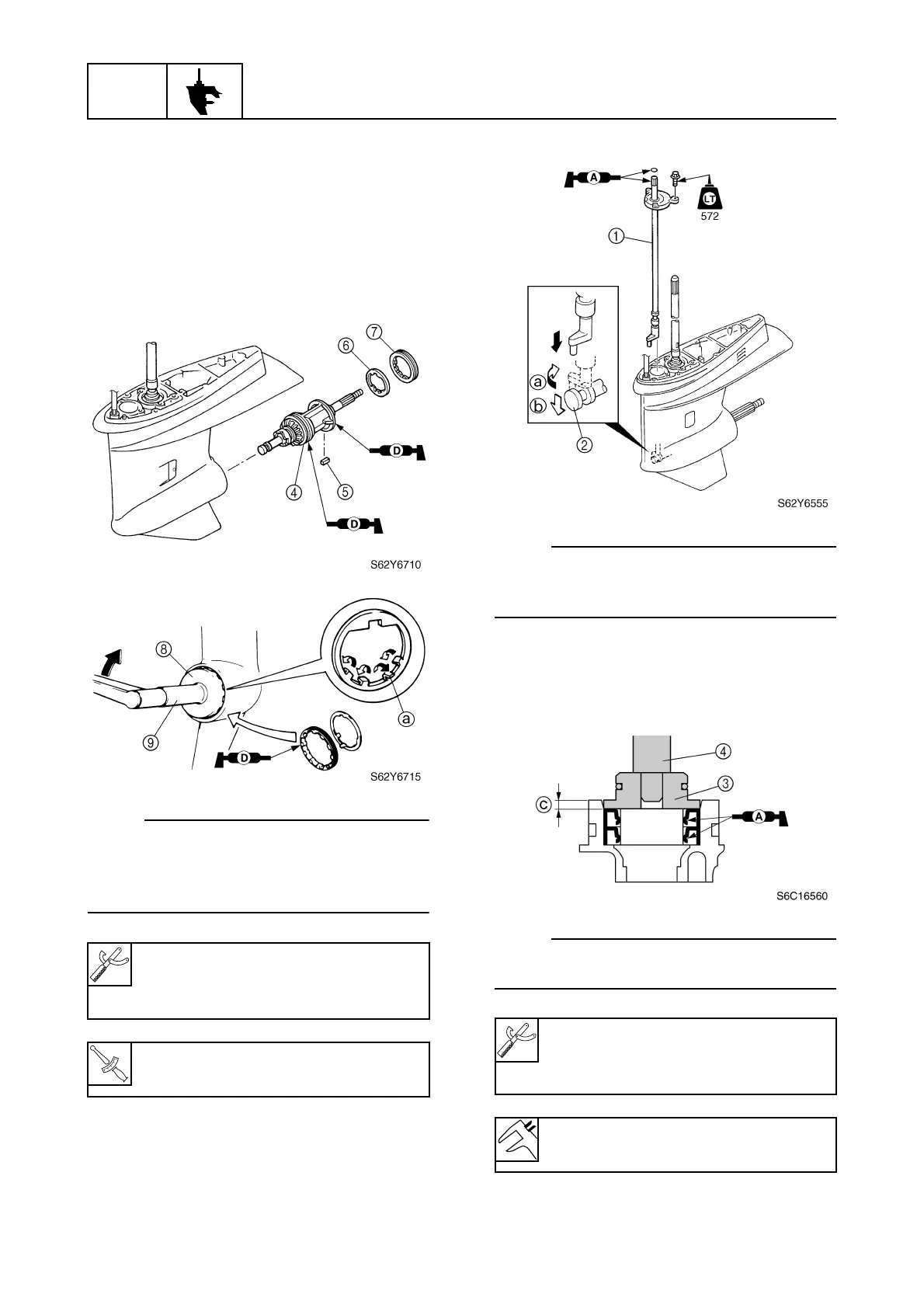

3. Install the propeller shaft housing assem-
bly
4
into the lower case, and then
install the straight key
5
, claw washer
6
, and ring nut
7
.
4. Tighten the ring nut to the specified
torque.
NOTE:
• To secure the ring nut, bend one tab
a
of
the claw washer into a slot in the ring nut.
• Bend all other tabs toward the propeller
shaft housing assembly.
Installing the water pump and shift
rod
1. Install the shift rod assembly
1
.
NOTE:
Install the shift rod assembly into the lower
case, turn it clockwise 90°
a
, and then push
it down
b
to connect it to the shift slider
2
.
2. Install new oil seals into the oil seal hous-
ing as shown.
NOTE:
Install an oil seal halfway into the oil seal
housing, then the other oil seal.
Ring nut wrench 3
8
: 90890-06511
Ring nut wrench extension
9
:
90890-06513
T
R
.
.
Ring nut
7
:
103 N·m (10.3 kgf·m, 76.0 ft·lb)
Needle bearing attachment
3
:
90890-06610
Driver rod L3
4
: 90890-06652
Depth
c
:
3.5–4.5 mm (0.14–0.18 in)
