Yamaha F50F - Removing the Clamp Brackets; Installing the Clamp Brackets; Adjusting the Trim Sensor

BRKT
Bracket unit
7-27
6C13G11

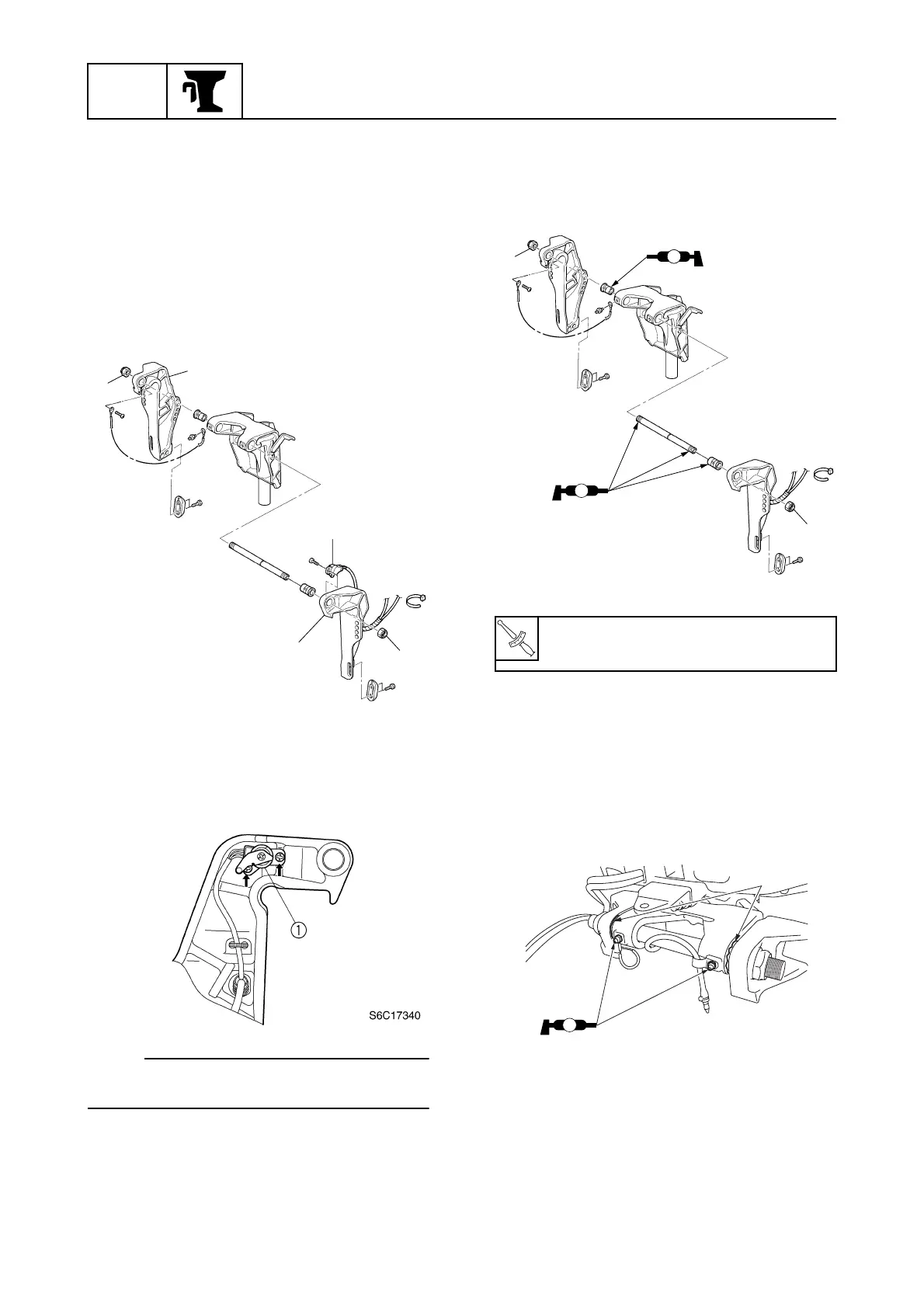

Removing the clamp brackets
1. Remove the power trim and tilt or hydro
tilt. For removal procedure, see “Remov-
ing the power trim and tilt unit/hydro tilt
unit.”
2. Loosen the self-locking nuts
1
, and then
remove clamp brackets
2
and
3
.
3. Remove the trim sensor
4
.
Installing the clamp brackets
1. Install the trim sensor
1
onto the port
clamp bracket.
NOTE:
Adjust the trim sensor after installing the
power trim and tilt.
2. Assemble the clamp brackets and the
swivel bracket by installing the self-lock-
ing nuts
2
, then tightening them to the
specified torque.
3. Install the power trim and tilt or hydro tilt.
For installation procedure, see “Installing
the power trim and tilt unit/hydro unit.”
4. Inject grease into both grease nipples
until grease comes out from the bushings
a
.
Adjusting the trim sensor
1. Fully tilt the outboard motor up, and then
support it with the tilt stop lever
1
.
S6C17330
1
2
3
4
1
T
R
.
.
Self-locking nut
2
:
22 N·m (2.2 kgf·m, 16.2 ft·lb)
S6C17350
2
2
AA
AA
AA
a
S6C17360
