Yamaha F50F - Starboard View

ELEC
Electrical systems
– +
8-5
6C13G11

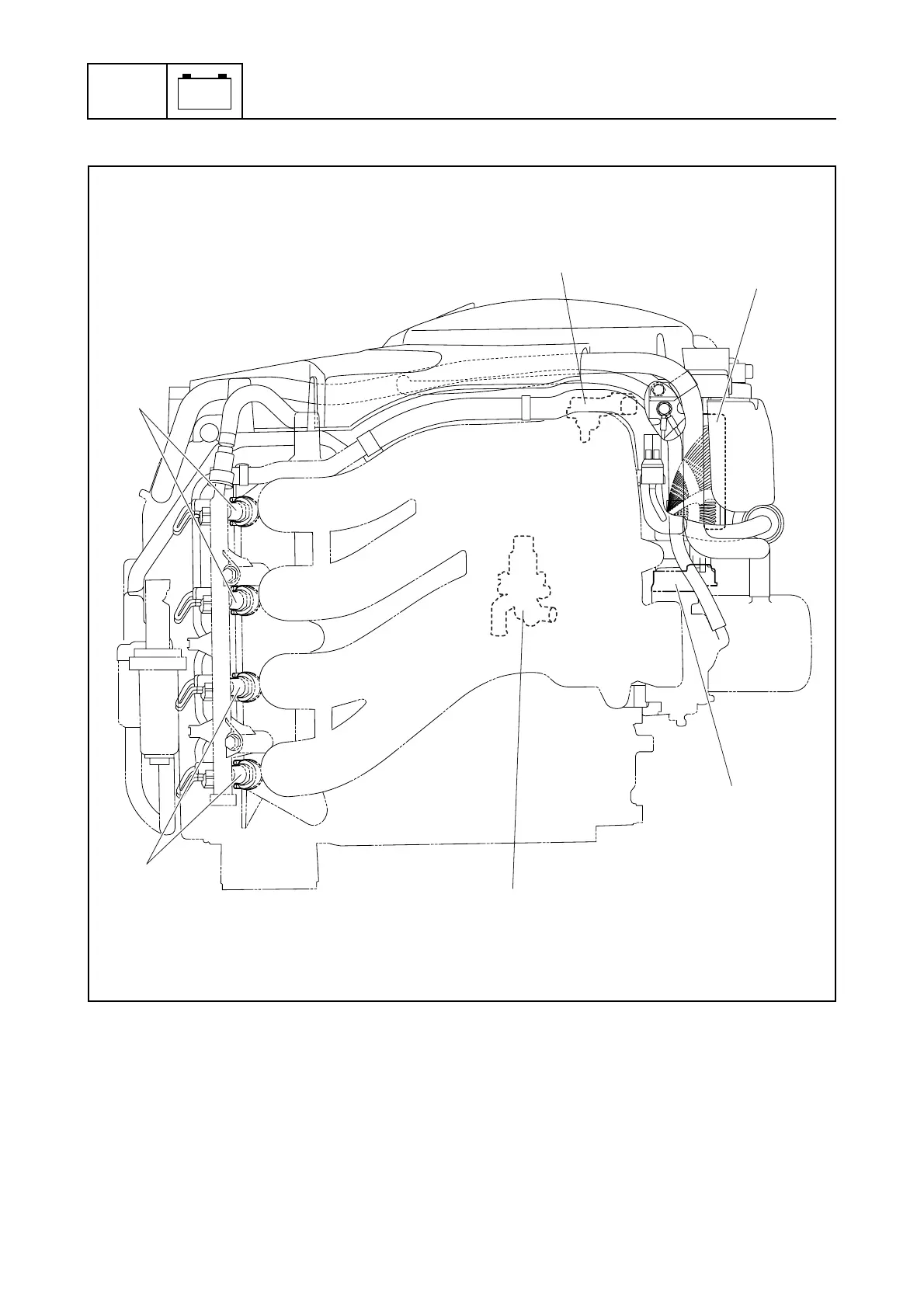

Starboard view
1
Fuel injector
2
ECM
3
Throttle position sensor
4
Idle speed control
5
Sensor assembly (intake air temperature and
intake air pressure)
S6C18180
1
1
2
3
5
4
