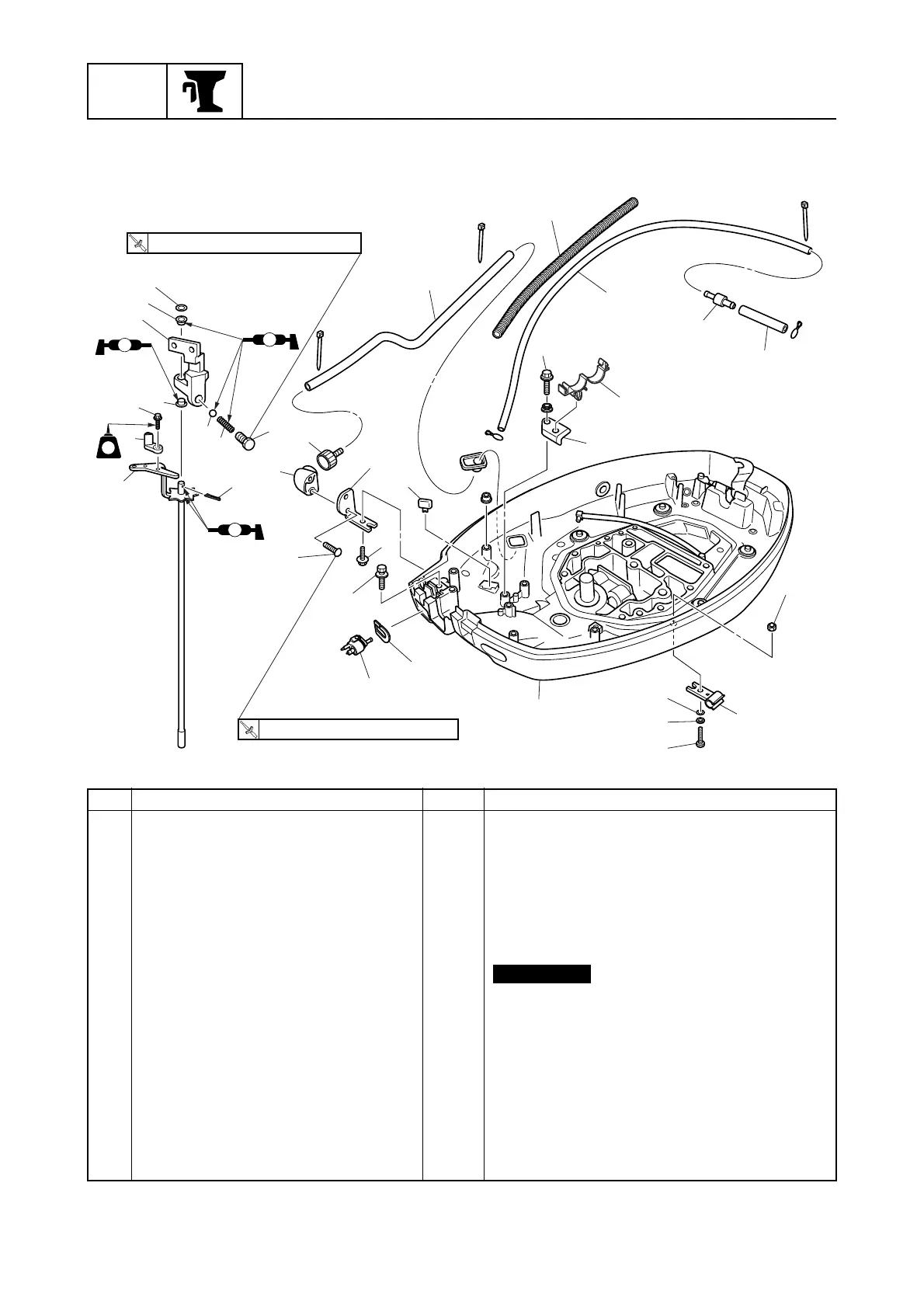

Yamaha F50F - Bottom Cowling

BRKT
Bracket unit
7-9
6C13G11
Bottom cowling
7
No. Part name Q’ty Remarks
1 Washer 1
2 Bushing 1
3Bracket 1
4 Bushing 1
5Bolt 1 M5
×
14 mm
6 Shift rod 1
7 Bushing 1
8 Cotter pin 1
Not reusable
9Bolt 1
10 Spring 1
11 Ball 1
12 Flushing hose 1
13 Hose joint 1
14 Adapter 1
15 Screw 2 ø6
×
19 mm
16 Stay 1
17 Bolt 1 M6
×
15 mm
S6C17060
T
R
.
.
2 N
·
m (0.2 kgf
·
m, 1.5 ft
·
Ib)
AA
AA
1
2
3
4
5
7
AA
6
8
9
10
11
12
13
14
16
15
17
18
19
20
21
22
24
25
23
27
33
32
34
31
30
29
28
26
T
R
.
.
18 N
·
m (1.8 kgf
·
m, 13.3 ft
·
Ib)
LT
242
